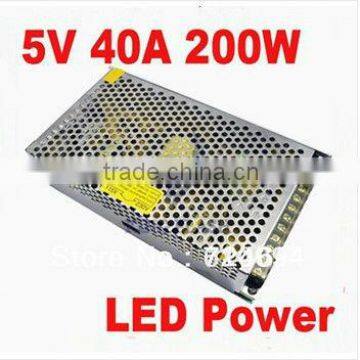

5V 40A CE ROHS UL led display screen ac/dc power supply

Specifications

Technical parameters

High reliability
Built-in EMI filter
Low output ripple&noise
Protections:Over load/Short circuit/Over voltage/Over temp
Approvals:CE CCC
Forced air cooling by Built-in DC fan
2 years warranty

AC input voltage range-------------------88-132VAC/176-264VAC selected by switch
Input frequency---------------------------------47-63Hz
AC inrush current--------------------------------Cold start,60A/230VAC
DC adjustment range-----------------------------±10% rated output voltage
Line regulation(full load)------------------------≤0.5%
Output over load protection-------110%-150% fold back current limiting, auto-recovery
Rise,hold up time--------------------50mS,20mS at full load(typical)
Withstand voltage-------I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min
Working temperature----- -10~+40°C@100%,+60°C@60% load
Storage temperature----- -20°C~+85°C,20%~95%RH(non condensing)
Safety standards------Design refer to GB4943,UL60950-1,EN60950-1
EMC standards------- Design refer to GB9254,EN55022 class A
Cooling method---------------------Forced air cooling by Built-in DC fan

More typs

5V 10A

5V 12A

5V 30A

5V 40A

5V 50A

12V 4.2A

12V 5A

12V 8.4A

12V 12.5A

12V 29A

24V 2.1A

24V 2.5A

24V 4.5A

24V 6.5A
24V 14.6A

Pictures / photos

P.S.

If you want some samples, please go into our Aliexpress store and buy them online.

Thank you
