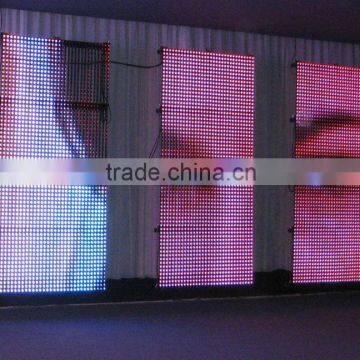

P16mm indoor outdoor full color background LED strip curtain strip LED curtain dislay

Model

P16 Curtain LED Display Screen

NO.

Items

Specifications

1

Pixel Pitch(MM)

16

2

Pixel Composition

SMD3in1

3

LED Encapsulation Type

SMD5050

4

LED Chip Sizes

12+13+13(RGB) Epistar + Silan + Nicha + Opto

5

Pixel Density(Dots/M2)

3096

6

Module Size(MM)

512 x 512

7

Module Resolution(Dots)

32 x 32

8

Cabinet Size(MM)

512 x 512

9

Cabinet Resolution(Dots)

32 x 32

10

Maximum Brightness

More than 12000cd/sqm

11

Before Dot to Dot Correction

More than 8500cd/sqm

12

After Dot to Dot Correction

More than 7500cd/sqm

13

Brightness Adjustment Range

Manually, Auto Stepless Continuous Adjustment, 14 levels Adjustment without Gray Scale Loss

14

Color Temperature Adjustable

3200K - 10000K

15

Best View Distance(M)

10m - 180m

16

Horizontal View Angle

120 deg

17

Vertical View Angle

60 deg

18

Signal Processing

16bit

19

Control Mode

Synchronization

20

Driving Mode

Static Constant Current

21

Contrast

3000:1

22

Video Frame Frequency

More than 60HZ

23

Refresh Rate

More than 3000HZ

24

Lifetime

100000 Hours

25

Maximum Power Consumption

Less than 200 w

26

Average Power Consumption

Less than 130 w

27

Cabinet Weight(without Steel Structure)

20 Kg

28

Compatible Signals(with video processor)

X Composite, X Component, RGB,SDI,HDSDI,DVI,AV, S-Video, VGA, HDMI, DP

29

Working Voltage

100-240V/AC 50/60HZ

30

Environment Temperature

–20 deg / +60 deg

31

Storage Temperature

–40 deg / +60 deg

32

IP Protection Rate

Front IP68, Rear IP65

33

Screen Surface Evenness

Less than 0.5mm

34

Working Humidity

10-99 percent

35

Storage Humidity

10-99 percent

36

Malfunction Dot Rate

Less than 0.0001

37

Display Screen Signals

RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION

38

Wind Resistance

Level 12

39

Shock Resistance

Level 8
