100m,200m,300m,650m, 1000m Borehole Drilling Equipment
- shenzhen shanghai guangzhou
 - T/T

You May Like
Product Details
| Condition | New | Type | Core Drilling Rig | |
| Power Type | Diesel | Place of Origin | Hunan, China | |
| Brand Name | FLYDISC | Model Number | HGY-1000 | |
| Usage | Coal | Voltage | 220V | |
| Power(W) | 41 | Dimension(L*W*H) | 2400*1020*1756 | |
| Weight | 1720 | Certification | CE | |
| Warranty | half a year | After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
borehole drilling equipment1,drilling depth:100m-1000m,Dia.150mm (46~325mm)
2, for coal mining, ore mining exploration
Borehole drilling equipment
Brief introduction of company
1.50 years professional manufacture
2. Certificate: ISO9001:2008
3. Export to: Africa, the Middle East, South America, Asia,
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.
Features of Water Well Drilling Rig Small Hole Diameter HGY-1000 :
1) Compact in structure and light in weight.
2) High reliability, good performance and durability
3) Common auto parts, such as clutch and declutch structure, transmission case and shifting structure.
4) Easy operation and high efficiency with synchronizer for shifting while the rig is running.
5) Suitable to wide range of rotation inner dia.Φ95mm
6) Be attached to the tower.
Use of Water Well Drilling Rig Small Hole Diameter HGY-1000 :
for geotechnical investigation, exploring, prospecting, water well drilling;Widely used in the construction of the projects e.g. prospection, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploring, large diameter boring pile and small diameter diamond core deep hole drilling, etc.
Technological Data of Drilling Rigs:
Model  | HGY-1000 Water Well Drilling Rig  |
Drilling depth( m)  | 1000  |
Spindle speed( r/min)  | Positive rotation rate: 51 93 160 246 350 149 268 463 710 1011 Reverse rotation rate: 57 164  |
Spindle stroke(mm)  | 600  |
Lifting power max( KN)  | 80  |
Driving force max(KN)  | 60  |
Spindle output torque max(N.M)  | 5055  |
Spindle hole diameter( mm)  | Φ95  |
Lifting speed( m/s)  | 0.44 0.80 1.38 2.12 3.02  |
Lifting capacity(single) max(KN)  | 35  |
Diameter & Length of drum(m)  | Φ15*100  |
Movable cylinder stroke (mm)  | 400(+-10)  |
Max distance from hole (mm)  | 250  |
Gear oil pump model  | CB-F32C-FL  |
Nominal displacement( ml/r)  | 32  |
Nominal pressure( MPa)  | 16  |
Oil pump nominal rotation velocity(r/min)  | 1800  |
Electromotor model  | YB200L-4  |
Power( kw)  | 30  |
Diesel engine model  | K4100ZD  |
Power( kw)  | 36  |
Speed( r/min)  | 1800  |
Weight(power unit excepted)(Kg)  | 1720  |
Overall dimensions(mm)  | 2400*1020*1765  |

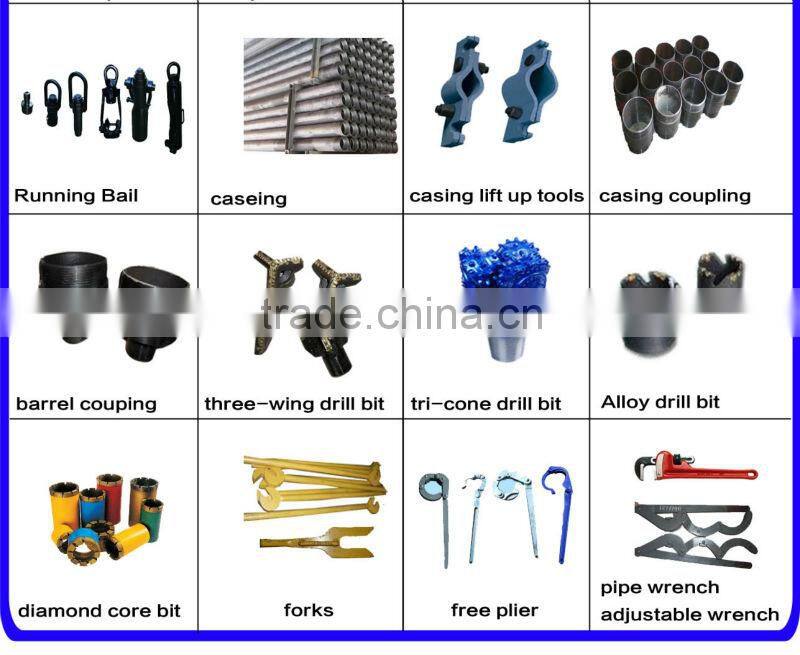

The drill tools for exploration
Drill tools for exploration wireline
How to install this rig? How to operate this rig?
Don't worry, buy our products, we will give you professional guidance.
We are a has produced drilling equipments for more than 50 years. We are a
Professional manufacturer.
If this rig is right for you,don't hesitate to contact us immediately.
If not, it does't matter, email to us and tell us which rig do you want, we will reply to you immediately respond to you and recommended right drilling rig for you.
Don't hesitate, email to us now. You will get unexpected results !
