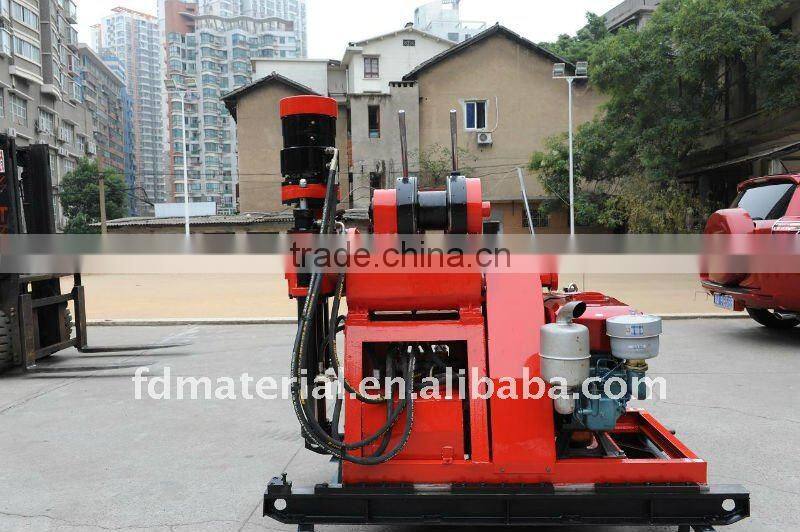

HGY-650 Mine Drilling Rig

FOB Price

US$ 1 - 2 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, Core Drilling Rig, Other Watering & Irrigation
Power Type	Diesel	Place of Origin	Hunan, China
Brand Name	FLYDISC	Model Number	HGY-650
Usage	Coal	Voltage	220v
Power(W)	36kw	Dimension(LWH)	240010201700
Weight	1550kg	Certification	CE/ISO9001:2008
Warranty	6 months	After-sales Service Provided	Overseas service center available

Mine Drilling Rig
1,drilling depth:650m
2,Hydraulic chuck drilling rig
3,Safe and reliable operations

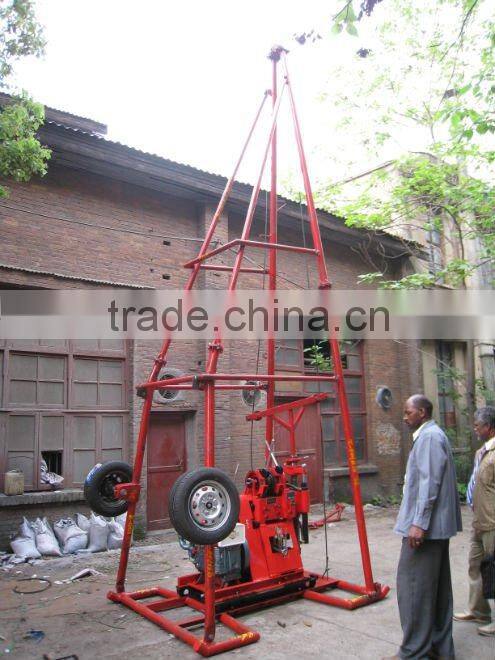

4, Attached to tower

Drilling Rig: HGY-650

Features of Drilling Rig: HGY-650:

1) Compact in structure and light in weight.

2) High reliability, good performance and durability.

3) Common auto parts, such as clutch, transmission case and shifting structure.

4) Safe and reliable operations with synchronizer for shifting while the rig is running.

5) Be attached to the tower.

Technological Data of Drilling Rig: HGY-650

Model	HGY-650 Drilling Rig
Drilling depth( m)	650
Spindle speed( r/min)	Positive rotation rate: 65 117 201 309 440 187 338 582 894 1273 Reverse rotation rate: 72 207
Spindle stroke(mm)	600
Lifting power max( KN)	80
Driving force max(KN)	60
Spindle output torque max(N.M)	3435
Spindle hole diameter( mm)	Φ65/Φ95
Lifting speed( m/s)	0.43 0.78 1.35 2.08 2.95
Lifting capacity(single) max(KN)	33
Diameter & Length of drum(m)	Φ15*90
Movable cylinder stroke (mm)	400(+-10)
Max distance from hole (mm)	250
Gear oil pump model	CB-F32C-FL
Nominal displacement( ml/r)	32
Nominal pressure( MPa)	16
Oil pump nominal rotation velocity(r/min)	1800
Electromotor model	YB200L-4
ElectromotorPower( kw)	30
Diesel engine model	K410ZD
Power( kw)	36
Speed( r/min)	1800
Weight(power unit excepted)(Kg)	1550
Overall dimensions(mm)	240010201700
