HGY-1500A Geotechnical Drilling Rig
- shenzhen shanghai guangzhou
- T/T
You May Like
Product Details
| Condition | New | Type | Other, Core Drilling Rig, Drilling Rig | |
| Power Type | Diesel | Place of Origin | Hunan, China | |
| Brand Name | FLYDISC | Model Number | HGY-1500A | |
| Usage | Coal | Voltage | 220v | |
| Power(W) | 56kw | Dimension(L*W*H) | 2460*1150*1888 | |
| Weight | 2600kg | Certification | ce/ISO9001:2008 | |
| Warranty | 6 months | After-sales Service Provided | Overseas service center available |
Product Description

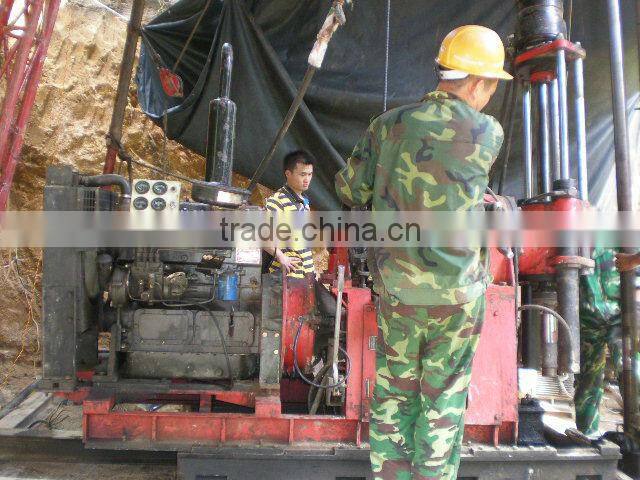

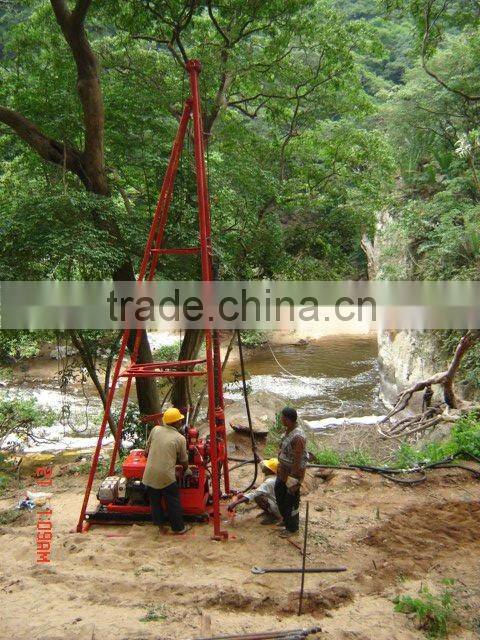

HGY-1500A geotechnical drilling rig
Brief introduction:
1.50 years professional manufacture
2. Certificate: ISO9001:2008
3. Export to: Africa, the Middle East, South America, Asia,
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.
Features of HGY-1500A geotechnical drilling rig
1) Wide range of suitable rotary speed to meet various needs.
2) Adopted from the 'jiefang"CA151 auto parts, such as clutch and gear-Box.
3) Reasonable design of the transmission and shift on the principle of bevel gear.
4) A good grip with the disk spring on the Chuck.
5) Convenient to lift up and down the tower, all the work are performed by the hydraulic system.
Use ofHGY-1500A geotechnical drilling rig : for geotechnical investigation, exploring, prospecting, water well drilling;
Widely used in the construction of the projects e.g. prospection, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploring, large diameter boring pile and small diameter diamond core deep hole drilling, etc.
Technological Data of HGY-1500A geotechnical drilling rig
Model | HGY-1500A geotechnical drilling rig |
Drilling depth( m) | 1500~1200 |
Rod diameter( mm) | Φ42~Φ50 |
Spindle speed( r/min) | Positive rotation rate: 54 86 145 219 310 378 415 570 808 1081 Reverse rotation rate: 58 152 |
Spindle stroke(mm) | 600 |
Lifting power max( KN) | 80 |
Driving force max(KN) | 60 |
Spindle output torque max(N.M) | 7150 |
Spindle hole diameter( mm) | Φ95 |
Cable diameter(mm) | 17.5 |
Drum circumferential velocity( 9 layers) | 130 |
Lifting speed( m/s) | 0.51 0.81 1.37 2.06 2.92 3.91 |
Lifting capacity(single) max(KN) | 40 |
Movable cylinder stroke (mm) | 400 |
Gear oil pump model | 2CB-FA32/10-FL |
Nominal displacement( ml/r) | 40 |
Nominal pressure( Mpa) | 14 |
Electromotor model | Y225S-4 or Y225M-4 |
Power( kw) | 37 or 45 |
Speed( r/min) | 1480 |
Diesel engine model | R4105ZD1 |
Power( kw) | 56 |
Speed( r/min) | 2800 |
Diesel engine weight(Kg) | 385 |
Overall dimensions(mm) | 2460*1150*1888 |
Weight(power unit excepted)(Kg) | 2600 |
Head angle range | 0~360 |
