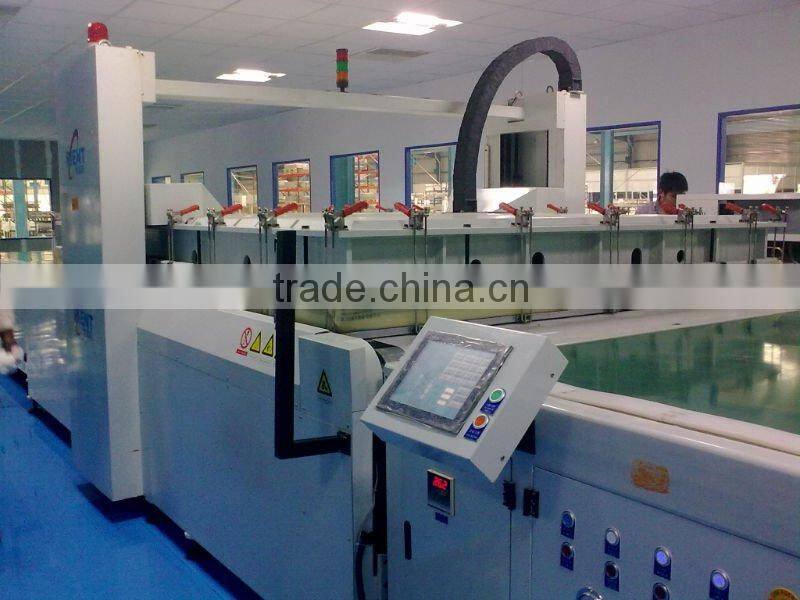

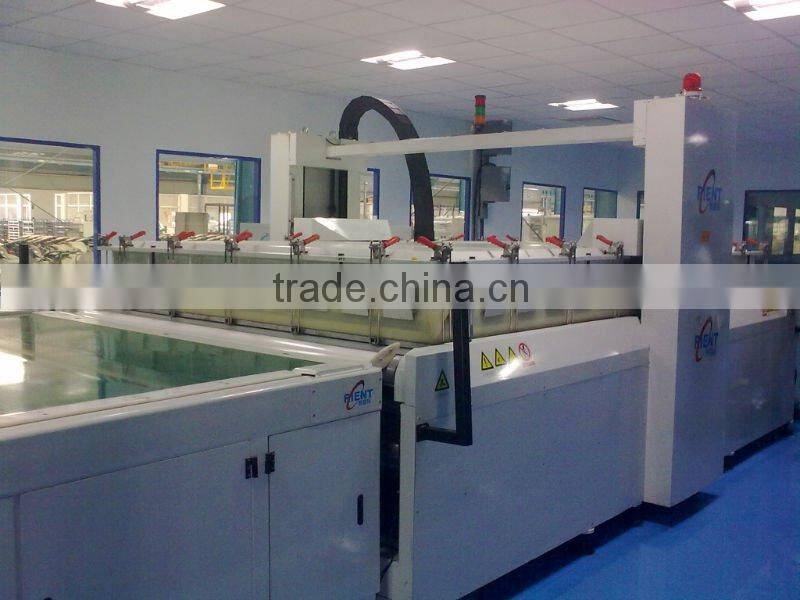

Solar Photovoltaic Module Laminator

FOB Price

US$ 100,000 - 150,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China		Brand Name	ORIENT
Model Number	TCZY-G3-9		Type	Other, PV Module Manufacturing Equipment

Product: solar photovoltaic module laminator

Advantage:

1. The largest laminator manufacturer in China, with more 10 years manufacturing experience

2. European standard performance with resonable asia price;

3. Good communication sales team and after sales team;

4. India Major market, have service team in Hyderabad India all the year time.

5. Large market share in India, major customers like Moserbaer, Aplex, Lanco, HBL, Sunfest and so on

Parameters:

Parameters
Total Power	65KW	Power Supply	AC380V 3 phase 5 Wires
Heating Mode	Oil Heating	Temperature Control	Intelligent PLC Control
Laminating Time	2-4 Minutes	Environmental Temperature	0°C-50°C
Temperature Accuracy	±1°C	Temperature Uniformity	±3°C
Temperature Range	30°C-180°C	Maximum Working Temperature	180°C
Pumping Speed	70 L/S	Air Supply	0.6-1.0MPa
Height of Opening Lid	300 mm	Module Height	20 mm

Outstanding Feature for Laminator:

Outstanding Features
Heating Mode	1. Oil heating. Special steel structured heating platen, protected by patent. 2. Temperature distributing uniformly during heating process, within 3 °C 3.Products fabricated from this process passed international standards.
Loading unloading Mode	Loaded by conveyor chain, controlled at the same time with setting system. Automatic cleaning system for conveyor and heating platen to keep the operation smoothly. Loading, laminating and unloading happen simultaneously. Improve the efficiency of operation with reliable quality. There is place setting system for loading, laminating and unloading. The whole process is controlled automatically.
Control Mode	The equipment is controlled by PLC and Standard touch screen industrially. Interface both in Chinese and English. User-friendly with high efficiency. Stable operation process and high accuracy..
Laminating Process	Laminating Process is composed to Three Phases with various speed. The laminating pressure is adjustable: This technology leads international PV equipment field. Orient is the only one in China to use this advanced technology in laminating process. This technology improves the rate of finished modules.

Machine Pictures:

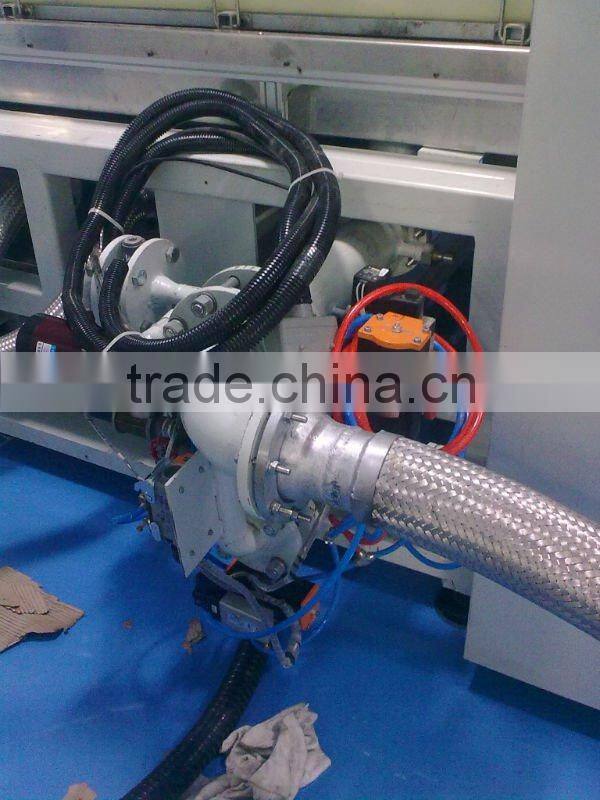

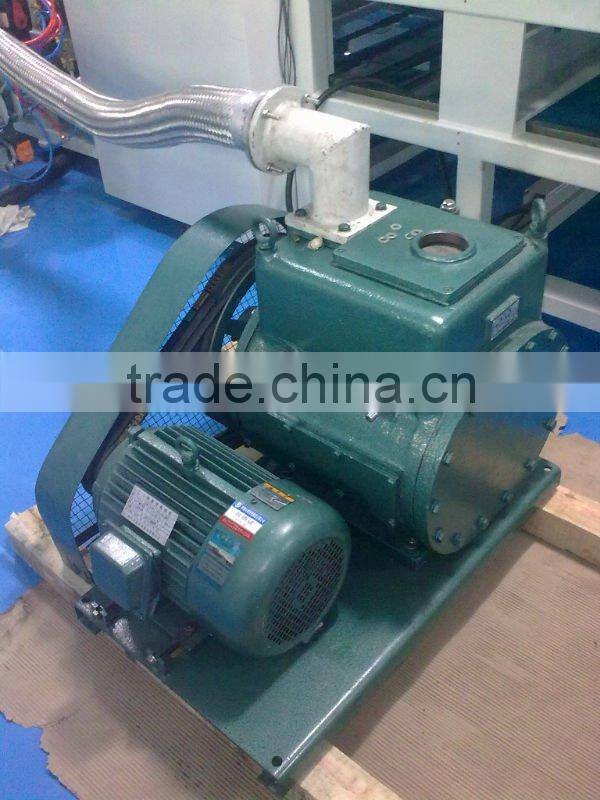

1. Vacuum Pump

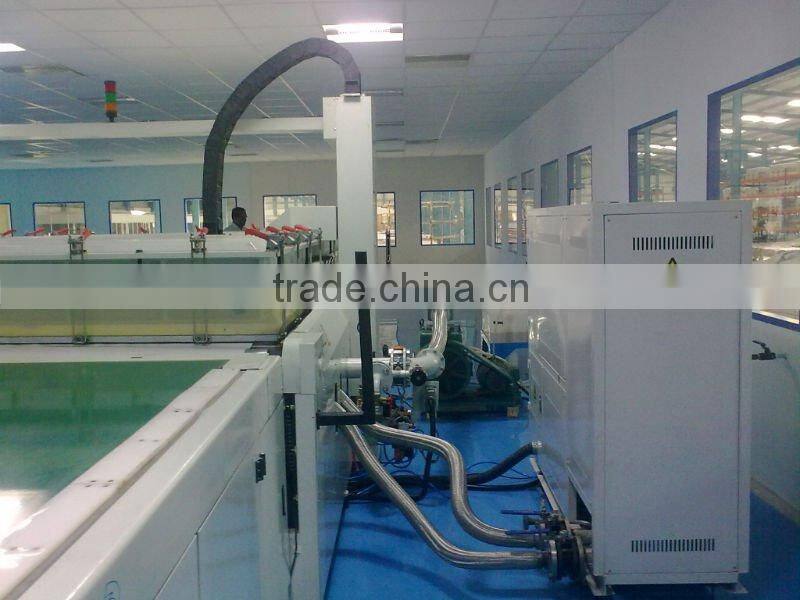

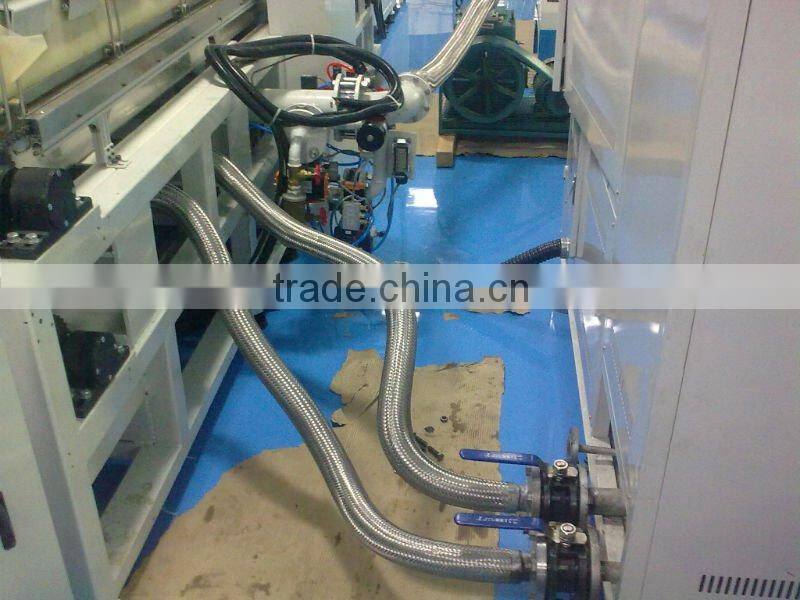

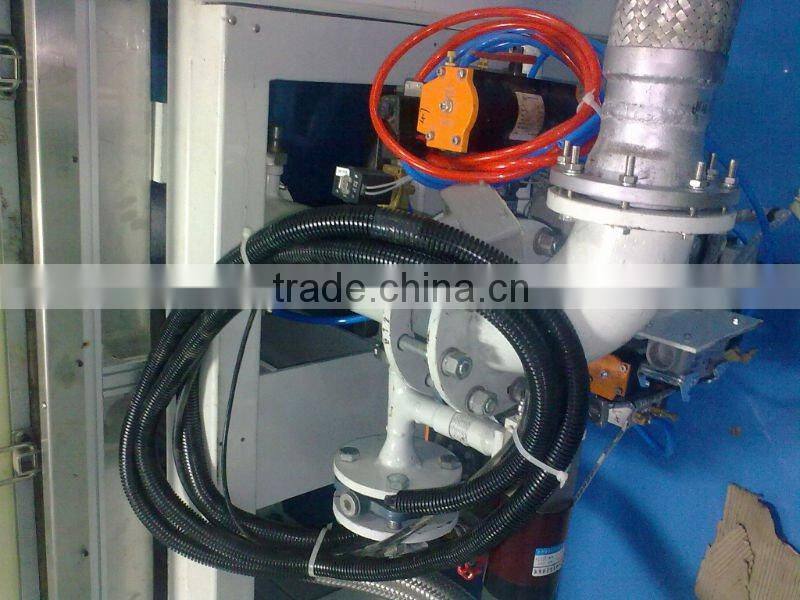

2. Pipe and tube

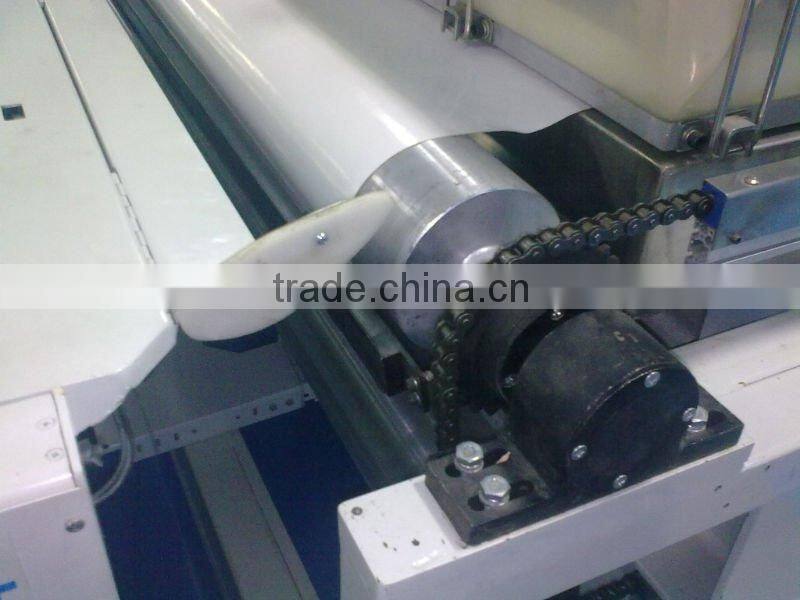

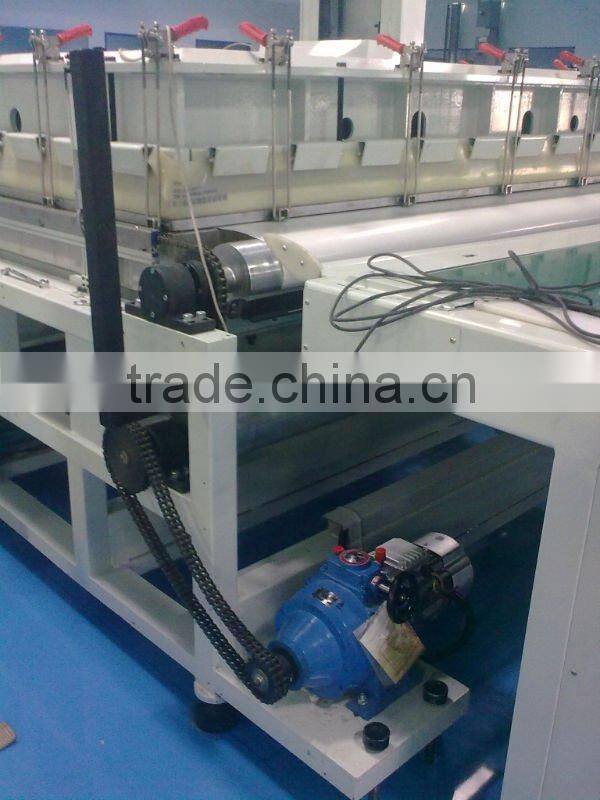

3. Driving Motor

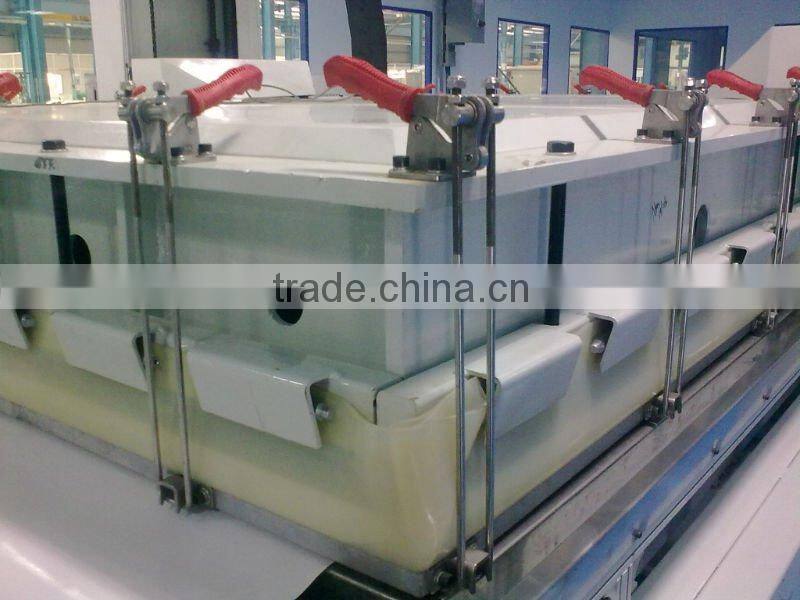

4. Laminating Plate

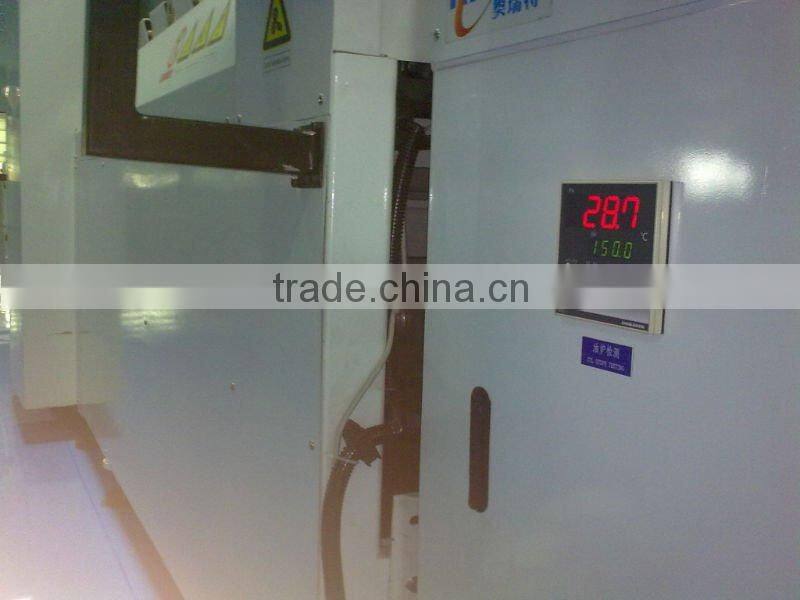

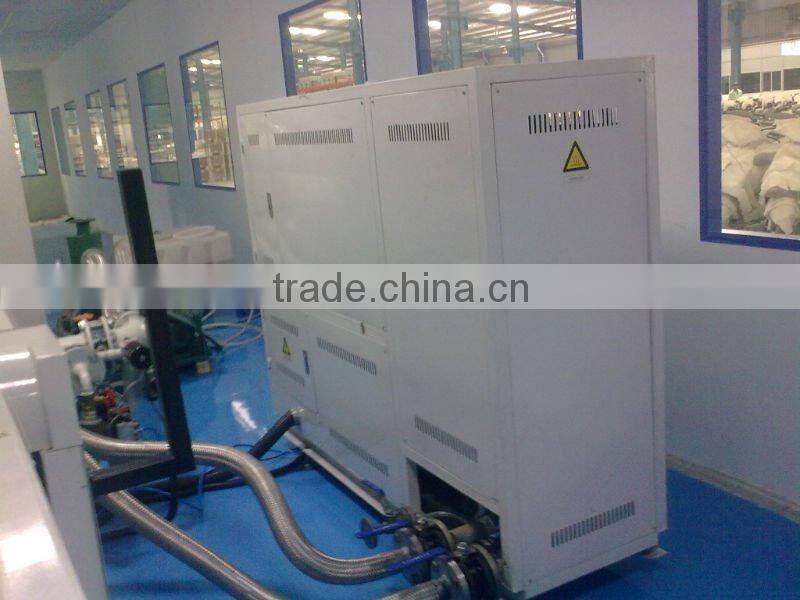

5. Heater

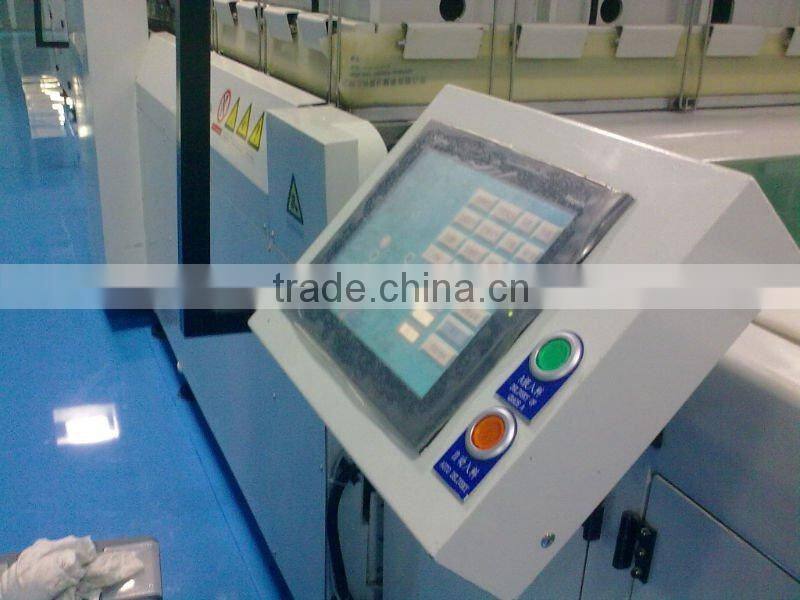

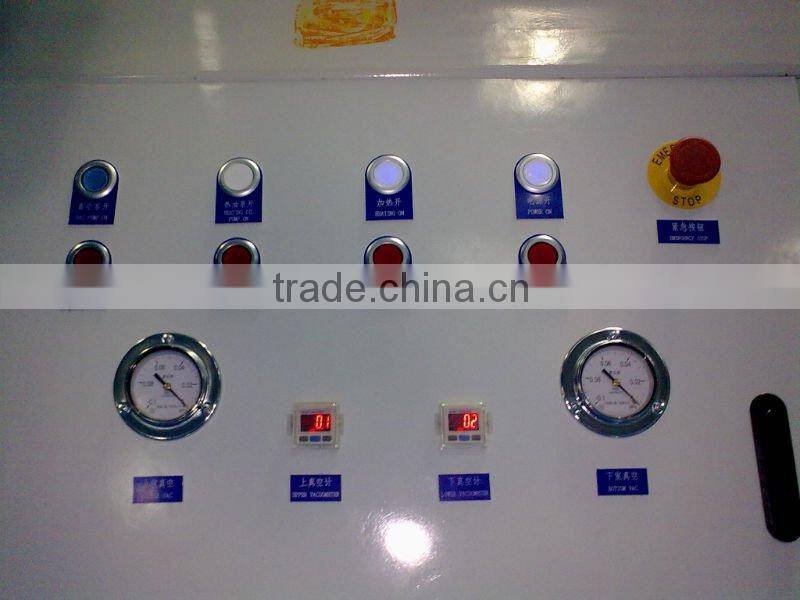

6. Control Panel

7. Wooden Case Package
