Home > Products > Tunnel UV Machine > TM-UV750L Screen Printing UV Drying Equipment for Offset Printing Quality Choice
TM-UV750L Screen Printing UV Drying Equipment for Offset Printing Quality Choice
- Shenzhen China
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Drying Oven | |
| Place of Origin | Guangdong, China | Brand Name | TAMPRINTER | |
| Model Number | TM-UV750L | Voltage | 3/380/50 | |
| Power(W) | 5.6*2 | Dimension(L*W*H) | 4000X980mmX1350mm | |
| Weight | 350kg | Certification | CE Certificate | |
| Warranty | 1 Year | After-sales Service Provided | Overseas third-party support available |
Product Description

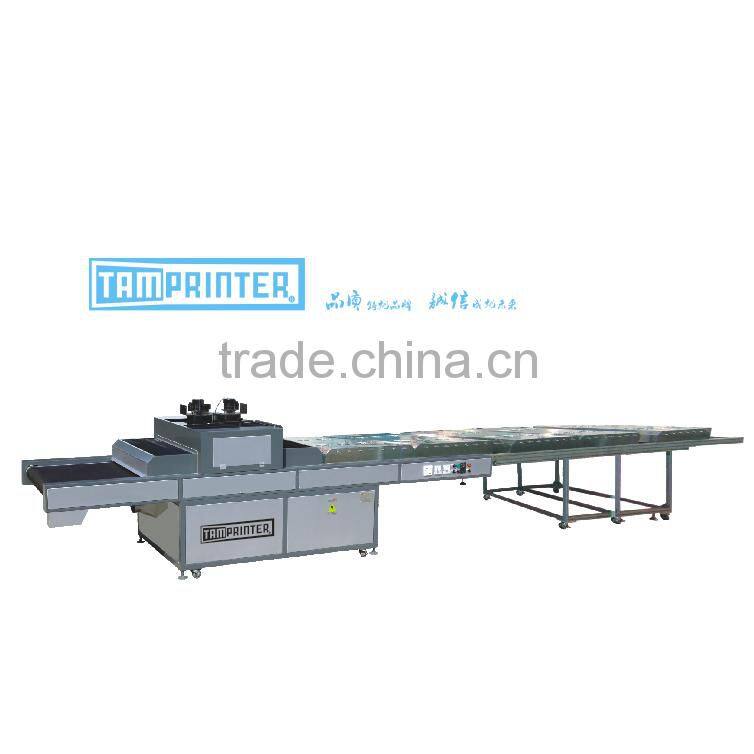

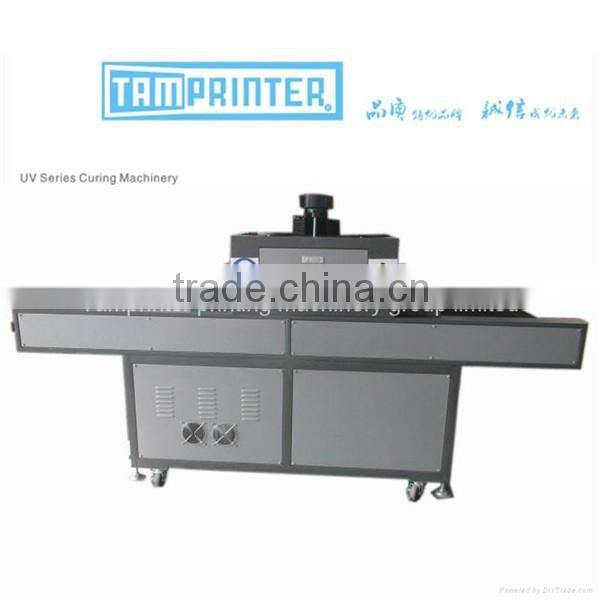

TM-UV750L Screen Printing UV Dryer Machine
Technicial Parameters
| Model No. | TM-UV750L |
| Conveyorbelt width(mm) | 750mm |
| UV light power(kw) | 5.6kw*2 |
| Conveyor speed(m/min) | 0-25m/min |
| Power (v/kw) | 380/12.5 |
| Dimensions(LXWXHmm) | 4000X980mmX1350mm |
| Weight | 350kg |
| TYPE | TM-UV400 | TM-UV750 | TM-UV900 | TM-UV1000 | TM-UV1200 |
| Convey belt width(mm) | 380 | 730 | 880 | 980 | 1180 |
| Effective range (mm) | 400 | 750 | 900 | 1000 | 1200 |
| Max thickness of cured (mm) | 40 | 40 | 40 | 40 | 40 |
| Conveying speed (m) | 2~20 | 2~20 | 2~20 | 0~25 | 2~20 |
| POWER(P/V/Hz) | 3/380/50 | 3/380/50 | 3/380/50 | 3/380/50 | 3/380/50 |
| UV lamp(KW*pcs) | 3 | 5.6*2 | 5.6*2 | 5.6*2 | 5.6*2 |
| Driving power(W) | 60 | 90 | 90 | 120 | 120 |
| Total power(KW) | 3.4 | 12.1 | 12 | 16.5 | 17 |
| SIZE(L*W*H) | 1700*700*1200 | 2550*1050*1450 | 2550*1200*1600 | 2550*1200*1600 | 4050*1460*1600 |
| WEIGHT(Kg) | 250 | 350 | 420 | 450 | 580 |
| lamp lengh | 826 | 1050 |
Application:
It is apply to the special effects such as wrinkle, frosted refraction gem crystal and convex oil on the bullion paperboard, metal, glass, plastic, and also the UV curing of the offset printing ink on the offset press production.
Features:
1. With Teflon or stainless steel net, transmit speed steady and can be adjusted.

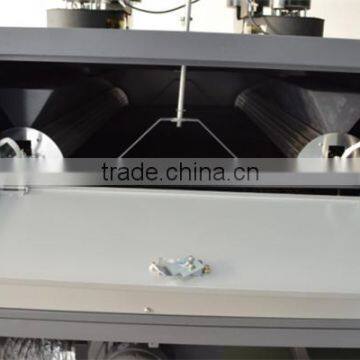

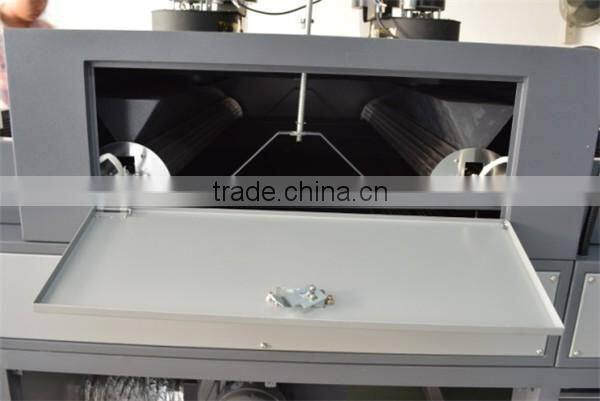

2. With two UV lighting tubes, can turn on the light according to the need.
3. Wink-dry make the surface of the stocks high hardness and rub resistance.
4. Tunneling-based make the whole machine light barrier good and without harm.

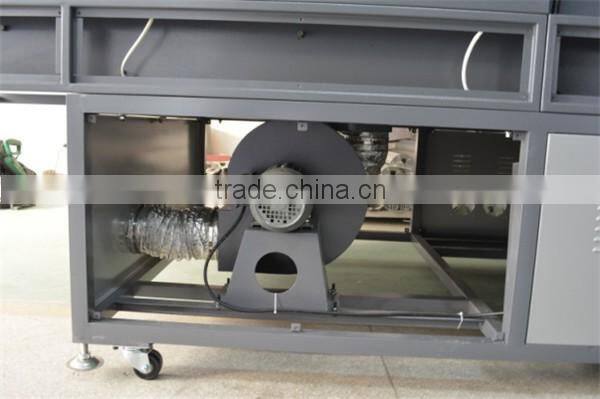

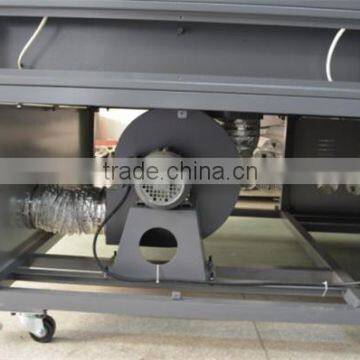

5. Equipped with powerful nether induced draughe system and big intake airway, can absorbs the stock on the mesh belthard. It can be used with production line and other equipment easily.

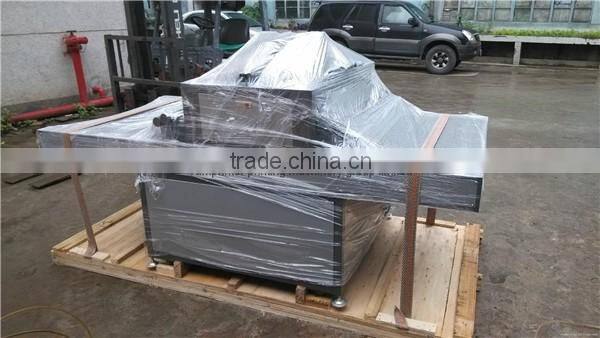

Packaging Detail: Plywood case
Delivery Detail: 1-2 weeks
Payment: T/T L/C Western Union
Price term: CIF/CFR/FOB/FCA/EXW
Minimum Order: 1 set
TM-UV400 UV curing machine
TM-UV1000L UV curing machine
The consumales
Tamprinter Printing Machinery Group Limited
As one of the most professional special printer supplier of Plastic Field in China,we have supplied OEM service for the domestic counterparts since 2003. OEM products have been achieved CE certification.
Due to business expansion, Tamprinter printing machinery limited International trade department have been separated from the parent company in March 2013.
Key products : Pad printer, Screen printer, UV curing machine, Heat transfer machine.
Advantages
1. All the electrical components and control system are from Germany and Japan, guarantee the stable quality of the print.
2. Multi-purpose microcomputer operating panel and touch screen operation can easily achieve man-machine dialogue.
3. As high quality steel frame structure and High temperature of the lacquer that bake, so that our printer is light and solid, beautiful and practical.
Market Area
More than 80 countries. Encluding Europe, the United States, Canada, Southeast Asia, the Middle East, etc. We cooperate with Omron, Emerson and Ruigao light, which are the world famous enterprises.
