Home > Products > Tunnel UV Machine > TM-UV-4000S3 400mm UV Curing Machine for bottles

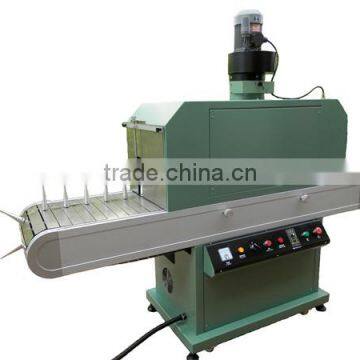

TM-UV-4000S3 400mm UV Curing Machine for bottles
- 50 Set / Sets per Month
- Shenzhen
- T/T Credit Card PayPal
You May Like
-
LC-UV-4000S1 Plastic Caps UV Curing Machine
-
LC-UV-4000s3 Tubing UV Curinging Machine
-
LC-UV-4000S2 Cylindrical Plastic Containers UV Dryer
-
TM-UV-100 Economic 3KW Portable UV Curing Machine
-
TM-LED100 4KG 3000 Hours LED UV Portable Curing Machine
-
Belt Width 1000mm Screen Printing UV Machine
Quality Choice
Product Details
| Brand Name | Tamprinter | Model Number | LC-UV-4000S3 | |
| Type | Other, flat/round surface UV drying | Certification | CE Certificate | |
| After-sales Service Provided | Overseas third-party support available | Warranty | 1 Year | |
| Weight | 353kg | Dimension(L*W*H) | 2100X750X1810mm (LXWXH) | |
| Voltage | 380V3Phaze 50Hz | Condition | New | |
| Power(W) | 5KW | Automatic Grade | Semi-Automatic |
Product Description
TM-UV-4000S2 Flame Treatment Machine UV Curing Machine
video link:
ttp://youtu.be/pSZfMFvkKxs

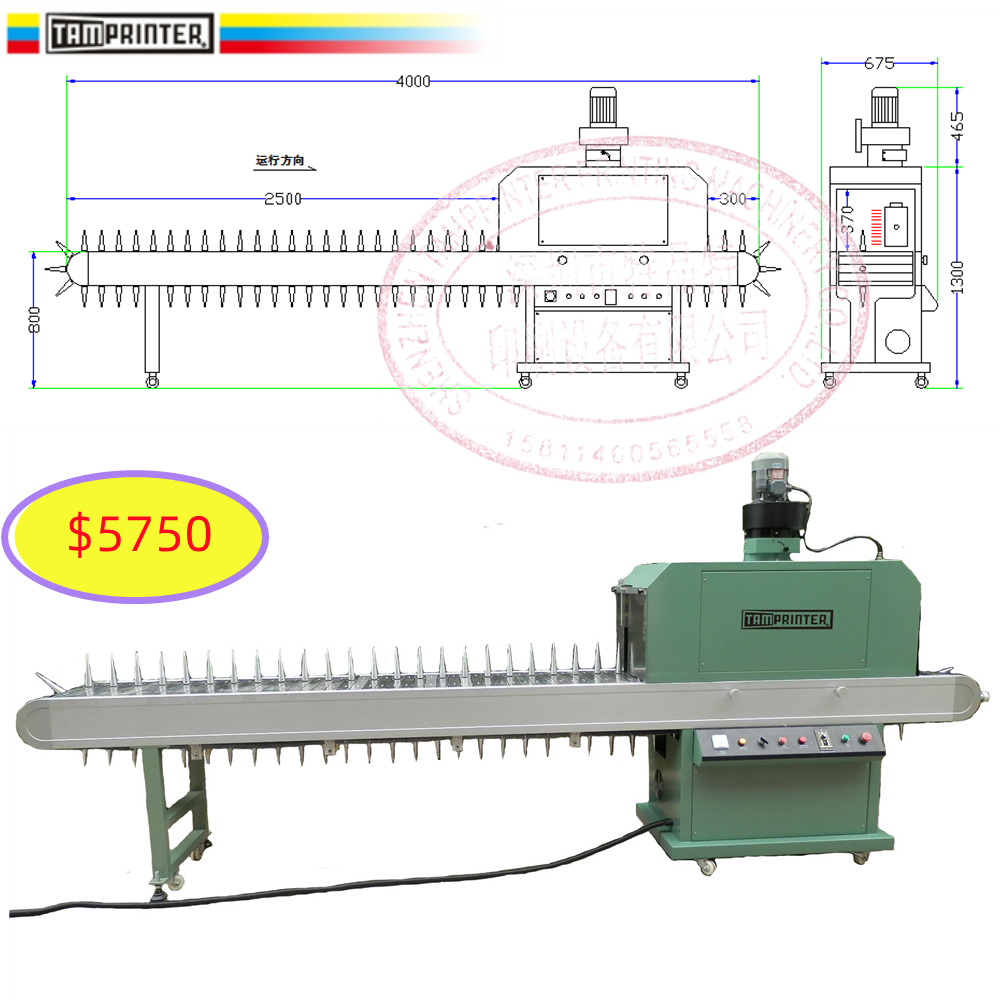

Specifications: | |
Max width of Work piece | 400mm |
Max height of Work piece | 320mm |
Conveyer size of Machine Inner | 400X120mm (WXH) |
Bottle mouth diameter | 12-24mm |
Conveyer size | 400mm |
Output | 1800~3000Pcs/Hr |
Conveyer transfer speed | 0-10m/min |
UV lamp power | 4KW |
General power | 5KW |
Power supply | AC 380V/ 50Hz, 3-Phase |
Machine dimension | 2100X750X1810mm (LXWXH) |
Machine weight | 353kg |
TM-UV-4000S3
Flat and Round UV Curing Machine
Application:
TM-UV-4000S3 Flat and Round UV Curing Machine is used for flat and round surfaces UV curing, it suite for bottle surface UV ink drying solid process and flat surface UV ink drying solid process.
Such as various of UV ink,UV adhesives,UV paint curing.
Features:
(1) With the high efficiency UV light, it can finish the UV curing quickly, the high level of UV light can be adjusted, and setting the right parameters for UV curing.
(2) LED display shows the conveyor running speed, convenient to process operation.
(3) The machine body adopts the extra-thick stainless steel for hardness and durable.
(4) UV lamp and transformers which are imported from United Kingdom that fit for special ventilation design, which can be max effectiveness.
(5) It suited for different UV curing process. This series of products is different with the traditional high-power, high-power UV equipment. In order to reduce the cost and improve output for our customer.
Packaging & Delivery
Packaging Detail: Wooden case
Delivery Time: Within 6 days after confirm payment
TM-UV-4000S1 Flat and Round Flame Treatment Machine UV Curing Machine for bottles
