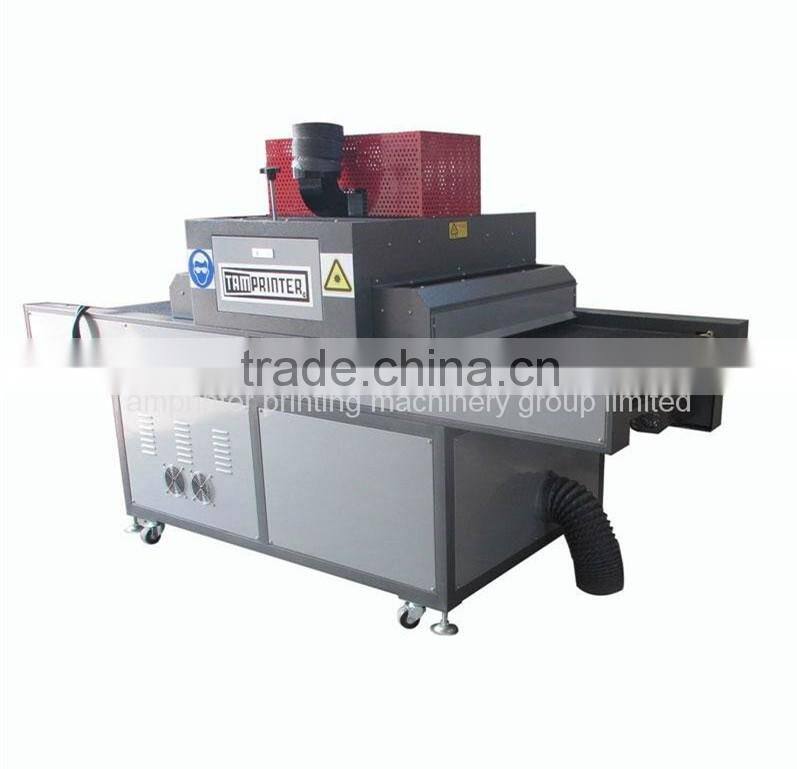

TM-UV400 UV Drying Machine
- Shenzhen
- T/T L/C Credit Card PayPal
You May Like
Product Details
| Condition | New | Application | Apparel, Beverage, Commodity, Other, Textiles, Apparel, Beverage, Commodity, Machinery & Hardware, Textiles | |
| Automatic Grade | Semi-Automatic | Driven Type | Electric | |
| Voltage | 3/380/50(P/V/Hz) | Power | 3.4 | |
| Packaging Type | Case | Packaging Material | Wood | |
| Place of Origin | Guangdong, China | Brand Name | Tamprinter | |
| Model Number | TM-UV400 | Dimension(L*W*H) | 1700*700*1200 | |
| Weight | 250 | Certification | CE Certificate | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
Model TM-UV400 UV drying machine /UV varnish machine is small Volume, easy carrying, favorable price and high quality.
Technical Parameters:
TYPE | TM-UV400 |
Convey belt width(mm) | 380 |
Effective range (mm) | 400 |
Max thickness of cured (mm) | 40 |
Conveying speed (m) | 2~20 |
POWER(P/V/Hz) | 3/380/50 |
UV lamp (KW/1pcs) | 3 kw |
Driving power (W) | 60 |
Total power (KW) | 3.4 |
SIZE (L*W*H) | 1700*700*1200 |
WEIGHT (Kg) | 250 |
Application:
This UV drying machine is widely used for the field of drying UV ink, UV coating for UV spray finishing, processing after paper's UV printing, UV glue, UV tests.
Function and feature:
1, Well-designed cooling system reduces the heat generated by the light source, so as to avoid high temperature leaving some products (such as paper, PVC film) affected and deformed.
2, Electronic variable speed, speed is stable, sensitivity is adjustable.
3, High quality light source, long operating life, it can start instantly and access to normal brightness quickly.
4, Good stability and good environmental adaptability. During the use, energy output evenly, and after the prolonged uses, there is no significant change in the spectral distribution.
5, Strong exhaust pump makes the article adsorbed on the conveyor belt, and difficult to drift and fall.
Free Fittings:
Manual and operating video

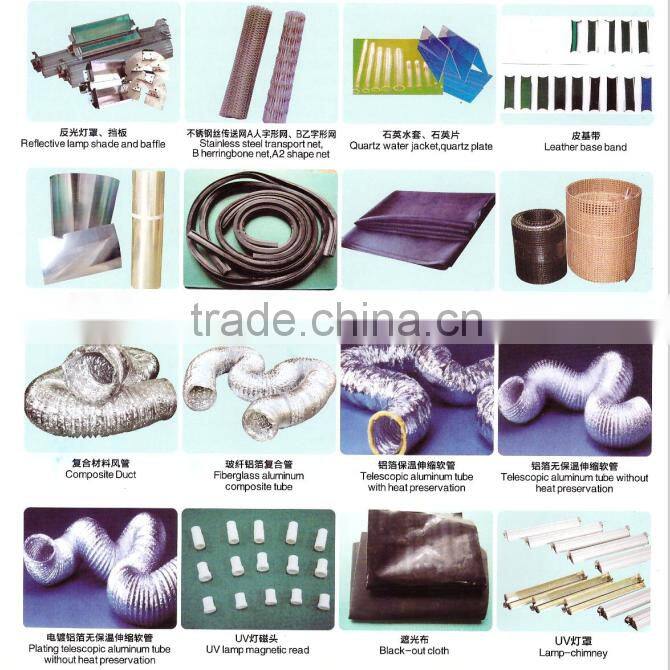

UV drying machine component:

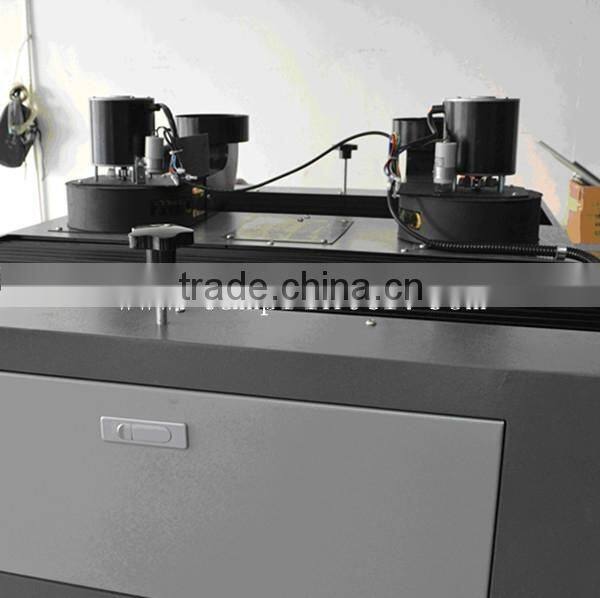

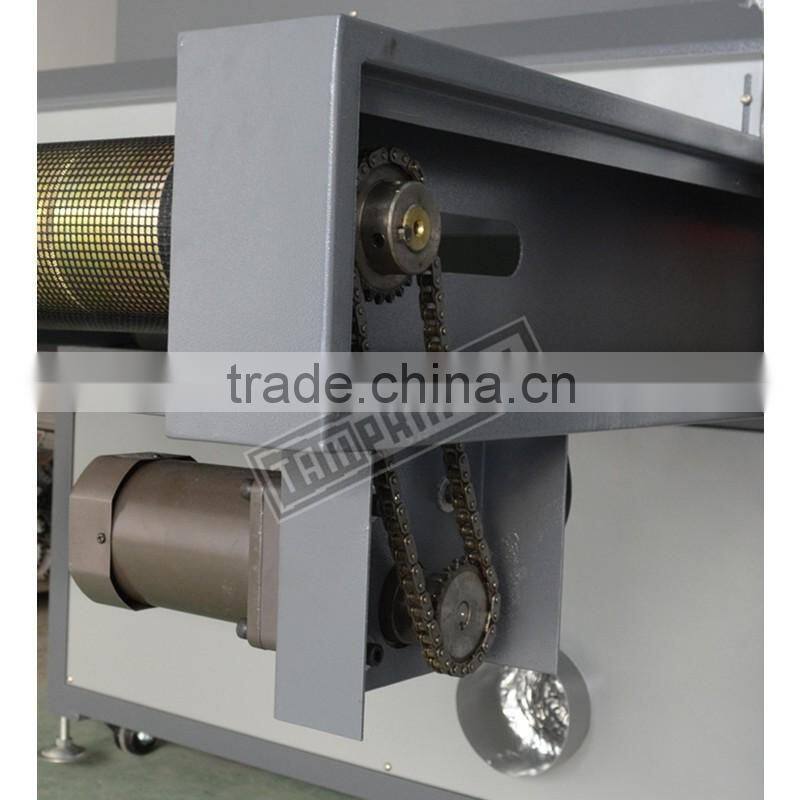

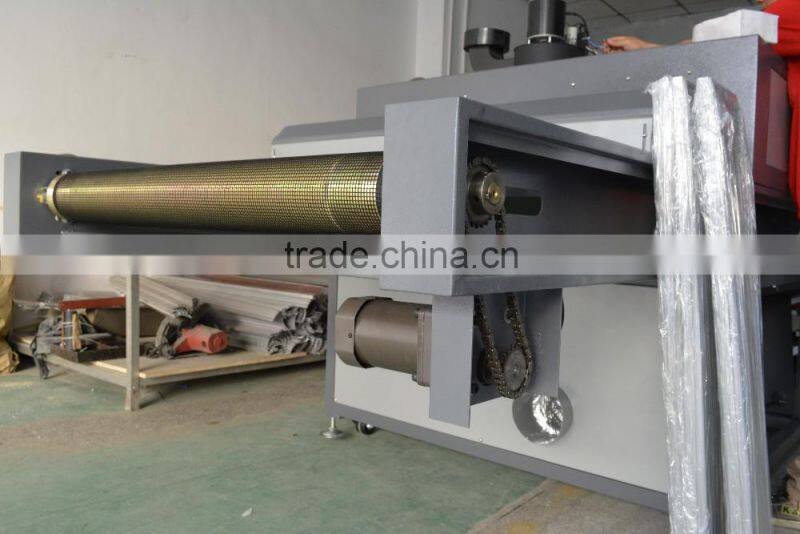

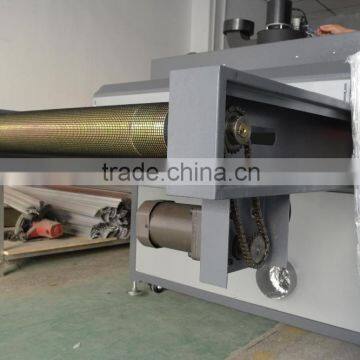

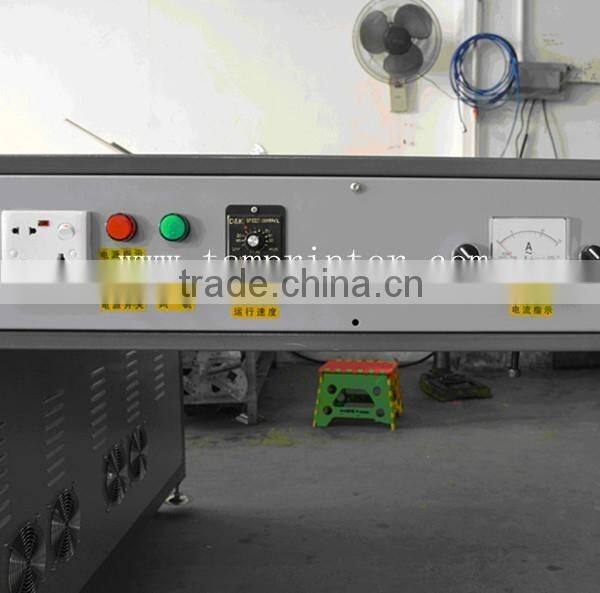

UV drying machine Pictures:
