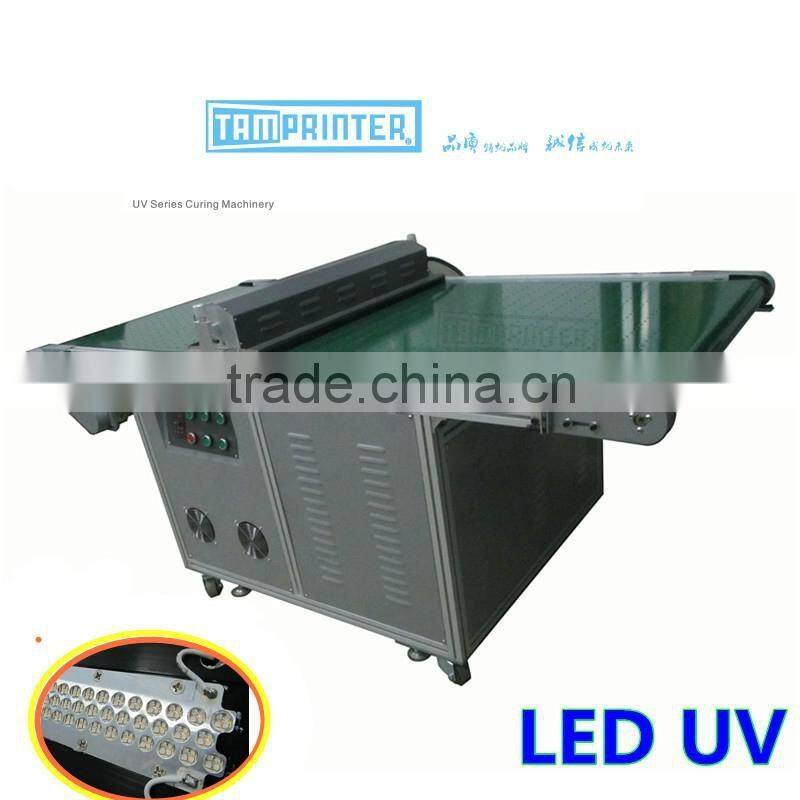

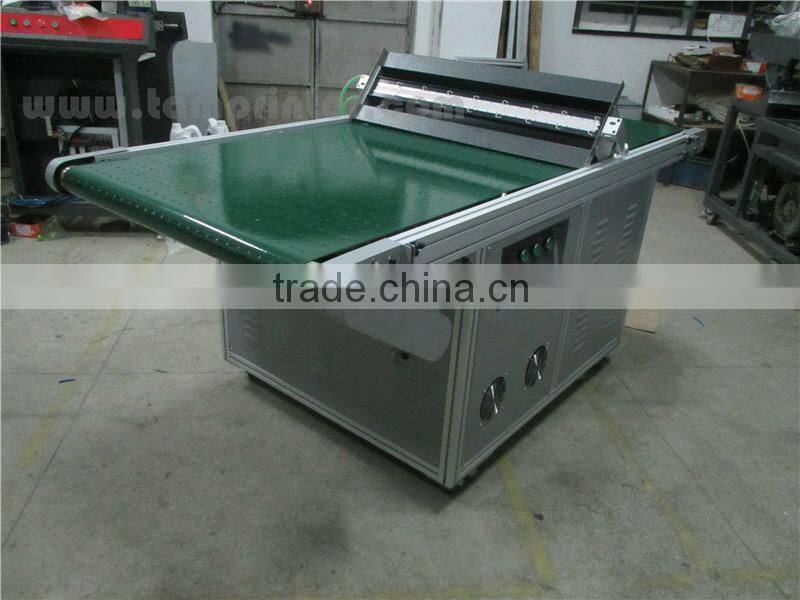

TM-LED800 economic cheap LED UV drying machine

TM-LED800 economic cheap LED UV drying machine

Specifications

LED UV dryer:
1.led uv curing system
2.speed:0~15m/min
3.power:300W per 4 Modular.
4.more than 20000 hours using life

Do you want to use LED to curing common uv ink?

Do you want to save cost ?  At same time to make a contribution to environmental protection ?

Application Scope:

this is a newest products and newest  Technology, main for UV ink curing(LED UV INK and normal type UV ink), low power,save 90%  Electricity than normal type UV curing machine(14KW), LED UV curing machine power just have 480W !!!

at the same time, this UV LED have a very long using life time,more than 20000 hour.

Tip: We can manufacture according to customer’s requirement.

1. Advantage of UV LED:

n  High efficient and low temperature, prevent material to deformation or turn to yellow;

n  Convenient to install on any of the existing drying equipment;

n  Ultra low energy consumption, electricity saving 80%~90%;

n  Long using life, curing once turn it on,need’t to wait, stable light source;

n  Effective curing the common UV ink, do not need to replace Special ink, the same efficiency;

n  Green environmental protection, low noise, no ozone, no mercury pollution, no heat radiation;

n  with 2 years warranty

2.  Comparison of LED UV and traditional UV light source:

TM-LED800 UV curing machine be given to dry uv color white black ... and lacquer high gloss and matte.

Technical parameters

0.95*1.5*0.95m,belt wide 800mm

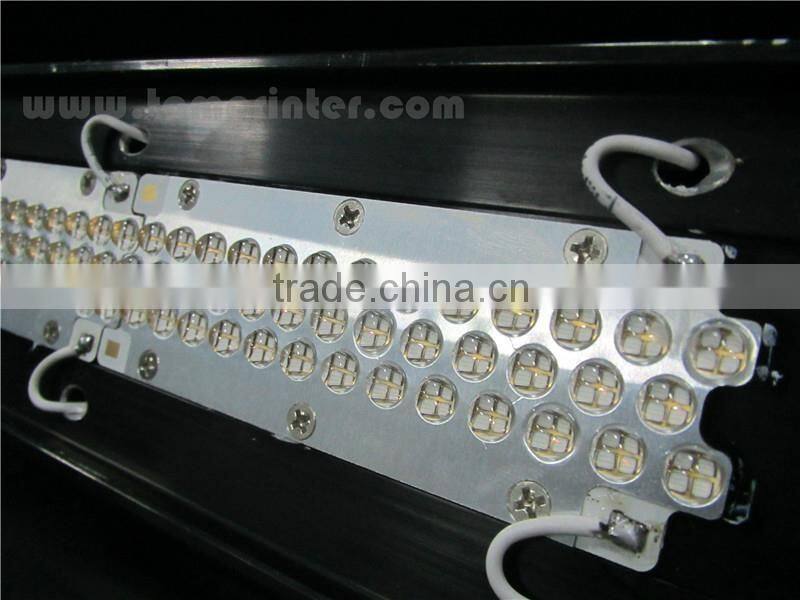

Light is an array of integrated version ,130*130MM LED lamp block,Arranged according to the customer's width AND speed

12 block*USD2000+body=USD25800

Application:

It is apply to the special effects such as wrinkle, frosted refraction gem crystal and convex oil on the bullion paperboard, metal, glass, plastic, and also the UV curing of the offset printing ink on the offset press production.
