100kw Diesel Generator China Supplier Powered With Cummins Engine

100kw Diesel Generator Set Technical Data

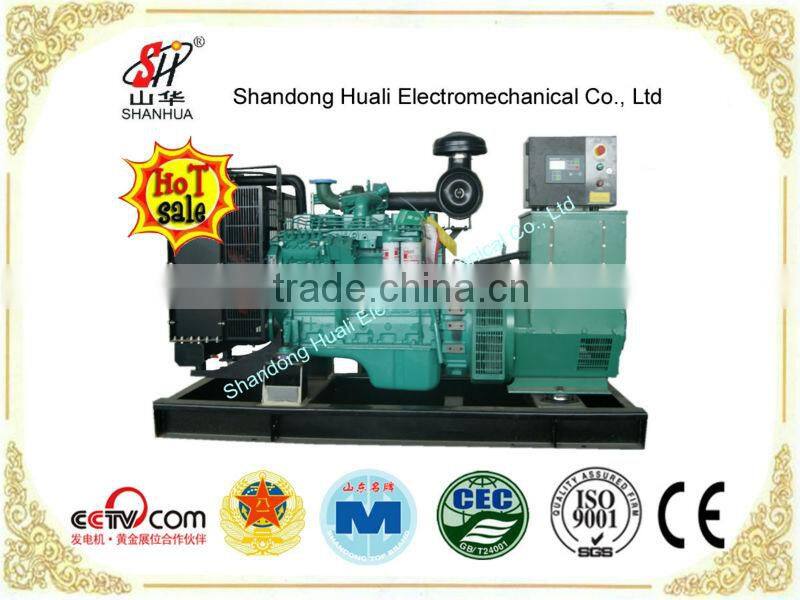

This 100kw diesel generator set is powered with Cummins engine.

Specification of genset

Genset model:HL100GF

Prime power: 100KW / 125KVA

Standby power: 110KW / 137KVA

Power factor: 0.8

Rated Voltage: 400/230V

Rated frequency (HZ): 50

Dimensions (mm) (L×W×H): 2200×800×1350

Weight (kg): 1080

Specification of diesel engine

Engine Model: 6BTA5.9-G2

Manufacturer: DCEC Cummins

Governor:E

Cylinders/Arrangement: 4/L

Bore× Stroke(MM): 102×120

Fuel Consumption Rate(L/h): 27

Lubricating oil capacity(L): 16.4

Coolant capacity (L): 28.6

Engine speed (rpm): 1500

Max Power (kW): 116

Starting Method: DC12V electrical starting

Specification of alternator

Alternator model: HLF100

Connecting Type: 3 Phase and 4 Wires

Number of Bearing: 1

 Protection Grade: IP21

Altitude: ≤1000m

Exciter Type: Brushless, Self-exciting, AVR automatic voltage regulating,100% Copper winding wire

Insulation Class: H

Telephone Influence Factor (TIF):≤50

Voltage Regulation, Steady State: ≤±1%

Transient State Voltage: ≤-15%~+20%

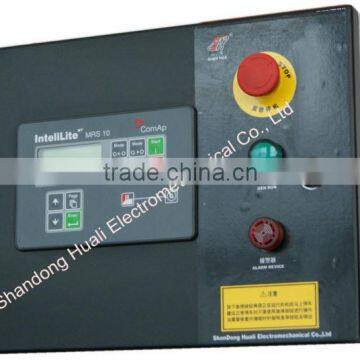

Control System

Operating temperature: -20°C~60°C

Relative Humidity: 95%

Operating voltage: DC24V (range: 18-30V, pressure: 50V/5 mm )

Standard functions: Engine Control/Generator Monitoring/Generator Protection/Engine Monitoring/

                                Clear Text Display

Shutdown: Loss of Speed Signal,Alternator Under / Over Voltage,Alternator Under/ Over Frequency,

                  Mains Under / Over Voltage,Mains Under/ Over Frequency,Under / Over Speed,Low Oil Pressure,

                  High Engine Temperature,Phase Sequence Electrical (Option),Earth Fault (Option)

Warning: Alternator Under / Over Voltage,Alternator Under/ Over Frequency,Mains Under / Over Voltage,

               Mains Under/ Over Frequency,Under / Over Speed,Low Oil Pressure Pre-Alarm,High Engine

               Temperature Pre-Alarm,High/Low Battery Voltage,Over-current,Periodic maintenance

GENEST TYPE:

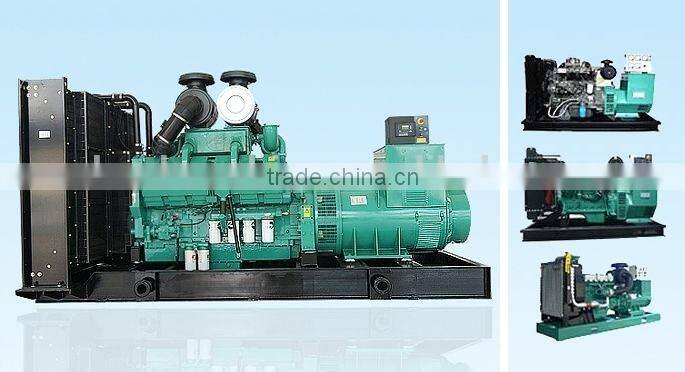

OPEN TYPE

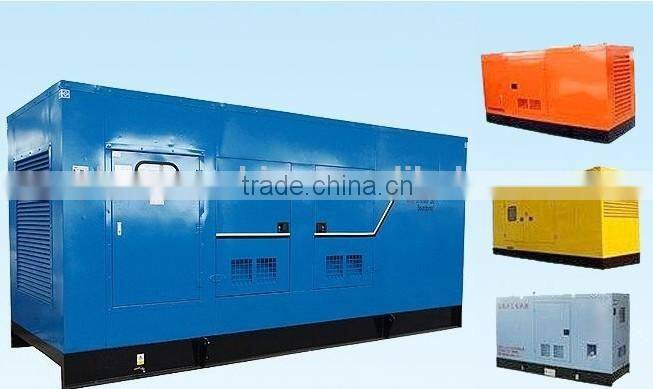

SILNT TYPE

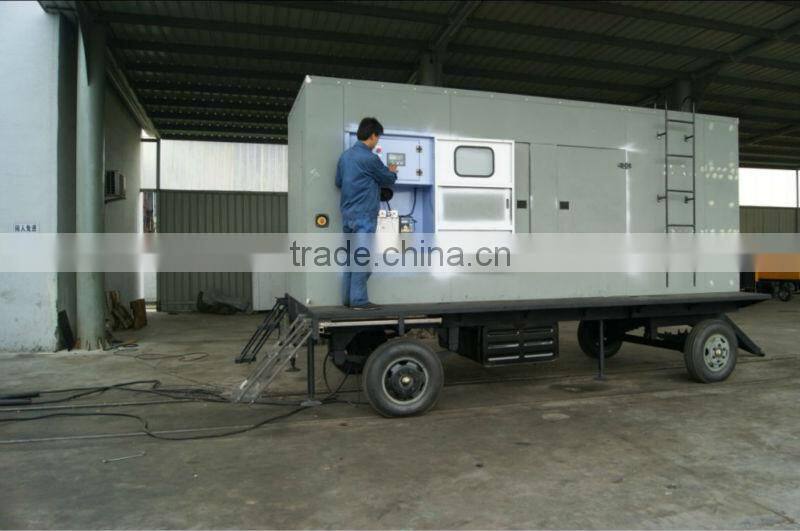

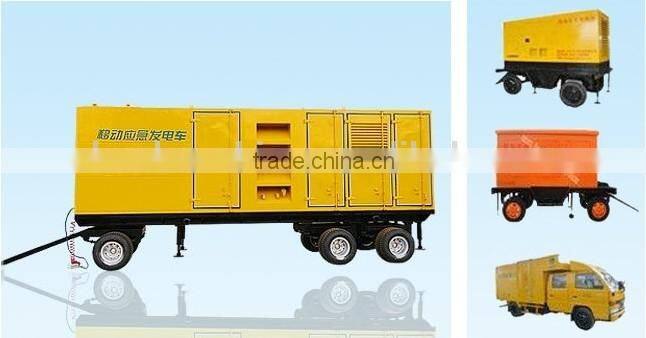

TRAILER TYPE

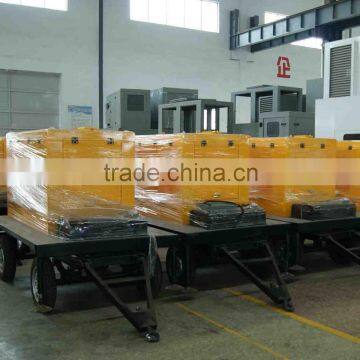

PRODUCTION LINE:

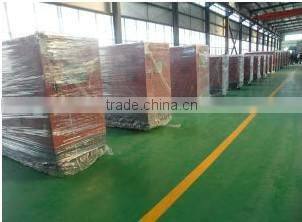

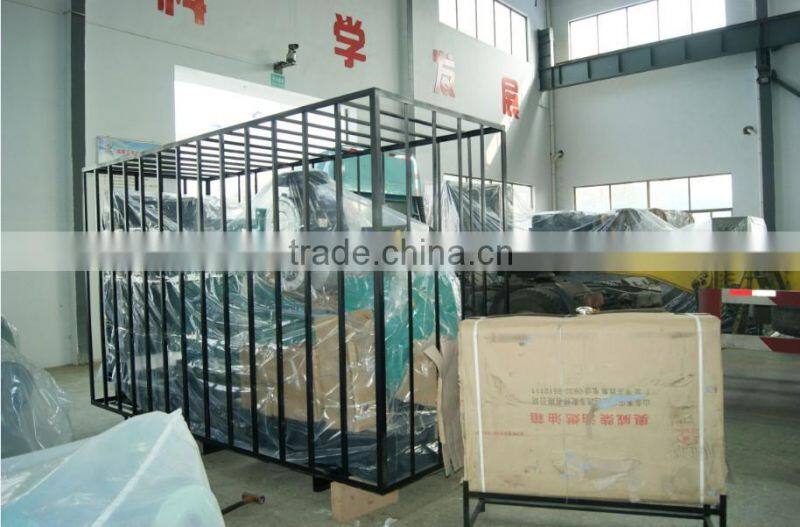

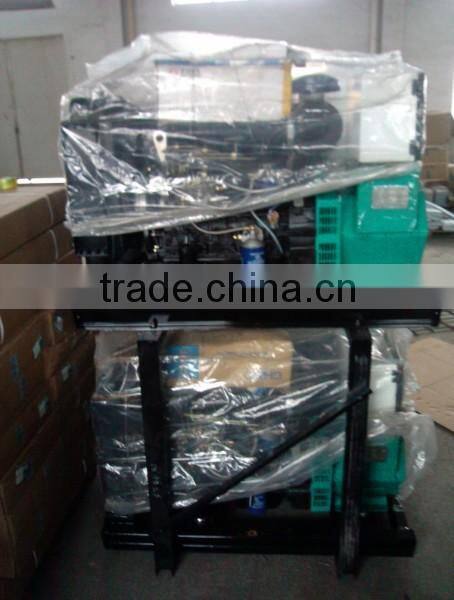

 PACKING:

CERTIFICATES:

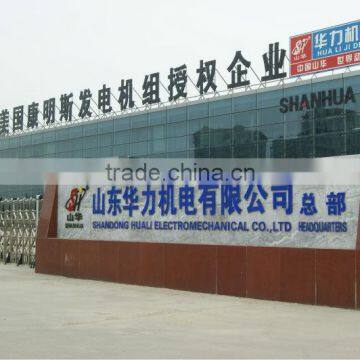

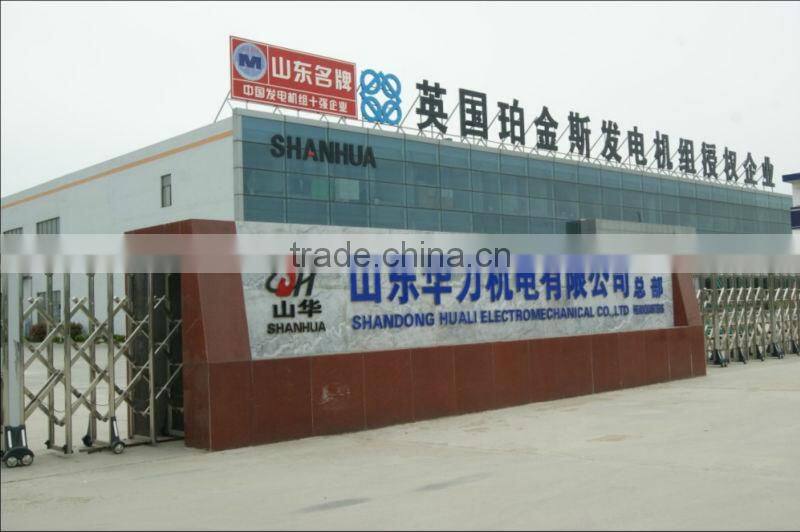

OUTLOOK OF OUR FACTORY:

Contact information:
