80KW Portable Diesel Generator Set Powered With Volvo Engine China Price

80kw Diesel Generating Set Technical Data

This 80kw diesel generator set is powered with Volvo engine.

Specification of genset

Genset model:HL80GF

Prime power: 80KW / 100KVA

Standby power: 88KW / 110KVA

Power factor: 0.8

Rated Voltage: 400/230V

Rated frequency (HZ): 50

Dimensions (mm) (L×W×H): 2020×850×1612

Weight (kg): 1023

Specification of diesel engine

Engine Model: TAD531GE

Manufacturer: VOLVO

Governor:E

Air intake way: turbocharger

Cylinders/Arrangement: 4/L

Bore× Stroke(MM): 108×130

Fuel Consumption Rate(L/h): 22.8

Lubricating oil capacity(L): 11

Coolant capacity (L): 19.7

Engine speed (rpm): 1500

Max Power (kW): 98

Starting Method: DC12V electrical starting

Specification of alternator

Alternator model: HLF80

Connecting Type: 3 Phase and 4 Wires

Number of Bearing: 1

Protection Grade: IP21

Altitude: ≤1000m

Exciter Type: Brushless, Self-exciting, AVR automatic voltage regulating,100% Copper winding wire

Insulation Class: H

Telephone Influence Factor (TIF):≤50

Voltage Regulation, Steady State: ≤±1%

Transient State Voltage: ≤-15%~+20%

Control System

Operating temperature: -20°C~60°C

Relative Humidity: 95%

Operating voltage: DC24V (range: 18-30V, pressure: 50V/5 mm )

Standard functions: Engine Control/Generator Monitoring/Generator Protection/Engine Monitoring/

                                Clear Text Display

Shutdown: Loss of Speed Signal,Alternator Under / Over Voltage,Alternator Under/ Over Frequency,

                 Mains Under / Over Voltage,Mains Under/ Over Frequency,Under / Over Speed,Low Oil Pressure,

                 High Engine Temperature,Phase Sequence Electrical (Option),Earth Fault (Option)

Warning: Alternator Under / Over Voltage,Alternator Under/ Over Frequency,Mains Under / Over Voltage,

               Mains Under/ Over Frequency,Under / Over Speed,Low Oil Pressure Pre-Alarm,High Engine

               Temperature Pre-Alarm,High/Low Battery Voltage,Over-current,Periodic maintenance

GENEST TYPE:

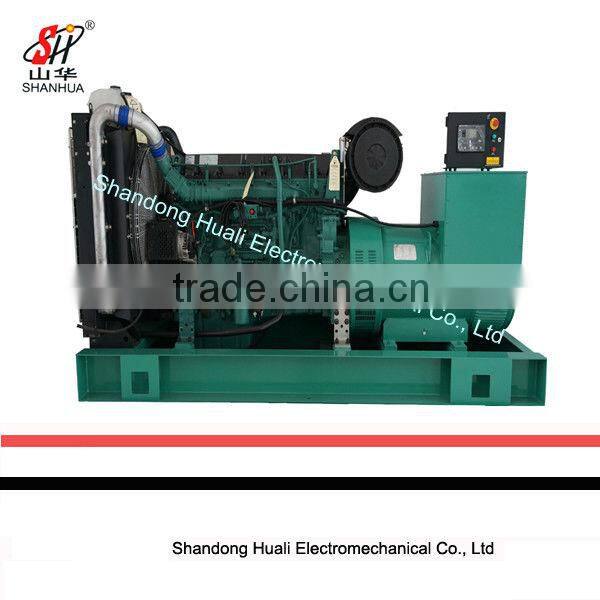

OPEN TYPE

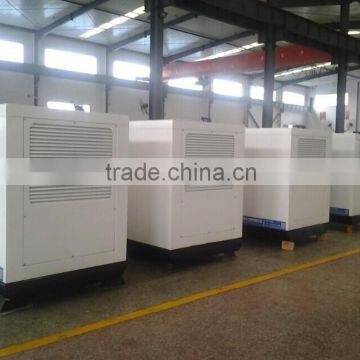

SILNT TYPE

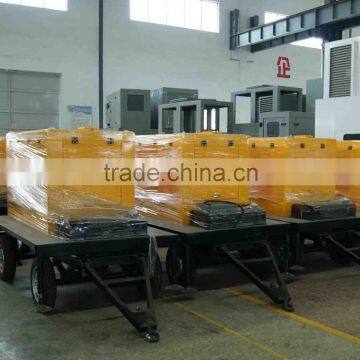

TRAILER TYPE

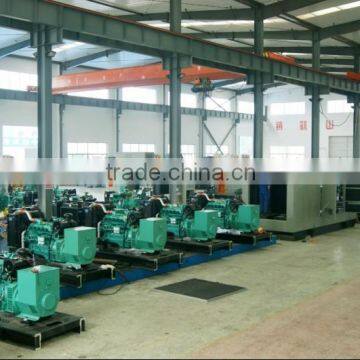

PRODUCTION LINE:

 PACKING:

CERTIFICATES:

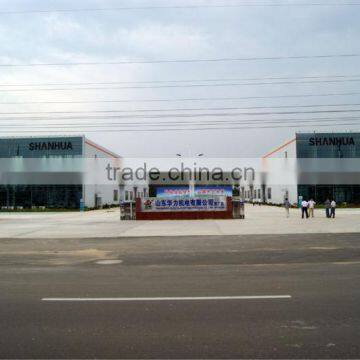

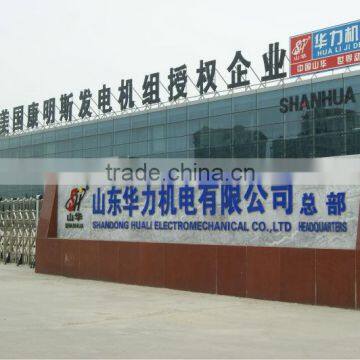

OUTLOOK OF OUR FACTORY:

Contact information:
