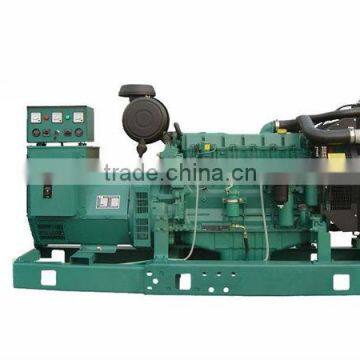

80KW/100KVA VOLVO penta power Generator Set

Specifications

80KW/100KVA  VOLVO penta power Generator Set

Specification of genset

Genset model:HL80GF

Prime power: 80KW / 100KVA

Standby power: 88KW / 110KVA

Power factor: 0.8

Rated Voltage: 400/230V

Rated frequency (HZ): 50

Dimensions (mm) (L×W×H): 2020×850×1612

Weight (kg): 1023

Specification of diesel engine

Engine Model: TAD531GE

Manufacturer: VOLVO

Governor:ECM

Air intake way: turbocharger

Cylinders/Arrangement: 4/L

Bore× Stroke(MM): 108×130

Fuel Consumption Rate(L/h): 22.8

Lubricating oil capacity(L): 11

Coolant capacity (L): 19.7

Engine speed (rpm): 1500

Max Power (kW): 98

Starting Method: DC12V electrical starting

Specification of alternator

Alternator model: HLF80

Connecting Type: 3 Phase and 4 Wires

Number of Bearing: 1

Protection Grade: IP21

Altitude: ≤1000m

Exciter Type: Brushless, Self-exciting, AVR automatic voltage regulating,100% Copper winding wire

Insulation Class: H

Telephone Influence Factor (TIF):≤50

Voltage Regulation, Steady State: ≤±1%

Transient State Voltage: ≤-15%~+20%

Control System

Operating temperature: -20°C~60°C

Relative Humidity: 95%

Operating voltage: DC24V (range: 18-30V, pressure: 50V/5 mm )

Standard functions: Engine Control/Generator Monitoring/Generator Protection/

Engine Monitoring/Clear Text Display

Shutdown: Loss of Speed Signal,Alternator Under / Over Voltage,Alternator Under/ Over Frequency,

Mains Under / Over Voltage,Mains Under/ Over Frequency,Under / Over Speed,Low Oil Pressure,High Engine Temperature,Phase Sequence Electrical (Option),Earth Fault (Option)

Warning: Alternator Under / Over Voltage,Alternator Under/ Over Frequency,Mains Under / Over Voltage,Mains Under/ Over Frequency,Under / Over Speed,Low Oil Pressure Pre-Alarm,High Engine Temperature Pre-Alarm,High/Low Battery Voltage,Over-current,Periodic maintenance
