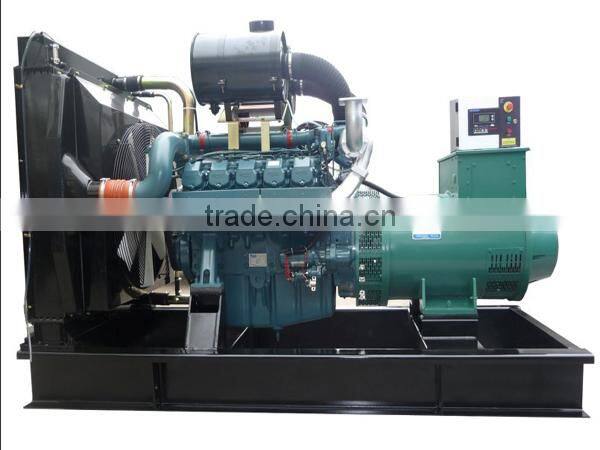

doosan diesel power generator 380v 50hz

Specifications

doosan diesel  power generator 380v 50hz

Specification of genset

Genset model:HL300GF

Prime power: 300KW / 375KVA

Standby power: 330KW / 412.5KVA

Power factor: 0.8

Rated Voltage: 400/230V

Rated frequency (HZ): 50

Dimensions (mm) (L×W×H): 3120×1390×1690

Weight (kg): 2885

Specification of diesel engine

Engine Model: P158LE-1

Manufacturer: DOOSAN

Governor: E

Air intake way: Turbo-charged

Cylinders/Arrangement: 8/V

Bore× Stroke(MM): 128×142

Fuel Consumption Rate(L/h): 80.4

Lubricating oil capacity(L): 28

Coolant capacity (L): 88.5

Compression ratio: NA

Displacement, total (L): NA

Net weight (kg): 500

Engine speed (rpm): 1500

Max Power (kW): 362

Starting Method: DC12V electrical starting

Specification of alternator

Alternator model: HLF300

Connecting Type: 3 Phase and 4 Wires

Number of Bearing: 1

Protection Grade: IP21

Altitude: ≤1000m

Exciter Type: Brushless, Self-exciting, AVR automatic voltage regulating,100% Copper winding wire

Insulation Class: H

Telephone Influence Factor (TIF):≤50

Voltage Regulation, Steady State: ≤±1%

Transient State Voltage: ≤-15%~+20%

Control System

Operating temperature: -20°C~60°C

Relative Humidity: 95%

Operating voltage: DC24V (range: 18-30V, pressure: 50V/5 mm )

Standard functions: Engine Control/Generator Monitoring/Generator Protection/

Engine Monitoring/Clear Text Display

Shutdown: Loss of Speed Signal,Alternator Under / Over Voltage,Alternator Under/ Over Frequency,

Mains Under / Over Voltage,Mains Under/ Over Frequency,Under / Over Speed,Low Oil Pressure,High Engine Temperature,Phase Sequence Electrical (Option),Earth Fault (Option)

Warning: Alternator Under / Over Voltage,Alternator Under/ Over Frequency,Mains Under / Over Voltage,Mains Under/ Over Frequency,Under / Over Speed,Low Oil Pressure Pre-Alarm,High Engine Temperature Pre-Alarm,High/Low Battery Voltage,Over-current,Periodic maintenance

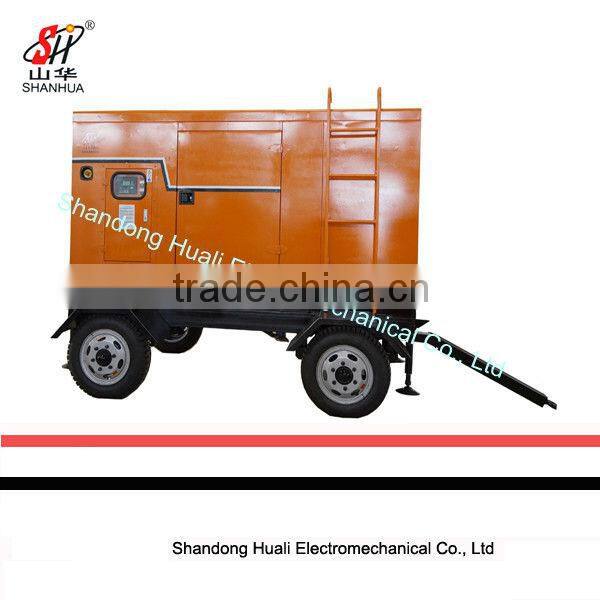

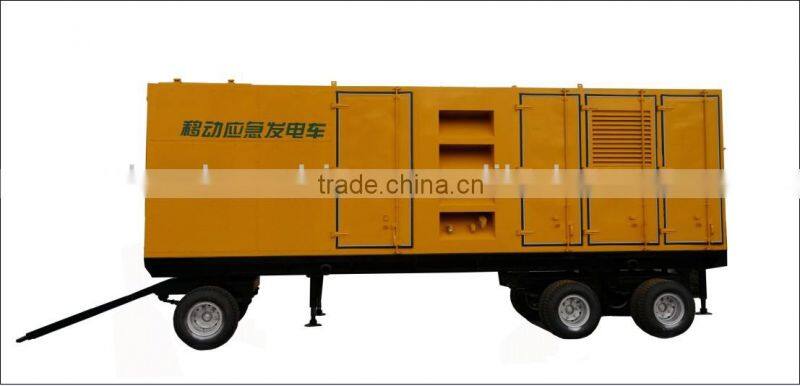

 Finished Products :
