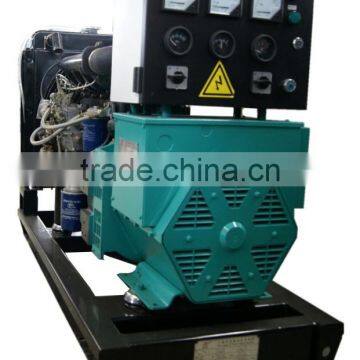

18kW High Quality Single phase diesel generator Details
- 500 Set / Sets per Month
- Qingdao
- T/T
You May Like
-
High Quality 600KW YUCHAI diesel genset made in china whole price Details
-
High Quality 125KVA China Genset Yuchai Gen Set Whole Price Details
-
625KVA YUCHAI Diesel water-coolant Generator Set
-
High Quality YUCHAI 375kva portable generator price with spare part made in china Details
-
100kw Wholesale Price Yuchai Diesel Generator Sets
-
High Quality Yuchai 150KW Open Type Diesel Generator Set Details
Product Details
| Place of Origin | Shanghai, China | Brand Name | Shanhua | |
| Model Number | HL18GF | Output Type | AC Three Phase | |
| Speed | 1500RPM | Frequency | 50HZ | |
| Rated Power | 18KW/22.5KVA | Rated Voltage | 110/220V | |
| Rated Current | 32.4A |
Product Description
Specifications
- 18kW High Quality Single phase diesel generator Details- 100% copper wire
- Open/silent generator
- Promptly delivery
18kW yangdong High Quality Single phase diesel generator Details
Genset :
Model: HL18GF
Prime Power (KVA / KW): 22.5/18
Standby Power (KVA / KW): 24.75/19.8
Rated Ammeter (A): 32.4
Dimensions (mm) (L×W×H): 1400 ×850 ×1125
Net Weight (kg):460
Engine:
Manufacturer: Yangdong
Model: YSD490D
Number of cylinders: 4
Aspiration: Turbo
Bore×Store(mm): 90× 100
Compression ratio: 18:1
Displacement, total (L): 2.54
Speed Governor: Mechanical
Cooling System: Water Cooled
Fuel Consumption at 100% Load (g/kw. h): 247.5
Starting Method: 24V DC Starter
Alternator:
STAMFORD,MARATHON, SHANHUA, 3 Phase and 4 Wires, 100% copper wire Brushless, Self-exciting, IP21-IP23, and Insulation Class: H
Products Exhibition :
Production Line :
Test Center:
The items been tested on the diesel generators are mainly as follows:
1) Each diesel generator is tested more than 4 hours totally. They are tested on idle load, load, fully load and 10% overload.
2) The noise level is tested.
3) Operation of the various meters on the control panel is tested.
4) The diesel generator appearance and all marks are checked as well.
Packing Type :
Cooperations:
