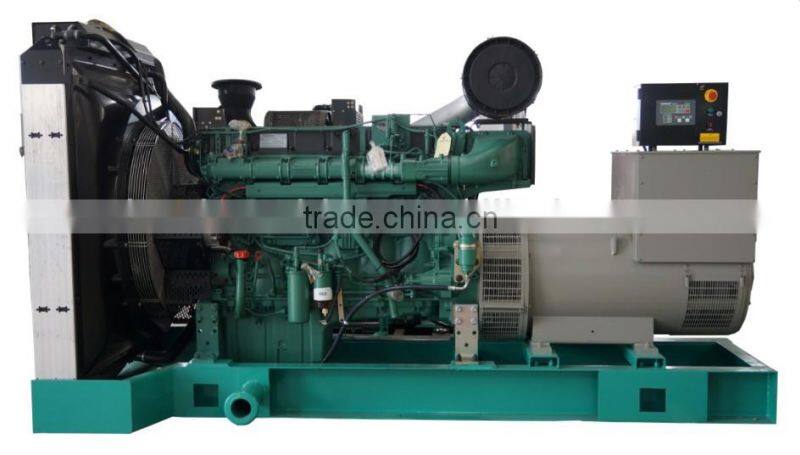

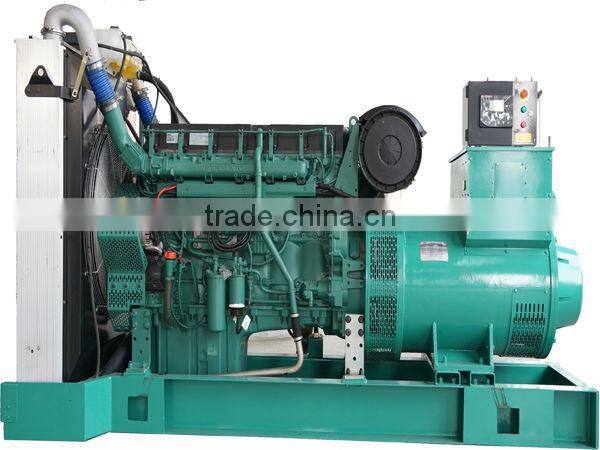

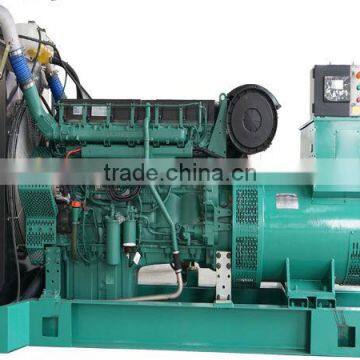

High Quality 625KVA Volvo open type diesel generator set with TWD1643GE Details

 Specification of genset:

Genset model:HL625GF

Prime power: 500kW / 625kVA

Standby power: 550kW / 687.5kVA

Power factor: 0.8

Rated Voltage: 400/230V

Rated frequency (HZ): 50

Dimensions (mm) (L×W×H): 3450×1400×2080

Weight (kg): 3918

Specification of diesel engine:

Engine Model: TWD1643GE

Manufacturer: VOLVO

Governor:ECM

Air intake way: turbocharger

Cylinders/Arrangement: 6/L

Bore× Stroke(MM): 144×165

Fuel Consumption Rate(L/h): 124.2

Lubricating oil capacity(L): 42

Coolant capacity (L): 128

Compression ratio: 16.5:1

Displacement, total (L): 16.12

Net weight (kg): NA

Engine speed (rpm): 1500

Max Power (kW): 596

Starting Method: DC12V electrical starting

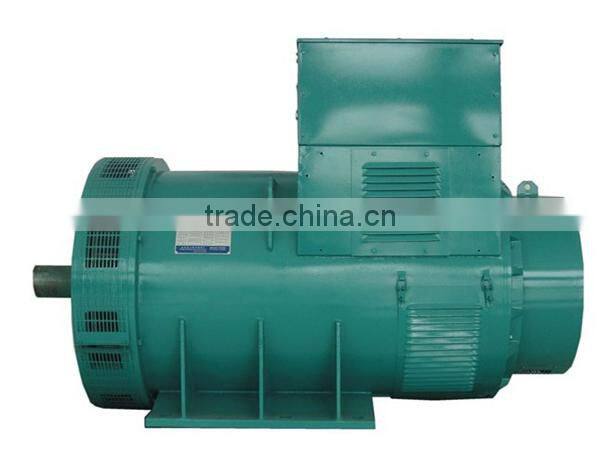

 Specification of alternator:

 Alternator model: HL625

Connecting Type: 3 Phase and 4 Wires

Number of Bearing: 1

Protection Grade: IP21

Altitude: ≤1000m

Exciter Type: Brushless, Self-exciting, AVR automatic voltage regulating,100% Copper winding wire

Insulation Class: H

Telephone Influence Factor (TIF): ≤50

Voltage Regulation, Steady State: ≤±1%

Transient State Voltage: ≤-15%~+20%

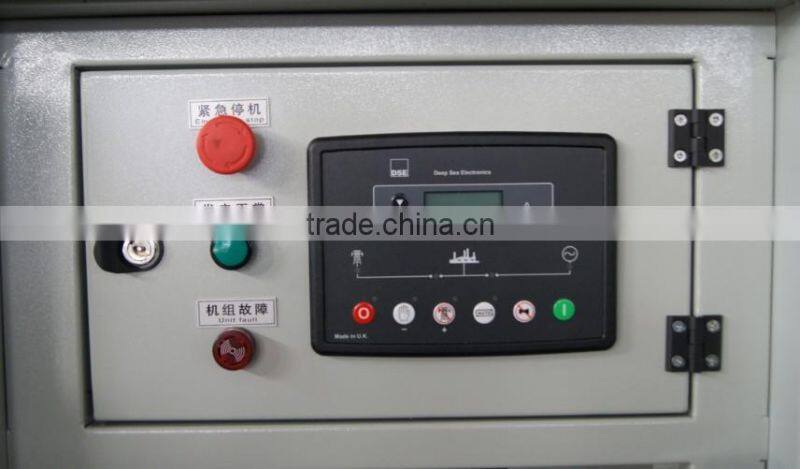

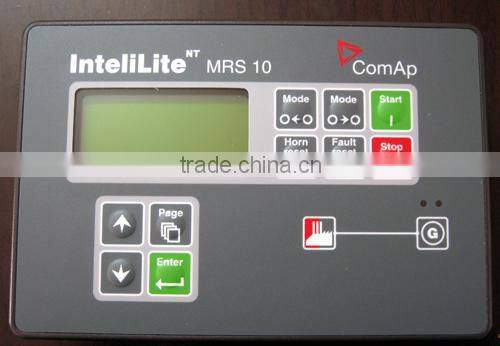

Control System:

Operating temperature: -20°C~60°C

Relative Humidity: 95%

Operating voltage: DC24V (range: 18-30V, pressure: 50V/5 mm )

Standard functions: Engine Control/Generator Monitoring/Generator Protection/

Engine Monitoring/Clear Text Display

Shutdown: Loss of Speed Signal,Alternator Under / Over Voltage,Alternator Under/ Over Frequency,

Mains Under / Over Voltage,Mains Under/ Over Frequency,Under / Over Speed,Low Oil Pressure,High Engine Temperature,Phase Sequence Electrical (Option),Earth Fault (Option)

Warning: Alternator Under / Over Voltage,Alternator Under/ Over Frequency,Mains Under / Over Voltage,Mains Under/ Over Frequency,Under / Over Speed,Low Oil Pressure Pre-Alarm,High Engine Temperature Pre-Alarm,High/Low Battery Voltage,Over-current,Periodic maintenance

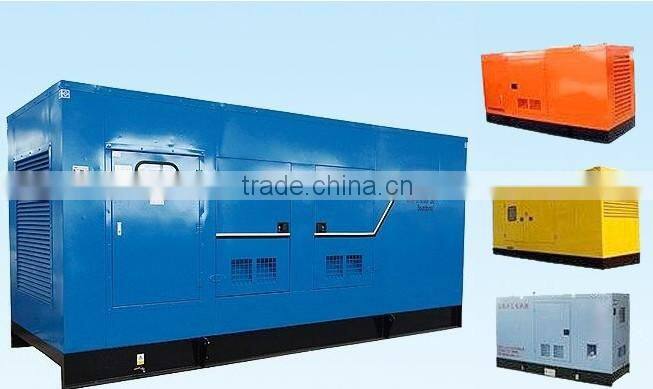

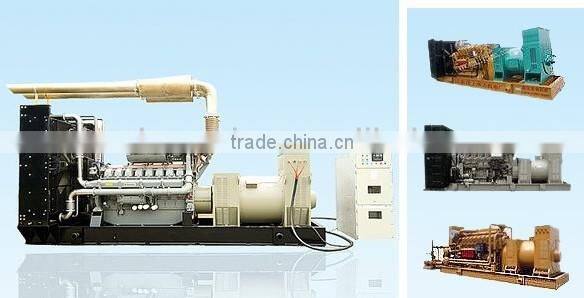

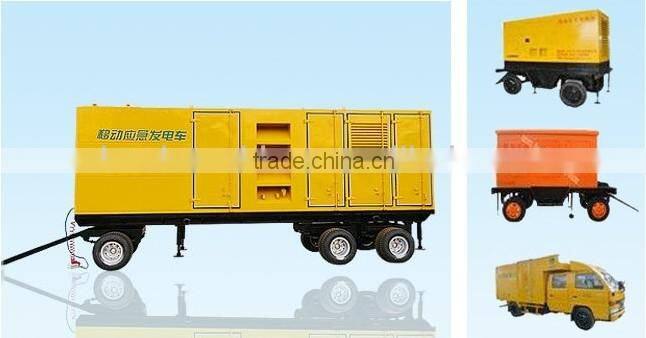

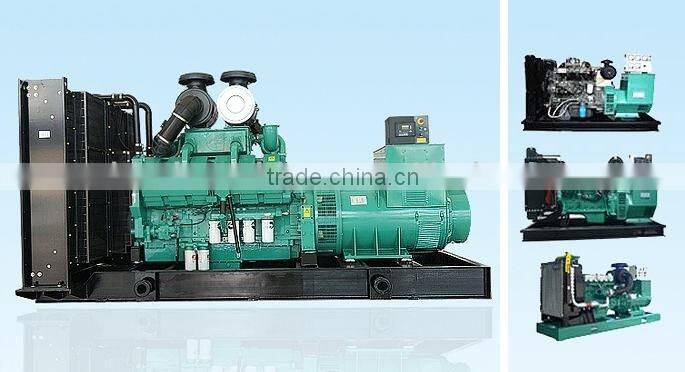

Finished  Products :
