Home > Products > POE Devices > POE switch for CCTV IP camera type B poe switch 8 port switch POE-08B

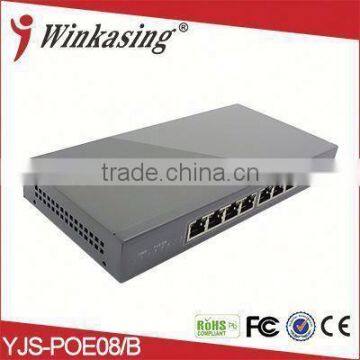

POE switch for CCTV IP camera type B poe switch 8 port switch POE-08B
- 50000 Piece / Pieces per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
16 ports New arrival poe switch 10 or 100Mbps industrial poe switch Half-Duplex YJS-POE16B
-
poe switch 24v 8 ch POE network Switch poe POE-2508
-
POE device Factory gigabit switch direct 4 ports 1.6 Gbps POE
-
POE deviceSupply passive poe adapter 5-48V POE Splitter
-
POE splitter and POE injector poe switch Kit 12V POE Splitter
-
Exquisite appearance DC 12V output POE Splitter for Camera
Product Details
Products Status | Stock | Ports | Other, ≤ 8 | |
Transmission Rate | 10/100Mbps | Function | POE, POE | |
Communication Mode | Other, Full-Duplex & Half-Duplex, Full-Duplex & Half-Duplex | Certification | FCC, CE,FCC,RoHS, ISO, CE,FCC,RoHS, ISO | |
Switch Capacity | 1.6G, 1.6G | Brand Name | Winkasing, Winkasing | |
Model Number | YJS-POE08/B, YJS-POE-08B | Place of Origin | Guangdong, China |
Product Description
10/100/1000Mbps 15.4 watt poe switch Module design
Product | 5-PORT 10/100 SWITCH WITH 8-PORT POE |
Type | YJS-POE08B |
Network Ports | 5 10/100Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX |
Power Pin Assignment | Data provided over pairs over 1/2and 3/6 ,Power over |
PoE Distance | 100m |
Transmission Method | Store-And-Forward |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
Performance Specifications | Bandwidth:1.6 Gbps |
Network latency:Less than 20 μs for 64-byte frames in store-and-forward mode for 100 Mbps to 100 Mbps transmission | |
Buffer memory:96 KB embedded memory per unit | |
Address database size:1,000 media access control (MAC) addresses per system | |
Addressing:48-bit MAC address | |
Mean Time Between Failure (MTBF):190,000 hours (~ 21 years) | |
Acoustic Noise: 0 dB | |
Network Protocol and Standards | IEEE 802.3i 10BASET |
IEEE 802.3u 100BASETX | |
IEEE 802.3x Flow Control | |
IEEE 802.1af DTE Power via MDI | |
IEEE 802.3af | |
Status LEDs | System: Power, PoE Maximum Power |
Per Port: Link, Activity, Speed, PoE Active, PoE Fault | |
Power Supply | Total Power Consumption: 60 W maximum |
PoE Watt budget: 56W | |
IEEE802.3af Power Consumption: 56W maximum (Ports 1 – 4) | |
48VDC, 1.25A power output; plug is localized to country of sale | |
Physical Specifications | Dimensions (H x W x D):28 x 85.2 x 118.7mm |
Weight:0.34kg | |
Environmental Specifications | Operating temperature: 0 to 55°C |
Storage temperature: -20 to 75°C | |
Operating humidity: 90% maximum relative humidity, non-condensing | |
Storage humidity: 95% maximum relative humidity, non-condensing | |
Operating altitude: 10,000 ft (3,000 m) maximum | |
Storage altitude: 10,000 ft (3,000 m) maximum |
Shenzhen Yongjiasheng Technologies Co., Ltd. is a Surge Protector manufacturer of security products with well-equipped testing facilities and strong technical force.
With a wide Surge Protector range, good quality, reasonable prices and stylish designs, our Surge Protector products are extensively used in security industry and other industries.
Our Surge Protector products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers to contact us for future business relationships and mutual success!
1.We also provide 12-month free maintenance. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.
2.Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.
3.We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
The buyer will be responsible for the shipping fees to return the items.
Shenzhen Yongjiasheng Technology Co.,LTD. is a direct supplier of security cameras(CCTV,network IP,and AHD),video surveillance systems,and CCTV equipment (Closed Circuit Television ) for home, business and government.In addition to CCTV cameras and systems,we also manufacture network IP cameras,AHD cameras,and hundreds of video surveillance accessories.Most of our surveillance systems include DVR viewer software for Windows and Mac PCs,as well as mobile surveillance viewer apps for iphone, ipad,and Android devices.We offer many complete systems that are pre-configured and easy to install.
Our security cameras provides the best customer service & technical support in the industry.We also strive to provide the most competitive pricing possible on surveillance systems,security cameras,surveillance equipment,and DVR cards.
