35W 5V 7A LED Switching Power Supply Small Size AS-35-5
- ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
35W 12VDC Switch Power Supply AS-35-12 For LED With Small Size
-
35W 12V 3A DC Output 100~264VAC Input Power Supply With Mini Size
-
350W 12V Small Volume Single Output Switching Power Supply AS-350-12
-
Small Volume 350W 15V 23.4A Single Output Switching Power Supply S-350-15
-
350W 24V Small Volume Switching Power Supply AS-350-24
-
350W15V Small Volume Single Output Switching Power Supply AS-350-15
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SMUN | |
| Model Number | AS-35-5 | Output Power | 1 - 50W | |
| Output Type | Single | Input Voltage | Other, 100-264VAC | |
| Output Voltage | 5VDC | Output Frequency | 47~63Hz | |
| Output Current | 7A |
Product Description

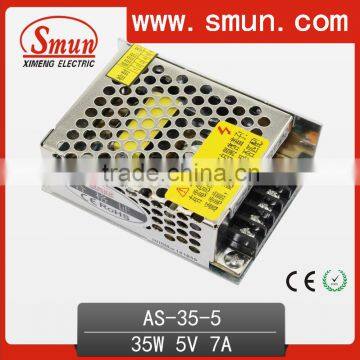

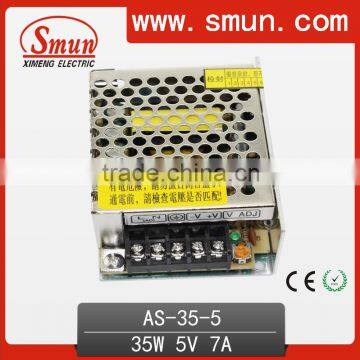

35W 5V 7A LED Switching Power Supply Small Size AS-35-5
· 1. AC input voltage range selected by switch
· 2. Small Volume,low weight,high efficiency
· 3. Protections:Short circuit,over load
· 4. LED indicator for power on
· 5. 100% full lrad burn-in test
· 6. 2 years warranty
| Model | AS-35-5 | AS-35-12 | AS-35-15 | AS-35-24 | |
| Output | DC output Voltage | 5V | 12V | 15V | 24V |
| Voltage tolerance | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| Rated Current | 7A | 3A | 2.4A | 1.5A | |
| Related Power | 35w | 35w | 35w | 35w | |
| Wave&Noise | 75mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | |
| Adjustable range for DC Voltage | ±10% | ±10% | ±10% | ±10% | |
| Set up,rise,hold up time | 200ms 100ms 30ms | ||||
| Input | Voltage Range | 85 ~132VAC 170-264VAC 47-63HZ 240-370VDC | |||
| Input Current | 0.6A/115VAC 0.3A/230VAC | ||||
| Efficiency | 70% | 76% | 78% | 78% | |
| AC inrush current | Cold start current 15A/115V 30A /230VAC | ||||
| Leakage current | <0.5mA/240VAC | ||||
| Protection | Overload | Related output power 105-150% start overload protection | |||
| Protection type: cutoff output, recovery after restart power | |||||
| Over voltage | 5.75V-6.75V | 13.8V-16.2V | 17.2V-20.2V | 27.6V-32.4V | |
| Hiccup mode,recovers automatically after fault condition | |||||
| Environment | Working temp humidity | -10~+60°C 20%~90%RH | |||
| Stor temp, humidity | -20~+85°C 20%~90%RH Non-condensing | ||||
| Safety | Withstand voltage | I/P-O/P:1.5KVAC 1min | |||
| I/P-FG:1.5KVAC 1min | |||||
| O/P-FG:0.5KVAC 1min | |||||
| Standard | Safety standard | Fit UL1012 | |||
| Refer | Design refer to GB4943,UL60950,EN60950 | ||||
| EMC standard | Design refer to GB9254,EN55022 Class A | ||||
| Size | size | L84*W57*H38mm | |||
| Package | 0.16kg, 80pcs/13kg | ||||
1.Your email will be replied with 24 hours
2.All qustions will be answered by our power supply engineer.
3.We have strictly management on the production and quality control.
4.We are real factory and have professional engineer team,can provide cust service.
>More than 500 pieces,can print logo on the products.
>More than 2000 pieces,can customize the package.
5.We have independent IMP&EMP rights.
6.Sample available.
7.Warranty Clarify:
>Products found to be defective within 30 days from the date of receipt can be returned for credit or exchange.After the initial 30 days,XIMENG will repair the goods according to our warranty period.
>We will send a new one to you if product can't work as quality problem in first year after comfirmation.
>If customers do the repair by themselves,XIMENG can provide reasonable quantity free components for repair purpose.
8.Shipping methods:By sea,by air,by express.
9.Customized accepted.
>Power:15W,25W,35W,50W,60W,75W,100W,120W,145W,150W,180W,200W,201W,250W,320W,350W,400W,500W,600W,800W,1000W,1200W,1500W,3000W.
>Output voltage:5V,9V,12V,15V,24V,36V,48V.
>Frequency:47-63Hz
