350W 15V 23A Small Size Switching Power Supply AS-350-15
- ningbo/ shanghai
- T/T L/C D/P D/A Credit Card
You May Like
-
Small Volume 350W 12V 30A LED Power Supply For LED Strip
-
IP20 Non-waterproof Mini Size 350W 24V 15A LED Power Supply
-
350W 24V 15A Output 110V/220VAC Input LED Power Supply AS-350-24
-
250W 12V Small Volume Single Output Switching Power Supply AS-250-12
-
Small Volume 250W 24V 10A Switching Power Supply S-250-24
-
250W 12V 20A Small Size Power Supply For LED AS-250-12
Product Details
| Place of Origin | Zhejiang, China | Brand Name | smun | |
| Model Number | AS-350-15 | Output Power | 301 - 400W | |
| Output Type | Single | Input Voltage | Other, 85~132VAC/170~264VAC Selected by switch | |
| Output Voltage | 15VDC | Output Frequency | 47~63Hz | |
| Output Current | 0-23A |
Product Description

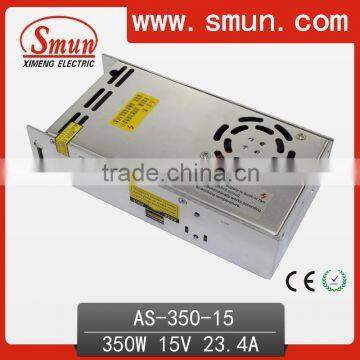

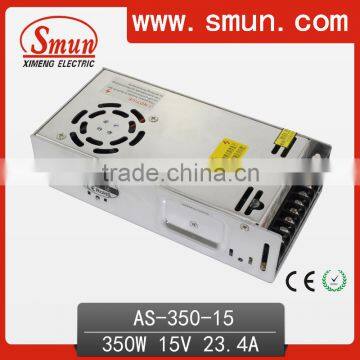

350W 15V 23A Small Size Switching Power Supply AS-350-15
· 1. AC input voltage range
· 2. Small Volume,low weight,high efficiency
· 3. Protections:Short circuit/over load/over voltage/over temp
· 4. Built-in cooling DC fan
· 5. Cooling fan ON-OFF auto control
· 6. LED indicator for power on
· 7. 100% full load burn-in test
· 8. 2 years warranty
| MODEL | AS-350-12 | AS-350-15 | AS-350-24 | ||
| OUTPUT | DC VOLTAGE | 12V | 15V | 24V | |
| RATED CURRENT | 30A | 23.4A | 14.6A | ||
| RATED POWER | 350W | 350W | 350W | ||
| RIPPLE&NOISE | 120mVp-p | 150mVp-p | 150mVp-p | ||
| VOLTAGE ADJ.RANGE | 10.8-13.2V | 13.5-16.5V | 21.6-26.4V | ||
| VOLTAGE TOLERANCE | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±1.0% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP,RISE TIME | 500ms,20ms/230VAC | ||||
| HOLD UP TIME(TYP.) | 30ms/230VAC 25ms/115VAC at full load | ||||
| INPUT | VOLTAGE RANGE | 170-264VAC 240-370VDC | |||
| FREQUENCY RANGE | 47-63HZ | ||||
| EFFICIENCY(Typ.) | 80% | 83% | 84% | 86% | |
| AC CURRENT(Typ.) | 15A/115V 30A/230VAC | ||||
| INRUSH CURRENT | COLD START 30A/115V 60A/230V | ||||
| LEAKAGE CURRENT | 1mA/240VAC | ||||
| PROTECTION | OVERLOAD | 105-150% RATED OUTPUT POWER | |||
| Protection type:Hiccup mode,recovers automatically after fault condition | |||||
| OVER VOLTAGE | 5.75V-6.75V | 13.8V-16.2V | 17.2V-20.25V | 27.6V-32.4V | |
| Protection type:Hiccup mode,recovers automatically after fault condition | |||||
| ENVIRONMENT | WORKING TEMP | -10~+60°C | |||
| WORKING HUMIDITY | 20-90%RH non-condesing | ||||
| STORAGE TEMP,HUMIDITY | -20~+85°C,10-95%RH | ||||
| TEMP.COEFFICIENT | ±0.03%°C(0-50°C) | ||||
| VIBRATION | 10-500HZ | ||||
| SAFETY&EMC | SAFETY STANDARD | CE RoHS | |||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute | ||||
| ISOLATION RESISTANCE | I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25°C/70%RH | ||||
| EMI CONDUCTION&RADIATION | Design refer to GB4943,UL60950,EN60950 | ||||
| EMC STANDARD | Design refer to GB9254,EN55022 Class A | ||||
| DIMENSION | 199*98*50MM | ||||
| PACKING | 0.69kg,30cs/22 | ||||
1.Your email will be replied with 24 hours
2.All qustions will be answered by our power supply engineer.
3.We have strictly management on the production and quality control.
4.We are real factory and have professional engineer team,can provide cust service.
>More than 500 pieces,can print logo on the products.
>More than 2000 pieces,can customize the package.
5.We have independent IMP&EMP rights.
6.Sample available.
7.Warranty Clarify:
>Products found to be defective within 30 days from the date of receipt can be returned for credit or exchange.After the initial 30 days,XIMENG will repair the goods according to our warranty period.
>We will send a new one to you if product can't work as quality problem in first year after comfirmation.
>If customers do the repair by themselves,XIMENG can provide reasonable quantity free components for repair purpose.
8.Shipping methods:By sea,by air,by express.
9.Customized accepted.
>Power:15W,25W,35W,50W,60W,75W,100W,120W,145W,150W,180W,200W,201W,250W,320W,350W,400W,500W,600W,800W,1000W,1200W,1500W,3000W.
>Output voltage:5V,9V,12V,15V,24V,36V,48V.
>Frequency:47-63Hz
