Home > Products > AS-Small Size Switching Power Supply > Small Size 50W 15V AC DC Switch Power Supply SMPS(AS-50-15)

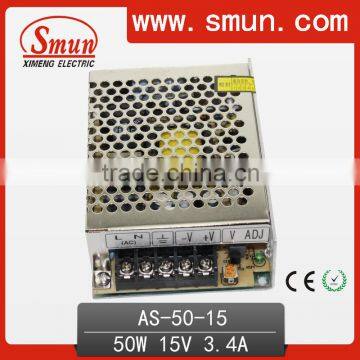

Small Size 50W 15V AC DC Switch Power Supply SMPS(AS-50-15)

FOB Price

US$ 1 - 10 / Piece

100 Pieces(Min. Order)

Port Ningbo Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	Smun
Model Number	AS-50-15	Output Power	1 - 50W
Output Type	Single	Input Voltage	Other, 100-264VAC
Output Voltage	15V	Output Frequency	47-63HZ
Output Current	3.4A

Product Description

Small Size 50W 15V AC DC Switch Power Supply SMPS(AS-50-15)

Welcome

Instruction

Features

· 1. AC input voltage range selected by switch

· 2. Small Volume,low weight,high efficiency

· 3. Protections:Short circuit,over load

· 4. LED indicator for power on

· 5. 100% full lrad burn-in test

· 6. 2 years warranty

Product Description

Model		AS-50-5	AS-50-12	AS-50-15	AS-50-24
Output	DC output Voltage	5V	12V	15V	24V
	Voltage tolerance	±1.0%	±1.0%	±1.0%	±1.0%
	Rated Current	10A	4.2A	3.4A	2.1A
	Related Power	50w	50w	50w	50w
	Wave&Noise	75mVp-p	100mVp-p	100mVp-p	100mVp-p
	Adjustable range for DC Voltage	±10%	±10%	±10%	±10%
	Set up,rise,hold up time	200ms 100ms 30ms
Input	Voltage Range	85 ~132VAC 170-264VAC 47-63HZ 240-370VDC
	Input Current	1.2A/115VAC 0.6A/230VAC
	Efficiency	71%	78%	78%	82%
	AC inrush current	Cold start current 15A/115V 30A /230VAC
	Leakage current	<0.5mA/240VAC
Protection	Overload	Related output power 105-150% start overload protection
		Protection type: cutoff output, recovery after restart power
	Over voltage	5.75V-6.75V	13.8V-16.2V	17.2V-20.2V	27.6V-32.4V
		Hiccup mode,recovers automatically after fault condition
Environment	Working temp humidity	-10~+60°C 20%~90%RH
	Stor temp, humidity	-20~+85°C 20%~90%RH Non-condensing
Safety	Withstand voltage	I/P-O/P:1.5KVAC 1min
		I/P-FG:1.5KVAC 1min
		O/P-FG:0.5KVAC 1min
Standard	Safety standard	Fit UL1012
	Refer	Design refer to GB4943,UL60950,EN60950
	EMC standard	Design refer to GB9254,EN55022 Class A
Size	size	L111W78H36mm
	Package	0.27kg, 70pcs/20kg
Note:1.All parameters not specially mentioned are measured at 230VAC input, related load and 25 degree f ambient temperature.2.Wave&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.3.Tolerance: includes set up tolerance, line regulation and load regulation.

Inner Structure

Certifications

Our Services

1.Your email will be replied with 24 hours

2.All qustions will be answered by our power supply engineer.

3.We have strictly management on the production and quality control.

4.We are real factory and have professional engineer team,can provide cust service.

>More than 500 pieces,can print logo on the products.

>More than 2000 pieces,can customize the package.

5.We have independent IMP&EMP rights.

6.Sample available.

7.Warranty Clarify:

>Products found to be defective within 30 days from the date of receipt can be returned for credit or exchange.After the initial 30 days,XIMENG will repair the goods according to our warranty period.

>We will send a new one to you if product can't work as quality problem in first year after comfirmation.

>If customers do the repair by themselves,XIMENG can provide reasonable quantity free components for repair purpose.

8.Shipping methods:By sea,by air,by express.

9.Customized accepted.

>Power:15W,25W,35W,50W,60W,75W,100W,120W,145W,150W,180W,200W,201W,250W,320W,350W,400W,500W,600W,800W,1000W,1200W,1500W,3000W.

>Output voltage:5V,9V,12V,15V,24V,36V,48V.

>Frequency:47-63Hz
