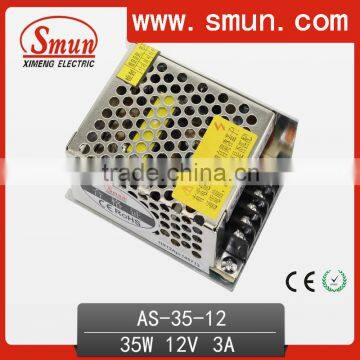

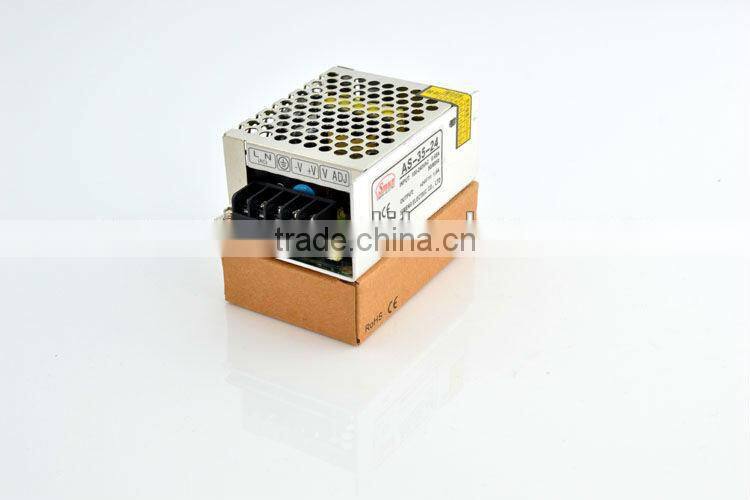

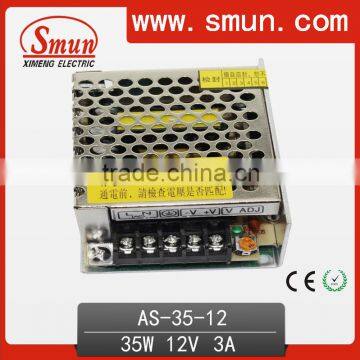

35W12V small volume single output switching power supply

FOB Price

US$ 4 - 7 / Piece

10 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.Brief description and advantage:

100% full load burn-in test

Protections:short circuit,over load,over current,over temperature

High efficiency,low ripple noise

One year warranty

2. Specification:

AS-35W small volume Single output switching power supply
Model NO.	OUTPUT	Tolerance	range	efficiency
AS-35-5	5V,0-7A	±1%	100mV	70%
AS-35-12	12V,0-3A	±1%	100mV	76%
AS-35-15	15V,2.4A	±1%	100mv	78%
AS-35-24	24V,0-1.5A	±1%	100mV	78%
AC input voltage range		85-132vac/170-264vac 47-63hz 240-370vdc
input current		0.45A/230V
AC inrush current		Cold-start current 36A/230V
Leakage current		<2mA/240VAC
DC adjustable range		±10% rated output voltage
Over load protection		105-150%cut down output, auto-recovery
over-voltage protection		115-135%
set up, rise,hold up time:		200ms,100ms 30ms
withstand voltage:		I/P-O/P:1.5KVAC 1Minutes I/P-FG:1.5KVAC 1MInutes O/P-FG:0.5VAC 1minutes
working temperature		-10~+60°C,20-90%RH
weight/packing:		0.16kg,80pcs/12.8kg
Size		845737.5
certificate		CE ISO9000 ROHS
Warranty year		1 year
Protections		Short circuit / Over load / Over voltage

ducts

4. certificate

5. factory
