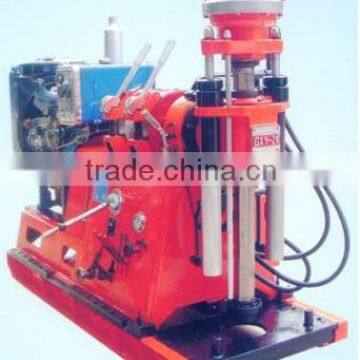

SK GXY-2K portable water well drilling rig for sale

Specifications

GXY-2k model drilling rig is suitable for water well drilling, industrial and civilian construction, road, railway, bridge foundation, dam site, mine exploration and other engineering exploring works, as well as small diamter foundation piles. It can choose tungsten-carbide, diamond, auger drill bit according to various strata. This rig features compact structure, light weight, small size and easy disassembling.

Basic Specification

drill depth:                         200m

drill rod diameter:            42mm / 50mm

hole inclination:                0~360⁰

dimension:                         1856 x 780 x 1460mm (L X W X H)

weight:                                800kg (without power machine)

Gyrator

vertical shaft hole diamter:                46mm

vertical shaft rotation speed:

forward low speed:                             56, 97, 153, 211 rpm

high speed:                                          264, 458, 722, 996 rpm

reverse low speed:                             44 rpm

high speed:                                          206 rpm

vertical shaft stroke:                            500mm

vertical shaft rated lifting force:          49KN

vertical shaft rated pressure force:   36KN

vertical shaft max. torque:                   1800N.m

Hoist

max. lifting ability (low speed single rope):        20KN

reel speed:                                                                34, 59, 94, 129 rpm

steel rope lifting speed( single rope):                  0.38, 0.66, 1.05, 1.44 m/s

steel rope OD:                                                           9.3mm

steel rope length:                                                      465m

Moving device

moving cylinder stroke:                              465mm

gap between rig and hole:                        330mm

power:

Y160L-15-4 electric motor        15Kw, 1470rpm

2100 diesel                                  14.6Kw, 1500rpm
