used for blasting hole Full hydraulic anchoring drilling equipment SKMG40

 Product Feature

Cycloid type reducer,rotary motor power:7.5KW,pump station electric engine:4KW,adopt oil-cool radiating,hydra-cylinder and chain propelled,fast plug type connector,with fast propelled function,super-thick guide rail and wear-resisting plate.Suitable for in big hole or can't form the hole, deeper depth,geological structure complex projects.Drill rod is 60 or 70,with light weight,convenient to carry,easy to operate.

Product advantage

1, simple up and down device

   The simple up and down device can adjust the horizontal height of anchor cable hole easily.

   Wear resisting Nylon plate can prevent guide track from wearing when power head operates.

 2, reliable power head

 Cycloidal gear reductor and electric motor forms power head. The power and torque transmit is stable and big.

 The air packet is the air source inlet of impactor, in the meanwhile it can reduce the impact of power head from drilling rod.

 3, reliable propulsion device

  This device adopts hydro-cylinder and chain propulsion with compact structure, big lifting force and good stability.

 4, centralized control system

  Electric operating and rock drilling work are both centralized controled. It is convenience and fast.

  The unidirection throttle valve can adjust feeding speed at any time.

  Propulsion reducing valve hand wheel can adjust propulsion force as per different working situation.

Main Technical Parameters

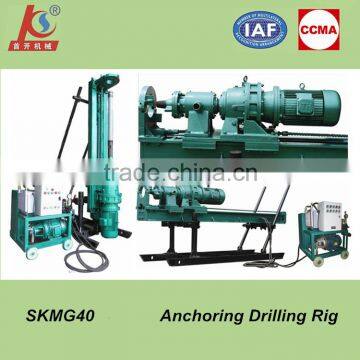

 Product Picture
