SKMG40 anchoring pipe-shed hole drilling rig for tunnel

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Rotary Drilling Rig
Power Type	Electric	Place of Origin	Hubei, China
Brand Name	shoukai	Model Number	SKMG40
Usage	Ore	Voltage	380v
Power(W)	5.5KW / 7.5KW	Dimension(LWH)	2800x800x1400mm
Weight	500kg	Certification	ISO9001-2008
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

Features:

1, simple up and down device

The simple up and down device can adjust the horizontal height of anchor cable hole easily.

Wear resisting Nylon plate can prevent guide track from wearing when power head operates.

2, reliable power head

Cycloidal gear reductor and electric motor forms power head. The power and torque transmit is stable and big.

The air packet is the air source inlet of impactor, in the meanwhile it can reduce the impact of power head from drilling rod.

3, reliable propulsion device

This device adopts hydro-cylinder and chain propulsion with compact structure, big lifting force and good stability.

4, centralized control system

Electric operating and rock drilling work are both centralized controled. It is convenience and fast.

The unidirection throttle valve can adjust feeding speed at any time.

Propulsion reducing valve hand wheel can adjust propulsion force as per different working situation.

Technical parameters:

model	SKMG40
bore depth	10~60m
bore diameter	90~180mm
drilling rod diameter	Φ76 x 1500mm
bore dip angle	0~90°
power head torque	2400N·m
max. lifting force	25KN
max. propulsion force	0~20KN
electric motor power for power head	5.5kw or 7.5kw
electric motor power for hydraulic system	4kw
weight	500kg
max. component weight	150kg
overall dimension	2800x800x1400mm

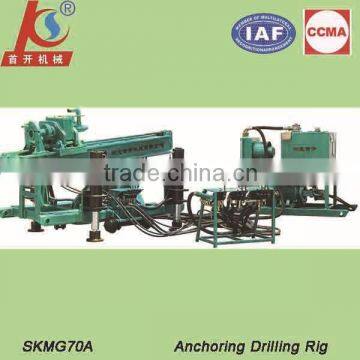

Pictures:
