SKMG70 anchor bolt drilling machine
- shanghai guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Condition | New | Type | Core Drilling Rig | |
Power Type | Electric | Place of Origin | Hubei, China | |
Brand Name | shoukai | Model Number | SKMG70 | |
Usage | Water Well | Voltage | 380v | |
Power(W) | 22kw | Dimension(L*W*H) | 3100x1000x1500mm | |
Weight | 1400kg | Certification | ISO9001-2008 | |
Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

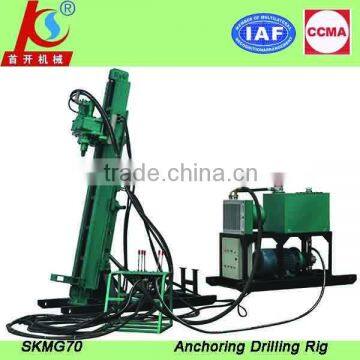

SKMG70 anchor bolt drilling machine
1, convenient up and down adjust mechanism
The up and down hydro-cylinder can adjust the angle of guide rail fast to satisfy drilling requirements from different angles.
The compensation hydro-cylinder can guarantee the guide rail to stand vertically on the ground when making vertical drilling.
2, strong power head
3, power components
3-phase asynchronous electric motor and double connect gear oil pump provide power for drillng rig.
4, centralized control bench
The control bench far from drilling rig can protect the safety of operator.
The centralized control metal stick makes the controlling of drilling rig easy and convenience.
Advanced hydraulic system can realize drilling rig rotating and feeding fast.
5, reliable propulsion device
It adopts hydro-cylinder feeding pattern with compact structure, big lifting force and good stability
6, compact hydraulic station
This hydraulic station provides transmit media for hydraulic system.
The radiator can reduce the oil temperature efficiently to avoid hydraulic oil from changing to low viscosity or destroyed because of the very high temperature of oil.
The electric control box can protect the electric motor to operate safely.
model | SKMG70 |
bore depth | 35~100m |
bore diameter | 110~230mm |
drilling rod diameter | Φ76 x 1500mm, Φ89 x 1500mm |
bore dip angle | 0~90° |
power head rotating speed | 0~50rpm |
power head torque | 3900N·m |
propulsion stroke | 1800mm |
mast stroke | 500mm |
max. lifting force | 30KN |
max. propulsion force | 25KN |
electric motor power | 22kw |
weight | 1400kg |
overall dimension | 3100x1000x1500mm |
Hubei Shoukai Machinery Co., Ltd. is one of the biggest drilling rig manufacturer in China. Established in 2004, located in Huangjinshan Industrial Park, covering an area of over 40,000 square meters, our company specialized in R&D, manufacturing and marketing drilling rigs. We now have more than 300 varieties of six categories, with an annual production capacity of more than 10,000 sets. "Shoukai" brand down-the-hole drilling rigs series, anchoring drilling rig series, crawler DTH drilling carriage series, pneumatic motor series, water well drilling rig series and core drilling rig series are widely applied to water conservancy, mining, quarrying, photovoltaic pile, anti-floating, city foundation piles, transportation, construction, shipbuilding and other projects. Our sales network is all over the country, with more than 400 sales distributors and shops, so as to offer customers best pre-sales and after-sales service. Our product features light weight, fast speed, safe, reliable, simple structure and easy to use, exported to South Africa, North America, the Middle East and Southeast Asia, gain high praise both in China and abroad.
Why to choose us?
1. Our annual output 10000 sets fully meet customers' requirements.
2.We are the member of CCMA (China Construction Machinery Association).
3. We gained the title of National High and New Technology Enterprise by The Government.
4. Our Products has obtained ISO9001:2008 management system certification
5. We focus on development and earn several Utility Model Patent Certificates.
6. We are always try best to answer your pre-sales and after sales questions.
Welcome dear customers choose our Shoukai drilling machinery, we hope to offer you best service and establish a good cooperation with friends all over the world!
Shoukai drilling machines have been delivered to North America, South Africa, Middle East and the Southeast Asia for several years.
We've owned good reputation from long-time customers both in domestic and abroad.
So we hope to establish good cooperation with more and more friends all over the world. We treat every customers as friends, so the best thing we wish is hearing you've received our machines well and are using our machines well.
We appreciate all your feedbacks. Thank you!
