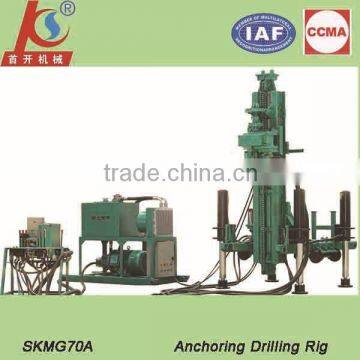

SKMG70A drill chuck anchor drilling machine
- shanghai guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
SKMG50 pile anchor drilling blasting machine
-
hot sale mining drill ! Hydraulic type anchoring drill machine
-
SKMG70 less power consumption anchoring hole drill rig for sale
-
New condition! SKMG50 mining borehole anchor drilling machine
-
Shoukai brand blast hole SKMG40 hydraulic anchoring drilling machine
-
Factory hot selling ! rock anchoring hole drilling machine SKMG40
Product Details
Condition | New | Type | Other, impact drilling rig | |
Power Type | Electric | Place of Origin | Hubei, China | |
Brand Name | shoukai | Model Number | SKMG70A | |
Usage | Water Well | Voltage | 380v | |
Power(W) | 22kw | Dimension(L*W*H) | 3100x1000x1500mm | |
Weight | 1400kg | Certification | ISO9001-2008 | |
Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Anchor drilling machine
1, strong power head
Cycloid motor and gear reductor forms drilling rig's strong power head, Transmit is stable with big torque.
Wear resisting Nylon plate avoids guide rail from wearing when power head operates.
2, flexible chassis
Choosing different mine wheel components in accordance with different gauge in the tunnel to make the drilling rig move its position. Four support hydro-cylinders can move individually. It can adjust the horizontality and verticality of guide rail fast so that the rig can drill high precise horizontal bore and vertical bore.
The height of horizontal bore can be largely improved when four support hydro-cylinder move at the same time.
3, support hydro-cylinder control valve
This will allow the four supportive hydro-cylinders to move as you wish. operator can adjust drilling rig's position or bore position conveniently.
4, reliable propulsion device
It adopts hydro-cylinder and chain feeding pattern with compact structure, big lifting force and good stability
model | SKMG70A |
horizontal bore depth | 35~80m |
vertical bore depth | 50m |
bore diameter | 110~230mm |
drilling rod diameter | Φ76 x 1500mm, Φ89 x 1500mm |
bore dip angle | 0~90° |
whole rig horizontal up and down | 350mm |
power head torque | 3900N·m |
propulsion stroke | 1800mm |
mast stroke | 500mm |
max. lifting force | 30KN |
max. propulsion force | 25KN |
electric motor power | 22kw |
weight | 1400kg |
overall dimension | 3100x1000x1500mm |
Shoukai drilling machines have been delivered to North America, South Africa, Middle East and the Southeast Asia for several years.
We've owned good reputation from long-time customers both in domestic and abroad.
So we hope to establish good cooperation with more and more friends all over the world. We treat every customers as friends, so the best thing we wish is hearing you've received our machines well and are using our machines well.
We appreciate all your feedbacks. Thank you!
Every time, we'll take pictures before we delivery the machines for you, as the above pictures. Hope every friends see the machine status before sea shipping.
Our sales network is all over the country, with more than 400 sales distributors and shops, so as to offer customers best pre-sales and after-sales service.
Any question, please feel free to contact us.
We'll try our best to offer you best information at the first time we receive your emails.
Warmly welcome dear friends to visit our factory, we hope to offer you best services.
Hubei Shoukai Machinery Co., Ltd. is one of the biggest drilling rig manufacturer in China. Established in 2004, located in Huangjinshan Industrial Park, covering an area of over 40,000 square meters, our company specialized in R&D, manufacturing and marketing drilling rigs. We now have more than 300 varieties of six categories, with an annual production capacity of more than 10,000 sets. "Shoukai" brand down-the-hole drilling rigs series, anchoring drilling rig series, crawler DTH drilling carriage series, pneumatic motor series, water well drilling rig series and core drilling rig series are widely applied to water conservancy, mining, quarrying, photovoltaic pile, anti-floating, city foundation piles, transportation, construction, shipbuilding and other projects. Our sales network is all over the country, with more than 400 sales distributors and shops, so as to offer customers best pre-sales and after-sales service. Our product features light weight, fast speed, safe, reliable, simple structure and easy to use, exported to South Africa, North America, the Middle East and Southeast Asia, gain high praise both in China and abroad.
Why to choose us?
1. Our annual output 10000 sets fully meet customers' requirements.
2. We are the member of CCMA (China Construction Machinery Association).
3. We gained the title of National High and New Technology Enterprise by The Government.
4. Our Products has obtained ISO9001:2008 management system certification
5. We focus on development and earn several Utility Model Patent Certificates.
6. We are always try best to answer your pre-sales and after sales questions.
Welcome dear customers choose our Shoukai drilling machinery, we hope to offer you best service and establish a good cooperation with friends all over the world!
