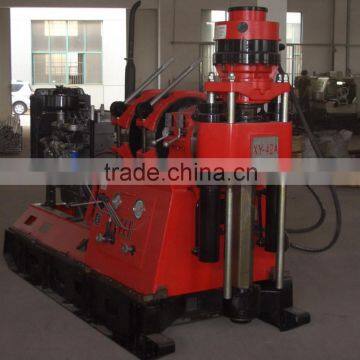

SK XY-42A Water Well Rotary Drilling Rig for Sale

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port shanghai guangzhou
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Rotary Drilling Rig
Power Type	Diesel	Place of Origin	Hubei, China
Brand Name	shoukai	Model Number	XY-42A
Usage	Water Well	Power(W)	42Kw/30Kw
Dimension(LWH)	2730 x 1100 x 1860mm	Weight	2.0 Tons
Certification	ISO	Warranty	6-month
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

drilling rig XY-42A is mainly adapted to water well, core sampling, engineering exploration, foundation piles with mud pump

1, It is an improved product based on XY-42 drilling rig.

2, It adopts guide rod structure besides all the technical characteristic and advantages of XY-42 model.

3, it is a kind of hydraulic-driven spindle, diamond-bit or tungsten-carbide bit, small-diameter core drill with fairly powerful drilling force.

4, It is mainly suitable for water well and exploration of metal or non-metal solid mineral ore bed.

5, It is widely applied in core drill with diamond bit or hard tungsten-carbide-tipped bit in the field of geology, metallurgy, coal mine, hydrological and engineering drilling.

6, It can also be used in the fields of superficial-zone petroleum and natural gas mining, mine workings ventilation and water discharge tunnel drilling as well as foundation pile construction in large diameter.

7, the structure is compact, light weight, powerful capacity, multiuse, steady performance, high responsibility and high standardization and generalization.

Bore depth	core drilling 500~1100m
	foundation pile 100m
	water well 200m
spindle rotation angle	0~360°
spindle rotary speed	forward 82, 151, 215, 313, 251, 463, 661, 961 rpm
spindle rotary speed	reverse 67, 205 rpm
spindle max. rotary torque	3200N.m
spindle stroke	600mm
ID of spindle	93mm
power	electric motor 30kW, diesel 42KW
spindle max. lifting force	80KN
spindle max. pressuring force	60KN
overall dimension (L X W X H)	2730 x 1100 x 1860mm
steel wire diameter	16mm
steel wire length in winding drum	90m
max. hoist force	30KN
Weight (without power unit)	2000kg
