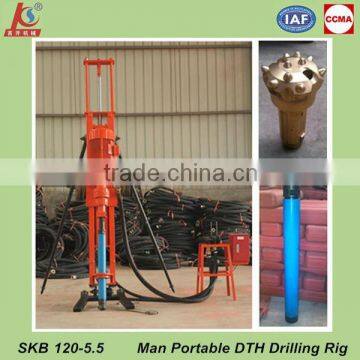

SKB120-5.5 mini drill rig
- 50 Set / Sets per Month
- Wuhan or any other port in China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Place of Origin | Hubei, China | Brand Name | Shoukai | |
Model Number | SKB120-5.5 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Details description of SKB120-5.5 mini drill rig:
1, It is a new rock drilling equipment with energy saving, high efficiency designed by ourselves.
2, It is widely applied to larg, medium and small mining, road, national defence, water conservancy, big stone project and side slope engineering, etc for blasthole drilling. It's also a necessary rock drilling equipment for earlier exploration of open pit mine.
3, It is specially useful for rugged and accidented areas where other DTH drilling rig can not work normally.
4, This drilling rig features compact structure, easy operating, fast drilling, high efficiency, easy to disassemble and very convenience for carrying.
Main technical parameter of mini drill rig:
model | SKB120-5.5 |
bore diameter | 85~130mm |
bore depth | 30~40m |
rock hardness | f = 8~16 |
rotating speed (without load) | 90r/min |
working air pressure | 0.5~1.0Mpa |
air consumption | 7m3 / min |
feeding stroke | 1200mm |
lifting force | 9600N |
electric motor power | 5.5kw |
electric motor voltage | 380V |
drilling rod length | 1025mm |
engine | electric |
recommended matched power | 10 / 7 |
Shoukai drilling rigs delivery to Australia, South Africa, and the Southeast Asia.
We'll take pictures every time before we delivery the machines for you.
Hubei Shoukai Machinery Co., Ltd. is one of the biggest drilling rig manufacturer in China. Established in 2004, located in Huangjinshan Industrial Park, covering an area of over 40,000 square meters, our company specialized in R&D, manufacturing and marketing drilling rigs. We now have more than 300 varieties of six categories, with an annual production capacity of more than 10,000 sets. "Shoukai" brand down-the-hole drilling rigs series, anchoring drilling rig series, crawler DTH drilling carriage series, pneumatic motor series, water well drilling rig series and core drilling rig series are widely applied to water conservancy, mining, quarrying, photovoltaic pile, anti-floating, city foundation piles, transportation, construction, shipbuilding and other projects. Our sales network is all over the country, with more than 400 sales distributors and shops, so as to offer customers best pre-sales and after-sales service. Our product features light weight, fast speed, safe, reliable, simple structure and easy to use, exported to South Africa, North America, the Middle East and Southeast Asia, gain high praise both in China and abroad.
Why to choose us?
1. Our annual output 10000 sets fully meet customers' requirements.
2. We are the member of CCMA (China Construction Machinery Association).
3. We gained the title of National High and New Technology Enterprise by The Government.
4. Our Products has obtained ISO9001:2008 management system certification
5. We focus on development and earn several Utility Model Patent Certificates.
6. We are always try best to answer your pre-sales and after sales questions.
Welcome dear customers choose our Shoukai drilling machinery, we hope to offer you best service and establish a good cooperation with friends all over the world!
Our sales network is all over the country, with more than 400 sales distributors and shops, so as to offer customers best pre-sales and after-sales service.
Any question, please feel free to contact us anytime.
We'll try best to help you well as soon as possible.
Also welcome to visit our factory, we hope to offer you best service.
We go in for international trade shows several times every year.
So as to meet friends all over the word, and offer you best service face to face.
