SKQ70 Pneumatic Auto Feed Drilling Machine
- Shanghai Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
SKB100-4 Down-hole Battery Hammer Drill
-
SKB120-5.5 Electric Down the Hole Hammer Drilling Boring Machine
-
SKD100 DTH Affordable High Quality Small Mud Drill Rig
-
Top Selling ! High Quality ! SKD70 Blasting Hole Drill Rig Price
-
Top Selling ! Simple Operate SKD70 Portable Bore Hole Drilling Machine
-
Top Selling ! High Quality ! SKD70 Portable Mini Electric Drilling Equipment Quality Choice
Product Details
Place of Origin | Hubei, China | Brand Name | Shoukai | |
Model Number | SKQ70 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

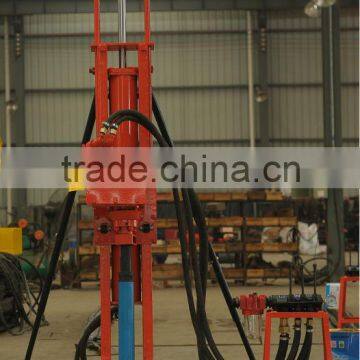

SKQ70 Pneumatic auto feed drilling machine
1, It is a new rock drilling equipment with energy saving, high efficiency designed by ourselves.
2, It is widely applied to larg, medium and small mining, road, national defence, water conservancy, big stone project and side slope working, etc for blasthole drilling. It's also a necessary rock drilling equipment for earlier explore of open air mine.
3, It is specially useful for rugged and accidented areas where other DTH drilling rig can not work normally.
4, This drilling rig features compact structure, easy operating, fast drilling, high efficiency, easy to disassemble and very convenience for carrying.
model | SKQ70 |
bore diameter | φ50-90mm |
bore depth | ≥15m |
rock hardness | ≥20 |
rotating speed (without load) | 110r/min |
working air pressure | 0.5~0.7Mpa |
air consumption | ≥6m3/min |
cylinder diameter | 90mm |
propulsion cylinder stroke | 1070mm |
lifting force | 3600N |
pneumatic motor | 3kW |
rated speed | 3200r/min |
drilling rod OD | φ42mm |
drilling rod length | 1025mm |
dimension | 1740×260×420mm |
weight | 150kg |
engine | pneumatic motor |
recommended matched power |
Shoukai drilling machines have been delivered to North America, South Africa, Middle East and the Southeast Asia for several years.
We've owned good reputation from long-time customers both in domestic and abroad.
So we hope to establish good cooperation with more and more friends all over the world. We treat every customers as friends, so the best thing we wish is hearing you've received our machines well and are using our machines well.
We appreciate all your feedbacks. Thank you!
Every time, we'll take pictures before we delivery the machines for you, as the above pictures. Hope every friends see the machine status before sea shipping
Hubei Shoukai Machinery Co., Ltd. is one of the biggest drilling rig manufacturer in China. Established in 2004, located in Huangjinshan Industrial Park, covering an area of over 40,000 square meters, our company specialized in R&D, manufacturing and marketing drilling rigs. We now have more than 300 varieties of six categories, with an annual production capacity of more than 10,000 sets. "Shoukai" brand down-the-hole drilling rigs series, anchoring drilling rig series, crawler DTH drilling carriage series, pneumatic motor series, water well drilling rig series and core drilling rig series are widely applied to water conservancy, mining, quarrying, photovoltaic pile, anti-floating, city foundation piles, transportation, construction, shipbuilding and other projects. Our sales network is all over the country, with more than 400 sales distributors and shops, so as to offer customers best pre-sales and after-sales service. Our product features light weight, fast speed, safe, reliable, simple structure and easy to use, exported to South Africa, North America, the Middle East and Southeast Asia, gain high praise both in China and abroad.
Why to choose us?
1. Our annual output 10000 sets fully meet customers' requirements.
2. We are the member of CCMA (China Construction Machinery Association).
3. We gained the title of National High and New Technology Enterprise by The Government.
4. Our Products has obtained ISO9001:2008 management system certification
5. We focus on development and earn several Utility Model Patent Certificates.
6. We are always try best to answer your pre-sales and after sales questions.
Welcome dear customers choose our Shoukai drilling machinery, we hope to offer you best service and establish a good cooperation with friends all over the world!
