SKD100 electric energy saving dth drilling machine for rock
- 300 Set / Sets per Month
- Wuhan or any other port in China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
portable air motor rock drilling equipment SKQ100
-
SKQ70 pneumatic DTH drilling blasthole rock drilling machine
-
SKD80 electric type DTH drilling rig mining equipment
-
SKD70Electric type used for Railway & Mining portable DTH drilling rig
-
SKQ100 air pneumatic motor drilling rig for sale
-
Portable electric motor drilling machine SKD100
Product Details
Place of Origin | Hubei, China | Brand Name | Shoukai | |
Model Number | SKD100 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
‘Shoukai’ company down-the hole drilling rig series is a king of new model ,energy saving high effcency rock drilling eqipment designed by ourselves .It is widely used in big diameter blasthole rock drlling operation of mine, road,natioal defense,water coservancy, cubic rock projects and side
slop handing.It is also a necessary rock drilling equipment in early mining in open mine.It’s especially suitable for rugged and accident areas where other down-the-hole drilling carriage can not work normaly .This drilling rig features compact structure,easy handle,fast drilling speed ,high efficiency, good disassembling, easy to carry.
Product Advantage
1, It is a new rock drilling equipment with energy saving, high efficiency designed by ourselves.
2, It is widely applied to larg, medium and small mining, road, national defence, water conservancy, big stone project and side slope working, etc for blasthole drilling. It's also a necessary rock drilling equipment for earlier explore of open air mine.
3, It is specially useful for rugged and accidented areas where other DTH drilling rig can not work normally.
4, This drilling rig features compact structure, easy operating, fast drilling, high efficiency, easy to disassemble and very convenience for carrying.
Product Technical Parameter
model | SKD100 |
bore diameter | 90~130mm |
apply rock | ≥20 |
bore depth | ≥25m |
rotating speed (without load) | 84r/min |
working air pressure | 0.5~0.7Mpa |
air consumption | 6m3 / min |
cylinder diameter | 140mm |
propulsion cylinder stroke | 1070mm |
lifting force | 9600N |
electric motor power | 4KW |
electric motor voltage | 380V |
rated speed | 1440r/min |
drilling rod OD | 50-60mm |
drilling rod length | 1025mm |
dimension | 2230*380*550mm |
weight | 450kg |
engine | electric motor |
recommended matched power | 7 / 7 |

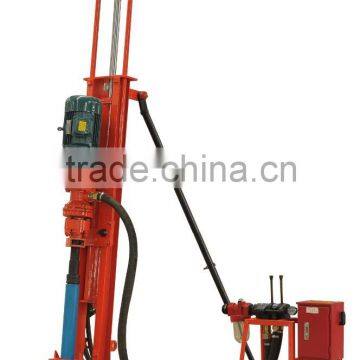

Product Pictures
Drill tool parts:
1.Hammer 2. Mast 3. Control console 4. Air hose 5.Drill bit
6. Support leg 7.Power head 8.Drill rod 9. Transmission joint
"Shoukai " Brand Drilling Rig exported to Australia, South Africa, Vietnam, Philippines and other countries in the world.
Hubei Shoukai Machinery Co., Ltd. is one of the biggest drilling rig manufacturer in China. Established in 2004, located in Huangjinshan Industrial Park,Huangshi city Hubei province, covering an area of over 40,000 square meters,our company has grown into a set of welding product ,machiningand assembly for the integration of large-scale ,professional drilling equipment manufacturing enterprises .Now we have more than 300 varieties of six categories, with an annual production capacity of more than 10,000 sets. "Shoukai" brand down-the-hole drilling rigs series, anchoring drilling rig series, crawler DTH drilling carriage series, pneumatic motor series, water well drilling rig series and core drilling rig series are widely applied to water conservancy, mining, quarrying, photovoltaic pile, anti-floating, city foundation piles, transportation, construction, shipbuilding and other projects. Our product features light weight, fast speed, safe, reliable, simple structure and easy to use.Our sales network is all over the country, with more than 400 sales distributors and shops, so as to offer customers best pre-sales and after-sales service. exported to South Africa, North America, the Middle East and Southeast Asia, gain high praise both in China and abroad.
Why to choose us?
1. Our annual output 10000 sets fully meet customers' requirements.
2. We are the member of CCMA (China Construction Machinery Association).
3. We gained the title of National High and New Technology Enterprise by The Government.
4. Our Products has obtained ISO9001:2008 management system certification
5. Our company has CNC cutting machine, CNC boring machine, CNC machine tools and various manufacturing equipment, has strong ability of new product development and manufacturing.
6.We focus on development and earn several Utility Model Patent Certificates.
7. We are always try best to answer your pre-sales and after sales questions.
Welcome dear customers choose our Shoukai drilling machinery, we hope to offer you best service and establish a good cooperation with friends all over the world!
