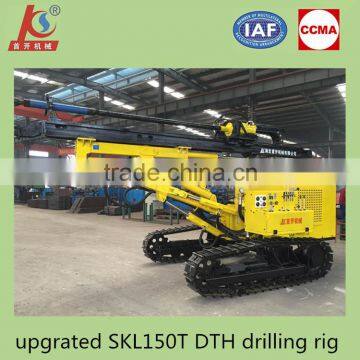

SKM150T Diesel type Crawler open down-the-hole drilling machine

"Shoukai "brand open down-the hole drill rig series products are based on the introduction of foreign advanced technology, according to the characteristics of the open-pit mine designed a new type of self-propelled drilling equipment, widely used in quarry, railway, highway, water and electricity, in open-pit mine, and construction engineering, including deep hole drilling operation, which can realize drilling horizontal, vertical and inclined hole blasting,  presplit hole and anchor cable (rod) hole drilling.

Specifications

1,high quality, low price
2,high torque rotary power head
3,advanced hydraulic motot, less malfunction
4,hybrid engine.

use hydro-cyclinder chain pully propulsion system, compact structure, big lifting force and stablity.

2, centralized controls system

 It features advanced hydraulic system and air way system, All moves are centralized controlled, easy and convenience.

 conducting hydraulic valve to realize different moves of drill arm, guarantee drilling rig stable and high efficiency for rock drilling.

 The special designed unidirection throttle valve in the hydraulic system can realize stepless speed regulating for rotating, to increase applicability for various rock layers and work efficiency.

3, reliable matched power

 providing YC2115  diesel engine for this drilling rig.

water tank and hydraulic oil radiator guarantees diesel and drilling rig hydraulic system operating safely and reliably.

single connected gear pump provides driving force for propulsion system and rotating system respectively via diverter valve, The hydraulic system is more stalbe and reliable.

4, air lubricator

 The specialized air lubricator atomize lubricant using ari source from air compressor and send to impactor. It will lubricate and protect the impactor reliably and prolong impactor's working life.

5, strong power head

 Slewing drive adopts planetary gear reductor and oscillating motor with foreign advanced technique. It moves stably with low speed and high torque.

6, diesel protection device

 natural inhaling system combines of desert air filter, second air filter and oil filter to improve  the applicability for hostile environment and working life of diesel

The drilling rig uses clean air source from air compressor and disconnect the natural inhaling way of diesel.

Unidirection throttle valve can adjust and stablize air inflow of diesel.

air dryer can remove the water of air source of air compressor efficiently.

7,reliable four wheel and one belt

integrated crawler belt installs conveniently with reliable performance.

care chain wheel, tensioner spring and turgor cylinder can guarantee suitable crawler belt tensioner degree.

 Product Technical Parameters

Product Picture
