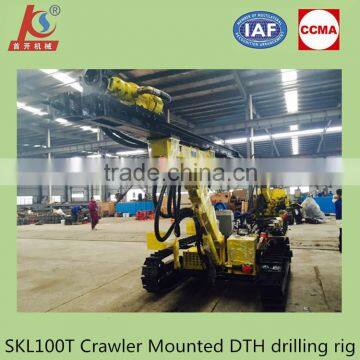

Crawler open DTH drilling SKL100T self-propelled drilling equipment

"Shoukai "brand open down the hole drill rig series products are based on the introduction of

foreign advanced technology, according to the characteristics of the open-pit mine designed a new

type of self propelled drilling equipment, widely used in quarry, railway, highway, water and electricity,

in open-pit mine, and construction engineering, including deep hole drilling operation, which can

realize drilling horizontal, vertical and inclined hole blasting,  presplit hole and anchor cable (rod) hole drilling.

Specifications of Crawler open down-the-hole drilling

 2,low initial invesment
 3,low speed and high torque engine
 4,hight climbing ability

1, centralized controls system

 It features advanced hydraulic system and air way system, All moves are centralized controlled, easy and convenience.

 conducting hydraulic valve to realize different moves of drill arm, guarantee drilling rig stable and high efficiency for rock drilling.

 The special designed unidirection throttle valve in the hydraulic system can realize stepless speed regulating for rotating, to increase applicability for various rock layers and work efficiency.

2, reliable matched power

 providing YC2108  diesel engine for this drilling rig.

water tank and hydraulic oil radiator guarantees diesel and drilling rig hydraulic system operating safely and reliably.

single connected gear pump provides driving force for propulsion system and rotating system respectively via diverter valve, The hydraulic system is more stalbe and reliable.

3, strong power head

 Slewing drive adopts planetary gear reductor and oscillating motor with foreign advanced technique. It moves stably with low speed and high torque.

4, diesel protection device

 natural inhaling system combines of desert air filter, second air filter and oil filter to improve  the applicability for hostile environment and working life of diesel

The drilling rig uses clean air source from air compressor and disconnect the natural inhaling way of diesel.

Unidirection throttle valve can adjust and stablize air inflow of diesel.

air dryer can remove the water of air source of air compressor efficiently.

5,reliable four wheel and one belt

 integrated crawler belt installs conveniently with reliable performance.

 care chain wheel, tensioner spring and turgor cylinder can guarantee suitable crawler belt tensioner degree.

Main Technical Parameters of SKL100T
