Home > Products > crawler mounted dth drilling rig > Blasting hole drilling! Crawler DTH Blast Hole Drilling Equipment ---- SKH300

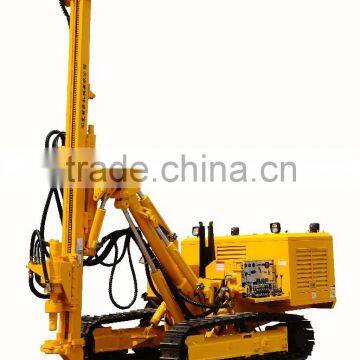

Blasting hole drilling! Crawler DTH Blast Hole Drilling Equipment ---- SKH300
- Shanghai Wuhan
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
factory price 30m Depth multi-function Crawler Hydraulic Drilling Rig DTH drilling
-
China Drilling SKM230 Crawler Hydraulic Blast Hole DTH Drilling Rig
-
Shoukai SKM200 four cylinder diesel engine DTH crawler efficient drilling equipment
-
Diesel Engine SKM150 Crawler DTH Drill Supplier
-
30m Depth Crawler Hydraulic down the hole Drilling Rig DTH drilling
-
83-130mm hole crawler dth double-cylinder diesel engine drilling rig machine
Product Details
Place of Origin | Hubei, China | Brand Name | Shoukai | |
Model Number | SKH300 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1, centralized controls system
The drilling rig has reliable hydraulic control system, All moves are centralized controled which makes it easy and convenience.
user can monitor all operating figures of diesel through dash board to make diesel runs safely and reliably.
The special hydraulic system insures that the rig moves fast in the condition of site transffer and/or withdraw from special situation.
This control system can adjust the feeding speed at any time based on different working contidions and rock layers to insure it drill the rocks with high efficiency.
quick lifting function can shorten assistant working time and improve work efficiency.
2, strong matched power
It adopts turbo four-cylinder diesel to provide strong power.
The humanization design of installation for engine part makes maintenance and repair faster and more convenience.
Hood of engine part has beautiful apperance and will protect the safety of inhaling for diesel engine utmost.
The floodlight on the top of hood can insure the rig work and move safely in the night.
3, stable and reliable propulsion power
Worm gear reductor and cycloid motor forms the propulsion of the drilling rig
The huge speed ratio of worm gear reductor makes the rig has sufficient propulsion and lifting force.
The self-latching function of worm gear reductor can insure the drill part stops at any height when lifting.
4, strong power head
The power head transmits stably with big torque by adopting planetary gear reductor and oscillating motor.
The tailor made bumper can reduce power head's impact from drilling part when percussive drilling.
Power head use idler wheel to guide direction when operating. It reduces the abrasion to guide rail and runns stably and maintains conveniently.
5, safe and stable walking mechanism
The big ground clearance makes the drilling rig excellent obatacle crossing capability.
The advanced hydraulic propelling deivce insures it has sufficient traction and climbing ability.
The suitable width of crawler belt makes it can go through easily on soft and muddy road.
rock hardness | f=6~20 |
bore diameter | 90~165mm |
bore horizontal depth | 35m |
hightest horizontal bore | 3.5m |
crawler speed (dual speed) | 2.5km/h, 3.5km/h |
climbing ability | 30° |
rotating speed | 0~60r/min |
max. rotating torque | 4000N·m |
max. lifting force | 25,000N |
propulsion stroke | 3m |
working air pressure | 1.05~2.46Mpa |
air consumption | 11~21M3/ min |
carriage pitching angle | 135° |
carriage swing angle | right 35°, left 50° |
drill arm pitching angle | horizontal 60° - 19° |
drill arm swing angle | right 45°, left 45° |
diesel power | 70kw |
overall dimension(transportation) | 5300 x 2180 x 2400mm |
weight | 6.4 ton |
Product Picture
"Shoukai " Brand Drilling Rig exported to Australia, South Africa, Vietnam, Philippines and other countries in the world.
Hubei Shoukai Machinery Co., Ltd. is one of the biggest drilling rig manufacturer in China. Established in 2004, located in Huangjinshan Industrial Park,Huangshi city Hubei province, covering an area of over 40,000 square meters,our company has grown into a set of welding product ,machiningand assembly for the integration of large-scale ,professional drilling equipment manufacturing enterprises .Now we have more than 300 varieties of six categories, with an annual production capacity of more than 10,000 sets. "Shoukai" brand down-the-hole drilling rigs series, anchoring drilling rig series, crawler DTH drilling carriage series, pneumatic motor series, water well drilling rig series and core drilling rig series are widely applied to water conservancy, mining, quarrying, photovoltaic pile, anti-floating, city foundation piles, transportation, construction, shipbuilding and other projects. Our product features light weight, fast speed, safe, reliable, simple structure and easy to use.Our sales network is all over the country, with more than 400 sales distributors and shops, so as to offer customers best pre-sales and after-sales service. exported to South Africa, North America, the Middle East and Southeast Asia, gain high praise both in China and abroad.
Why to choose us?
1. Our annual output 10000 sets fully meet customers' requirements.
2. We are the member of CCMA (China Construction Machinery Association).
3. We gained the title of National High and New Technology Enterprise by The Government.
4. Our Products has obtained ISO9001:2008 management system certification
5. Our company has CNC cutting machine, CNC boring machine, CNC machine tools and various manufacturing equipment, has strong ability of new product development and manufacturing.
6.We focus on development and earn several Utility Model Patent Certificates.
7. We are always try best to answer your pre-sales and after sales questions.
Welcome dear customers choose our Shoukai drilling machinery, we hope to offer you best service and establish a good cooperation with friends all over the world!
