High Pressure Steel Wire Braided Hyraulic Rubber Hose
US$ 1 - 2
/ Meter
1 Meter(Min. Order)
- tianjin xingang
- Money Gram
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | pisker |
Product Description
Product Description
Wire Braid Hydraulic Hose: SAE 100 R1AT/DIN EN 853 1SN STANDARD
Tube : Oil resistant synthetic rubber
Reinforcement : one high tensile steel wire braid
Cover : Abrasion and weather resistant synthetic rubber
Temperature range : -40 °C to +100 °C
| DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Length | |||
| inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | metres | |
| 5 | 3/16 | 4.8 | 9.5 | 11.8 | 25.0 | 3630 | 100.0 | 14280 | 89 | 0.19 | 50/100 |
| 6 | 1/4 | 6.4 | 11.1 | 13.4 | 22.5 | 3270 | 90.0 | 12840 | 102 | 0.21 | 50/100 |
| 8 | 5/16 | 7.9 | 12.7 | 15.0 | 21.5 | 3120 | 85.0 | 12280 | 14 | 0.24 | 50/100 |
| 10 | 3/8 | 9.5 | 15.1 | 17.4 | 18.0 | 2615 | 72.0 | 10280 | 127 | 0.33 | 50/100 |
| 13 | 1/2 | 12.7 | 18.3 | 20.6 | 16.0 | 2320 | 64.0 | 9180 | 178 | 0.41 | 50/100 |
| 16 | 5/8 | 15.9 | 21.4 | 23.7 | 13.0 | 1890 | 52.0 | 7420 | 203 | 0.45 | 50/100 |
| 19 | 3/4 | 19.0 | 25.4 | 27.7 | 10.5 | 1530 | 42.0 | 6000 | 241 | 0.58 | 50/100 |
| 25 | 1 | 25.4 | 33.3 | 35.6 | 8.8 | 1280 | 35.0 | 5020 | 305 | 0.88 | 50 |
| 32 | 1 1/4 | 31.8 | 40.5 | 43.5 | 6.3 | 920 | 25.0 | 3600 | 419 | 1.23 | 20/40 |
| 38 | 1 1/2 | 38.1 | 46.8 | 50.6 | 5.0 | 730 | 20.0 | 2860 | 508 | 1.51 | 20/40 |
| 51 | 2 | 50.8 | 60.2 | 64.0 | 4.0 | 580 | 16.0 | 2280 | 635 | 1.97 | 20/40 |

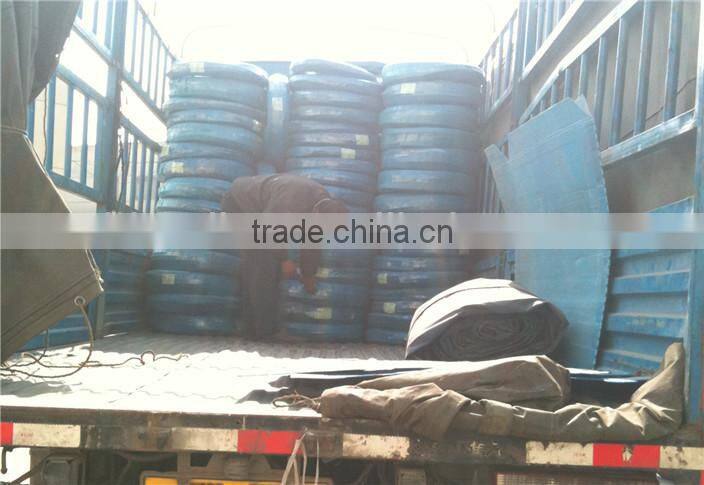

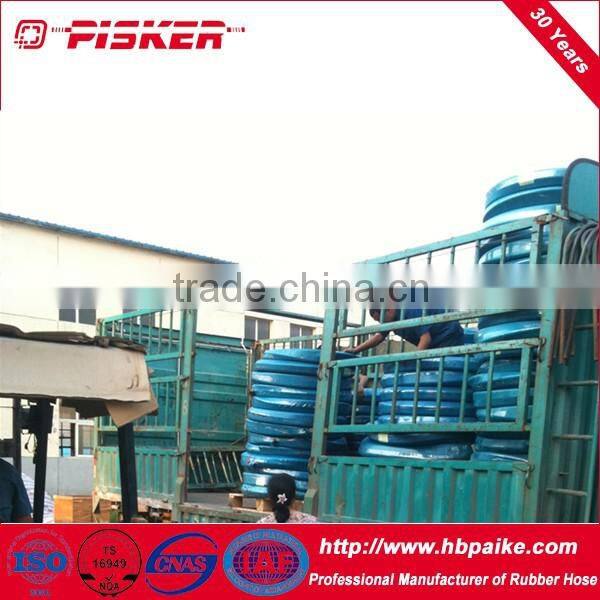

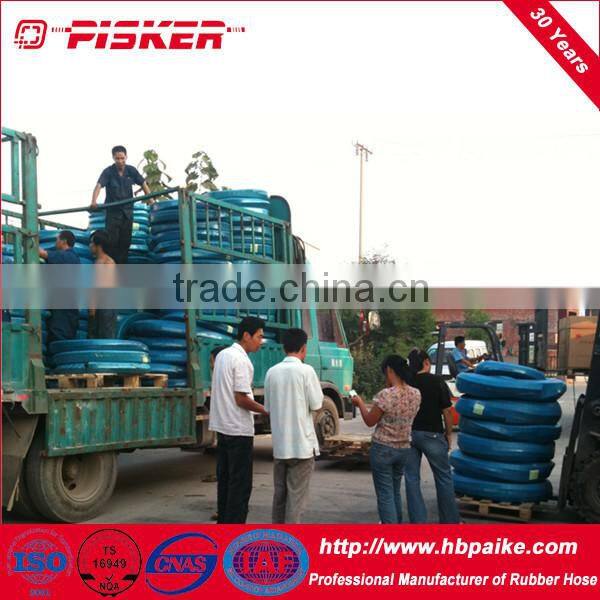

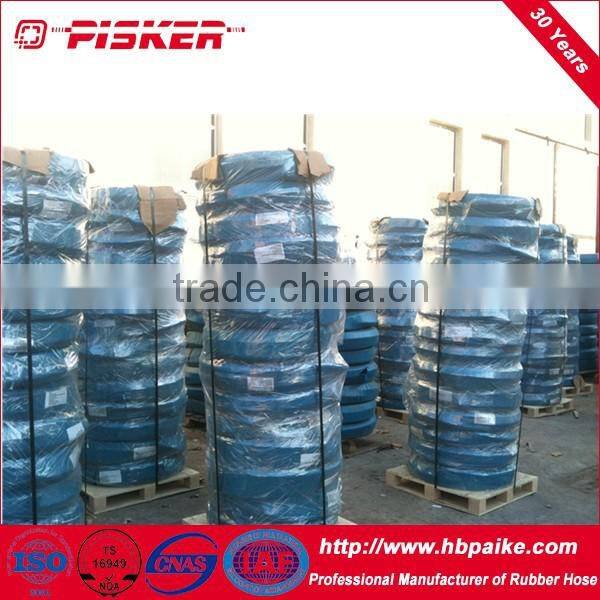

Packaging & Shipping
Our Services
Company Information
JIZHOU PARKER RUBBER HOSE CO,.LTD is a leading, professional & experienced supplier of hoses.
The Hose series include Hydraulic Hoses, Teflon Hoses, , Metal Flexible Hoses and Hose Fittings. All hoses are produced strictly under the standards of DIN EN and SAE 100.
Presently, we sell our products all over the world and have high prestige. We hope sincerely to cooperate with you. Contact us without any hesitation for more details.
hbpaike's tenets:
Consecutive Good Quality
The Lowest Prices
Timely Delivery
