Home > Products > Used Drilling Rig > Used YIMER AF200 Hydraulic Rotary Pile Drilling Rig

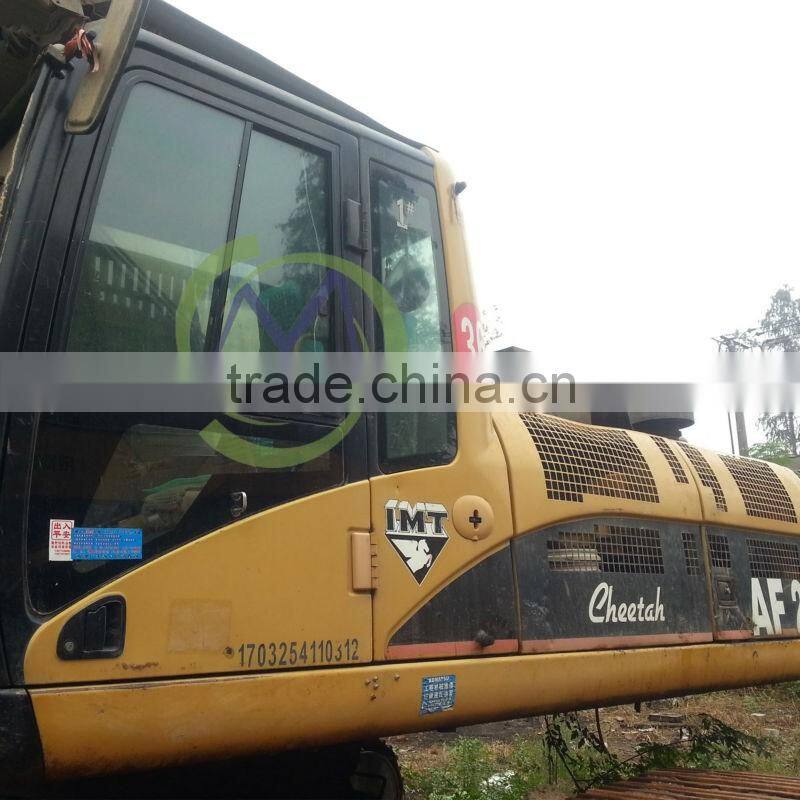

Used YIMER AF200 Hydraulic Rotary Pile Drilling Rig
- Shanghai or Tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Italy | Brand Name | YIMER | |
| Model Number | AF200 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Name
Used YIMER AF200 Hydraulic Rotary Pile Drilling Rig
Product Specification
| Max. Drilling Diameter | 1500mm |
| Max. Drilling Depth | 55m |
| Rotary Head | Max. Drilling Torque: 150KN.m Drilling Speed: 0-38rpm |
| Feed Cylinder | Max. Push: 160KN Max. Pull: 150KN Stroke of Sledge: 5m |
| Main Winch | Max. Pullforce: 160KN Max. Line Speed: 70m/min Rope Diameter: 28mm |
| Auxiliary Winch | Max. Pullforce: 50KN Max. Line Speed: 40m/min Rope Diameter: 16mm |
| Mast Tilting Angle | Sidewards Inclination: ±4° Forwards Inclination: 5° |
| Engine | Engine Type: 6BTA-C Rated Output: 133KW |
| Undercarriage | Width of Crawler: 800mm Towing Force: 245KN |
| Operating Weight | 48.5T |
| Features Size L×W×H | Working Appearance Size: 7570×4000×18440 Transport Dimensions: 12902×3000×3200 |
. International well-known brand,high quaility and advanced design.
. Professional rotary drilling rig repairment and maintenance firm,fine workmanship,experienced .
. Repairment group.Repairment for Bauer,Soilmec,IMT,CASAGRANDE and CMV.
. Fair price and good tracing service.
. Drilling tools,spare parts and related assistand product manufactruer and agent. Fairly discount in following trade.
Xuzhou Reman Construction Machinery Remanufacture Co., Ltd is located in xuzhou, the earliest place to research and development, production base of rotary drilling rigs in China. The company is specialized in selling new rotary drilling rigs, full -rotary drilling rigs and other piling machine; has complete industrial chain of researching and development, manufacturing and marketing various buckets, supply spare parts; also engages in evaluating and trading second-hand rotary drilling rigs.
Xuzhou Reman Construction Machinery Remanufacture Co., Ltd has many year's technical advantages, professional and experienced maintenance team; with moving maintenance shop--special vehicle for rigs field service; and advanced testing equipment, professional repairing workshop, spare parts warehouse, perfect testing methods and management system, all of these ensure the quality of our service and woke efficiency.
Professional rotary drillng rig service group is good at remanufacture and repairment.Complete product range including R412HD,R516,R518I,R518II,R518III,R622.
Certifications
Standard exporting packing, suitable for shipment.
Weclome to visit our website:reman.en.china.cn!
