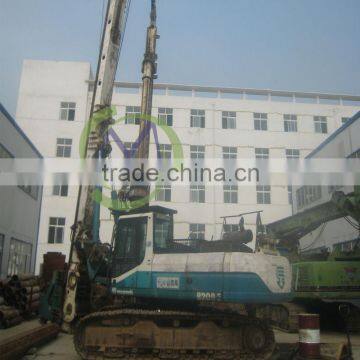

Used CASAGRANDE B200E Core Drilling Rig

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Italy		Brand Name	CASAGRANDE
Model Number	B200E		After-sales Service Provided	Engineers available to service machinery overseas

Product Name

Used CASAGRANDE B200E Core Drilling Rig

Product Specification

Max. Drilling Diameter	1500mm
Max. Drilling Depth	55m
Rotary Head	Max. Drilling Torque: 150KN.m Drilling Speed: 0-38rpm
Feed Cylinder	Max. Push: 160KN Max. Pull: 150KN Stroke of Sledge: 5m
Main Winch	Max. Pullforce: 160KN Max. Line Speed: 70m/min Rope Diameter: 28mm
Auxiliary Winch	Max. Pullforce: 50KN Max. Line Speed: 40m/min Rope Diameter: 16mm
Mast Tilting Angle	Sidewards Inclination: ±4° Forwards Inclination: 5°
Engine	Engine Type: 6BTA-C Rated Output: 133KW
Undercarriage	Width of Crawler: 800mm Towing Force: 245KN
Operating Weight	48.5T
Features Size L×W×H	Working Appearance Size: 7570×4000×18440 Transport Dimensions: 12902×3000×3200

. International well-known brand,high quaility and advanced design.

. Professional rotary drilling rig repairment and maintenance firm,fine workmanship,experienced .

. Repairment group.Repairment for Bauer,Soilmec,IMT,CASAGRANDE and CMV.

. Fair price and good tracing service.

. Drilling tools,spare parts and related assistand product manufactruer and agent. Fairly discount in following trade.

Xuzhou Reman Construction Machinery Remanufacture Co., Ltd.: Contact nameMandy Zhao
Chat Now; Phone86-516-83890365; AddressBlock B, CUMT Science & Technology Software Park, South Jiefang Road, Xuzhou, Jiangsu
