Product Details
| Place of Origin | Hong Kong, China | Brand Name | YIMER | |
| Model Number | emv645 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Name

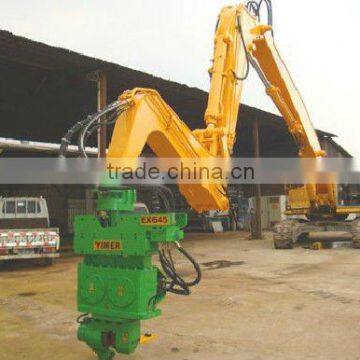

Easy Installation Excavator Hydraulic Vibro Rock Hammer
Product Introduction

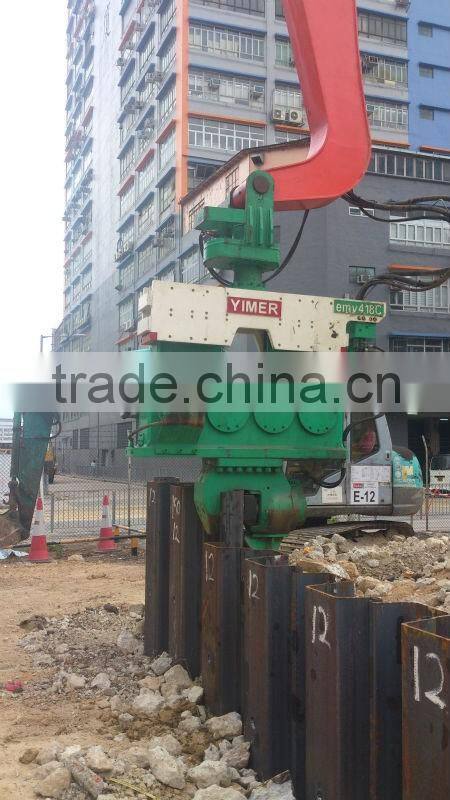

YIMER Hydraulic vibro hammer is a specialist in demolition & rock excavation with a wide range of carefully designed and robust breaker, attachments & crawler drills. It is especially suitable for municipal, bridges, cofferdam, buliding foundation etc.
Product Specification
| Model | emv28 | emv38 | emv645 | emv850 | emv955 | emv1270 | emv1480 | emv418C | |
| Eccentric moment | kgm | 3.3 | 5 | 6 | 8 | 9 | 12 | 14 | 18 |
| Max.centrifugal force | kn | 280 | 380 | 450 | 500 | 550 | 700 | 810 | 1100 |
| Max. frecuency | rpm | 2800 | 2500 | 2500 | 2300 | 2500 | 2300 | 2300 | 2300 |
| Max. amplitude without clamp | mm | 11 | 12.5 | 17.5 | 15 | 24.5 | 17 | 20.5 | 19 |
| Max. amplitude with clamp | mm | 8.5 | 9 | 13 | 11 | 17 | 13.5 | 14.5 | 14.5 |
| Max. line-pull | kn | 120 | 120 | 120 | 120 | 150 | 240 | 240 | 240 |
| Max. hydraulic power | kw | 63 | 71 | 83 | 83 | 150 | 240 | 187 | 260 |
| Max. operating pressure | bar | 350 | 350 | 350 | 350 | 350 | 350 | 340 | 340 |
| Max. oil flaw | 1/min | 110 | 170 | 200 | 200 | 200 | 300 | 330 | 330 |
| Dynamic weight without clamp | kg | 576 | 680 | 690 | 680 | 740 | 1400 | 1189 | 1125 |
| Dynamic weight with clamp | kg | 730 | 920 | 950 | 110 | 1050 | 1800 | 1754 | 1790 |
| Clamp force | kn | 500 | 500 | 600 | 600 | 700 | 1000 | 2929 | 1000 |
| Total weight | kg | 860 | 1280 | 1350 | 1450 | 1560 | 2600 | 2965 | 2965 |
| Transport weight | kg | 970 | 1350 | 1400 | 1550 | 1650 | 2900 | 3029 | 3065 |
| Dimensions | |||||||||
| A Length | mm | 1115 | 1115 | 1115 | 1394 | 1306 | 1650 | 1780 | 1780 |
| B Width | mm | 568.5 | 618.2 | 618.2 | 708.8 | 637 | 505 | 780 | 780 |
| C Throat width | mm | 310 | 332 | 332 | 332 | 332 | 350 | 340 | 340 |
| D Hammer height | mm | 718 | 980 | 980 | 718 | 1056 | 1108 | 1122 | 1122 |
| E Clamp height | mm | 365 | 497 | 497 | 497 | 497 | 718 | 718 | 718 |
| F Total height | mm | 1083 | 1477 | 1477 | 1215 | 1553 | 1826 | 2397 | 2397 |
Product Advantage
1. Selected raw material high quality heavy duty wear resistant steel .
2. High performance optimized hydraulic unit.
3. High energy & impact frequency, low maintenance, long using life .
4. our products are available in different specifications and dimensions and we offer these products at reasonable prices. we manufacture these products using high class raw materials using sophisticated technologies .
5. Professional tracing service,range from half to one year maintenance period.
Xuzhou Reman Construction Machinery Remanufacture Co., Ltd is located in xuzhou, the earliest place to research and development, production base of rotary drilling rigs in China. The company is specialized in selling new rotary drilling rigs, full -rotary drilling rigs and other piling machine; has complete industrial chain of researching and development, manufacturing and marketing various buckets, supply spare parts; also engages in evaluating and trading second-hand rotary drilling rigs.
Xuzhou Reman Construction Machinery Remanufacture Co., Ltd has many year's technical advantages, professional and experienced maintenance team; with moving maintenance shop--special vehicle for rigs field service; and advanced testing equipment, professional repairing workshop, spare parts warehouse, perfect testing methods and management system, all of these ensure the quality of our service and woke efficiency.

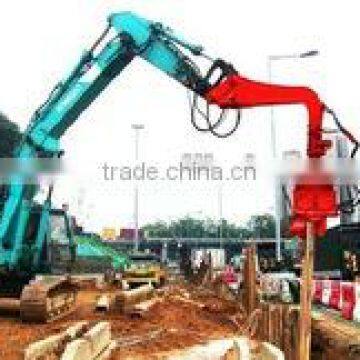

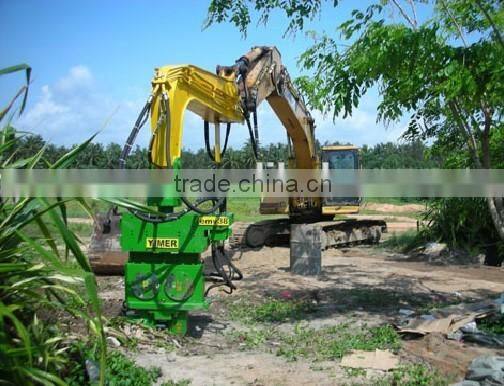

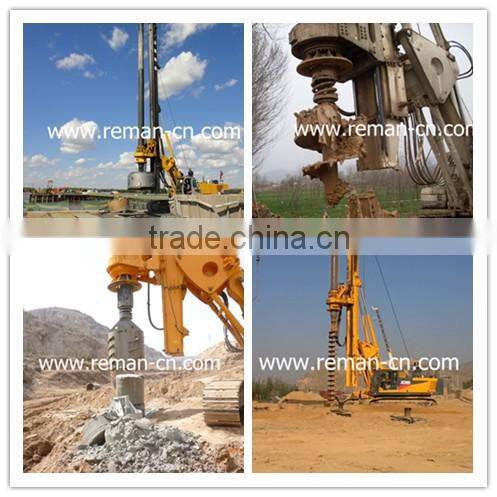

Construction Cases
Certifications
Standard exporting packing, suitable for shipment.
Weclome to visit our website:reman.en.china.cn!
