Product Details
| Place of Origin | Sichuan, China | Brand Name | XINQIYU | |
| Model Number | XQY-10 |
Product Description

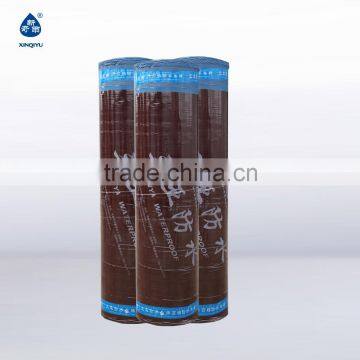

Non-asphalt self-adhesive Waterproof Membrane
Product overview:
Non-asphalt self-adhesive waterproof membrane is our latest R&D product. It’s self-adhesive and made of polymer through special procedure. It also has the advantages of strong adaptability to external conditions, anti-aging, long lifetime, etc..
Feature:
1 Non-asphalt materials, environment friendly
2 Strong bonding force, good bonding performance even in water or acid solution
3 Anti-aging, chemical resistance,resistance to soil erosion
4 Long lifetime
Application:
Apply to all kinds of underground waterproofing projects and non-exposed waterproofing projects
Construction process:
Technical Index:
Number | Pilot item | Parameters | ||||
P | PY | |||||
Ⅰ | Ⅱ | Ⅰ | Ⅱ | |||
1 | Tensile properties | Pull strength /(N/50mm)≥ | 150 | 200 | 400 | 600 |
Tensile elongation at maximum pull strength/%≥ | 30 | 25 | 30 | 40 | ||
2 | Tear strength ≥ | 12 | 25 | 180 | 300 | |
3 | Heat resistance | 70℃,2h No displacement, no flowing, no dripping | ||||
4 | Low-temperature bending /℃ | -20 | -25 | -20 | -25 | |
No crack | ||||||
5 | Watertightness | 0.4Mpa,120min Watertight | ||||
6 | Joint watertightness | 0.4Mpa,120min Watertight | ||||
7 | Peel strength between membranes /(N/mm) ≥ | Non-treatment | 1.0 | |||
Heat treatment | 1.0 | |||||
8 | Peel strength under water/(N/mm) ≥ | 1.0 | ||||
9 | Oil permeability/number of sheets ≤ | 2 | ||||
10 | Holding power /min ≥ | 15 | ||||
11 | Peel strength between cement mortar and membrane /(N/mm) ≥ | Non treatment | 2.0 | |||
Heat treatment | 1.5 | |||||
12 | Peel strength between membrane and cement mortar after being immersed in water /(N/mm) ≥ | 1.5 | ||||
13 | Thermal aging(80℃,168h) | Retention rate of tensile strength%≥ | 90 | |||
Elongation retention%≥ | 80 | |||||
Low temperature bending /℃ | -18 | -25 | -18 | -23 | ||
No crack | ||||||
14 | Thermal stability | Appearance | No drum, no sliding, no dripping | |||
Dimensional change /%≤ | 2.0 | |||||
15 | Peel strength to chemical corrosion of lapped membranes /(N/mm) | Acid treatment≥ | 1.0 | |||
Alkali treatment≥ | 1.0 | |||||
Salt treatment≥ | 1.0 | |||||
