Special Roofing Material, Non-asphalt Self-adhesive Waterproof Material

FOB Price

US$ 6.35 - 13.9 / Square Meter

1000 Square Meters(Min. Order)

Port SHANGHAI
Payment TermsT/T D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Sichuan, China		Brand Name	XINQIYU
Model Number	XQY-10

Product Description

Non-asphalt self-adhesive Waterproof Membrane

Product overview:

Non-asphalt self-adhesive waterproof membrane is our latest R&D product. It’s self-adhesive and made of polymer through special procedure. It also has the advantages of strong adaptability to external conditions, anti-aging, long lifetime, etc..

Feature:

1 Non-asphalt materials, environment friendly

2 Strong bonding force, good bonding performance even in water or acid solution

3 Anti-aging, chemical resistance,resistance to soil erosion

4 Long lifetime

Application:

Apply to all kinds of underground waterproofing projects and non-exposed waterproofing projects

Construction process:

Technical Index:

Number	Pilot item		Parameters
			P		PY
			Ⅰ	Ⅱ	Ⅰ	Ⅱ
1	Tensile properties	Pull strength /(N/50mm)≥	150	200	400	600
		Tensile elongation at maximum pull strength/%≥	30	25	30	40
2	Tear strength ≥		12	25	180	300
3	Heat resistance		70℃,2h No displacement, no flowing, no dripping
4	Low-temperature bending /℃		-20	-25	-20	-25
			No crack
5	Watertightness		0.4Mpa,120min Watertight
6	Joint watertightness		0.4Mpa,120min Watertight
7	Peel strength between membranes /(N/mm) ≥	Non-treatment	1.0
		Heat treatment	1.0
8	Peel strength under water/(N/mm) ≥		1.0
9	Oil permeability/number of sheets ≤		2
10	Holding power /min ≥		15
11	Peel strength between cement mortar and membrane /(N/mm) ≥	Non treatment	2.0
		Heat treatment	1.5
12	Peel strength between membrane and cement mortar after being immersed in water /(N/mm) ≥		1.5
13	Thermal aging(80℃,168h)	Retention rate of tensile strength%≥	90
		Elongation retention%≥	80
		Low temperature bending /℃	-18	-25	-18	-23
			No crack
14	Thermal stability	Appearance	No drum, no sliding, no dripping
		Dimensional change /%≤	2.0
15	Peel strength to chemical corrosion of lapped membranes /(N/mm)	Acid treatment≥	1.0
		Alkali treatment≥	1.0
		Salt treatment≥	1.0

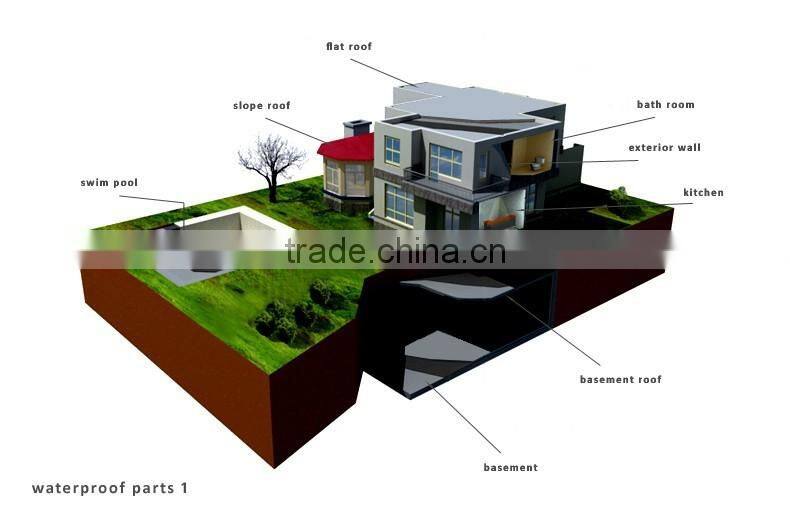

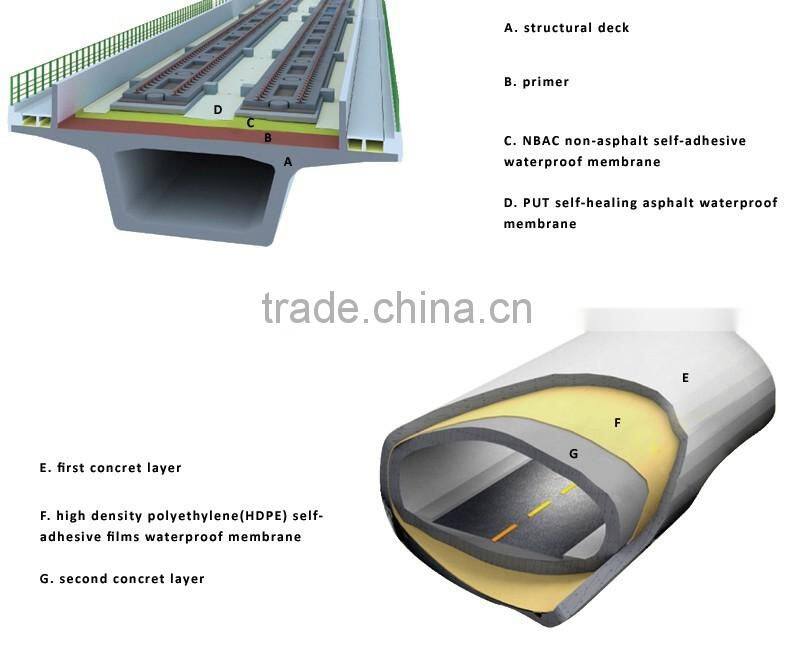

Waterproof Parts

Parts of Cooperation Projects and Companies

Our Factory

Our factories are located in Chengdu and Qionglai City, cover more than 100,000 m2 area, have more than 80 administrative staff, 300 workers and 45 development professionals

We have improved production equipments and detection system, products includes modified asphalt waterproof membrane, self-adhesive waterproof membrane, multi-color asphalt shingle, PVC and EVA polymer membranes, environmentally friendly waterproof coatings, annual output: 50,000,000 m2 waterproof membrane, 50,000 t waterproof coating, 10,000,000 m2 waterproof board.

Our Marketing Team

Our marketing center is located in high-tech district, Chengdu, includes international trade department, XINQIYU department, Chengdu direct sales department, asphalt shingle department, YUNYU department, and subordinate offices all over China. We annually achieve sales and service targets of arround RMB 500,000,000 all over the world.

Exhibitions

We systematitally attend exhibitions in the USA, India, Russia, South Africa, Germany, Vietnam, Brazil, Kazakhstan, Pakistan and China everyear, hope to see you there.
