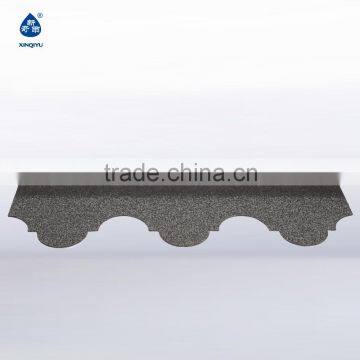

3 tab asphalt roof shingle lantern shape, waterproof material

Product overview:

Multi-color fiberglass asphalt shingles is a tile-shape waterproofing material. With fiberglass felt as matrix, the products are dipped with high-quality petroleum asphalt, covered with multi-color ceramic particles on one side and isolating materials on the other side. It has the advantages of lightness, various shapes, rich colors, firmness and durability, which make the house appearance more attractive and elegant.

Components:

Asphalt, fiberglass felt, multi-color ceramic particles

Specifications:

length——1000±3mm

width——333±3mm

weight——Approx.10kg/m²

Feature:

Self-contained adhesive tape

Application:

Cabin&concrete roof whose slope is between 10 degrees and 80 degrees (e.g. Villa, resort, townhouse )

Technical index:  GB/T20474-2006

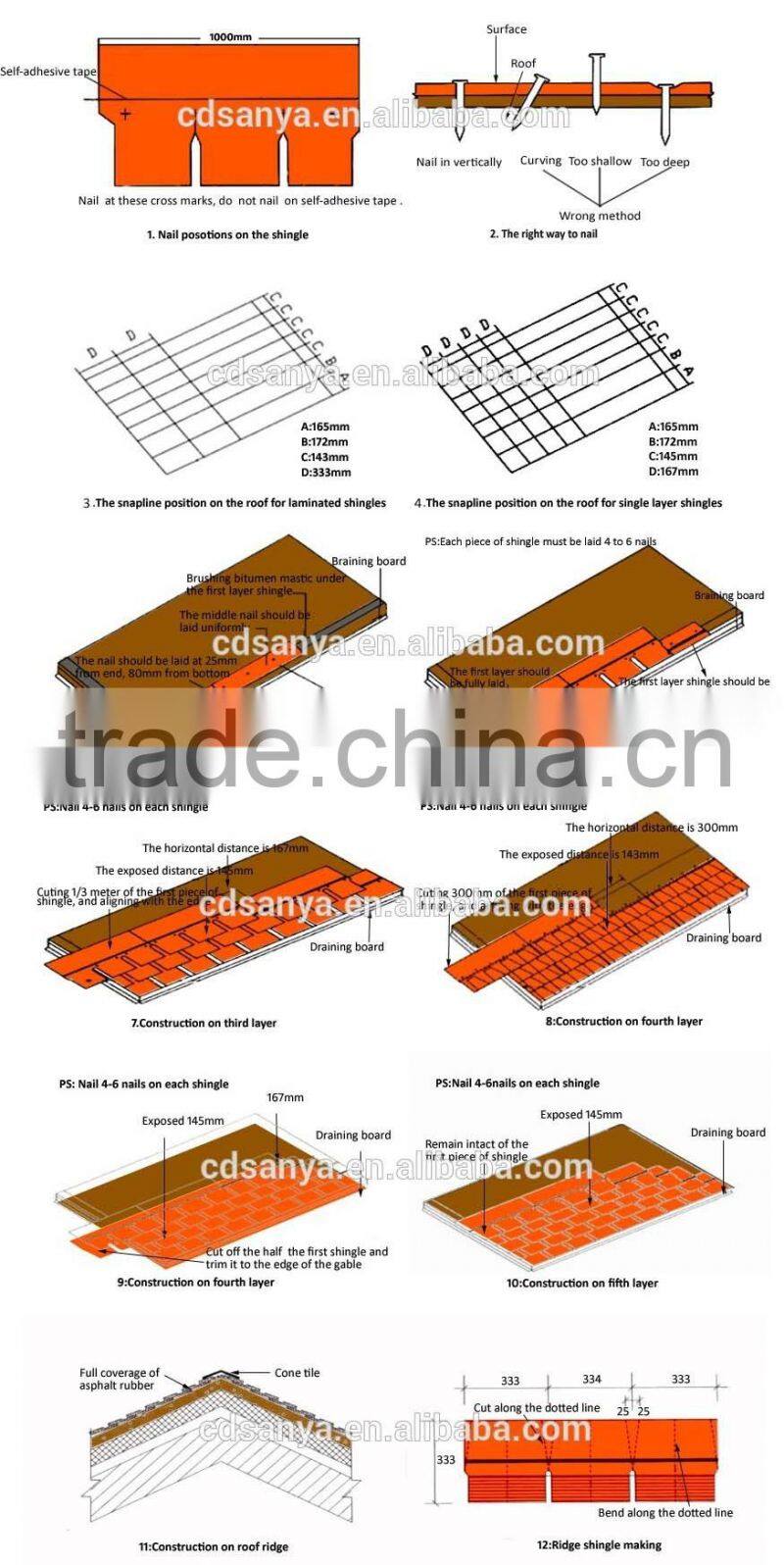

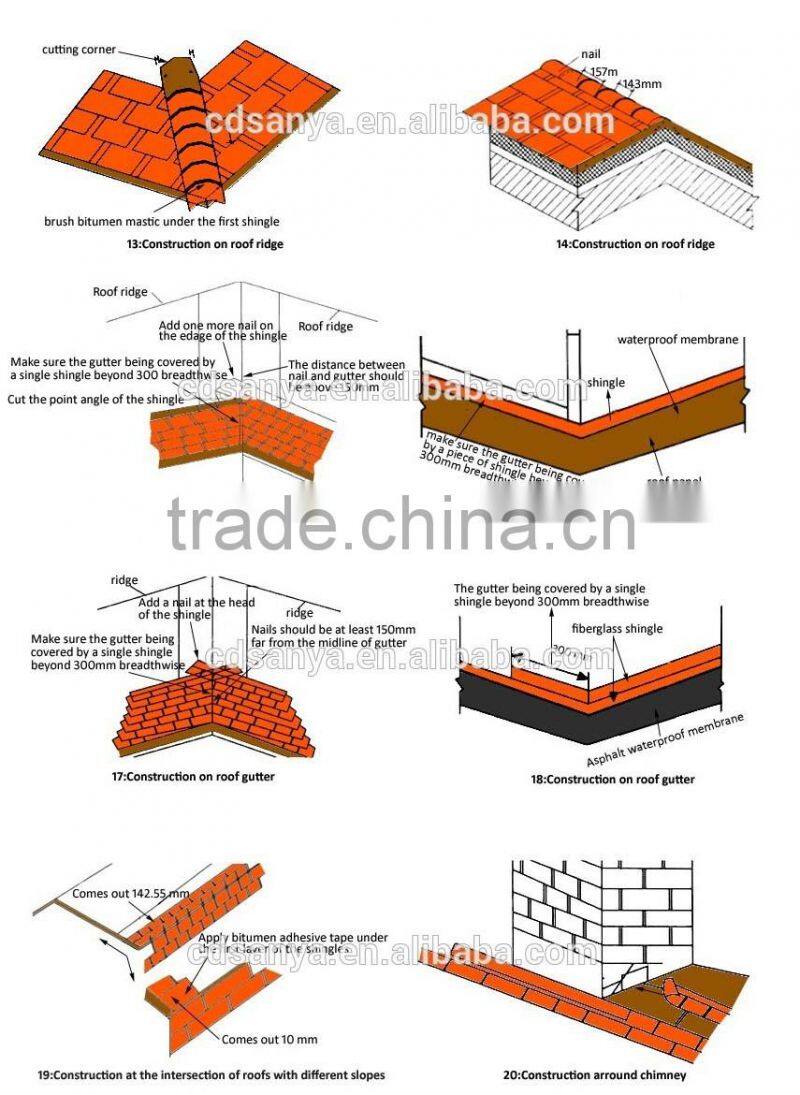

Construction notes

Waterproof Parts

Parts of  Cooperation Projects and Companies

Our Factory

Sichuan New Sanya Building Materials Technology Co.,Ltd. is an international comprehensive waterproof enterprise and the biggest manufacturer of waterproof materials in the mid-west of China, and our factory was audited by TÜV.

Our annual capacity amounts to 50 million square meters of waterproof membranes, 50000 tons of waterproof coating, 1.2million square meters of asphalt roof shingles. We possess complete production process and dozens of advanced full-automatic production lines of modified asphalt waterproof membranes, self-adhesive waterproof membranes, colorful asphalt roof shingles etc..

We are also the council member of China National Building Waterproof Association & 3A Credit Grade Unit of China National Building Waterproof Association.

Our Marketing Team

Our marketing center is located in high-tech district, Chengdu, includes international trade department, XINQIYU department, Chengdu direct sales department, asphalt shingle department, YUNYU department, and subordinate offices all over China. We annually achieve sales and service targets of arround RMB 500,000,000 all over the world.

Exhibitions

We systematitally attend exhibitions in the USA, India, Russia, South Africa, Germany, Vietnam, Brazil, Kazakhstan, Pakistan and China everyear, hope to see you there.
