Product overview

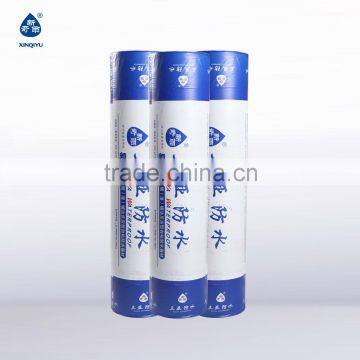

XQY Wet-laid Reactive Self-adhesive Waterproofing Membrane adopts the construction method: wet-laid and pre-laid, wet-laid means lay the membranes on base course with cement mortar; pre-laid means just laying  the membranes on base course, and then pouring the concrete on the membranes.

Feature:

(1) Safe application

(2) Easy to use

(3) Safe and perfect overlapping

(4) Ecological

(5) Under normal storing and transporting conditions, the storage time should be at least one year.

 Application:

Pre-laid waterproofing membranes are used for underground waterproofing projects.

Wet-laid waterproofing membranes are used for non-exposed waterproofing projects.

Notice:

(1) Different products stacked separately.

(2) Keep away from sun and rain, keep ventilation.

(3) Storing temperature under 45℃.

(4) Do not exceed 5 layers when the membranes flatted; and only single layer is allowed when the rolls are vertically placed.

(5) No inclining and side crushing during transportation, and cover the products with felt if necessary.

Technical index: Perform standard: GB/T23457-2009 wet-laid waterproofing membrane

Construction:

Required instruments

Construction tools preparation

Construction process:

1. Clean base course

2. Pre-laying the membrane for a approprite position

3. Roll the membrane from two ends towards middle point

4. Prepare cement paste

5. Brush cement paste on base course

6. Cut open isolating film of the membrane ( don’t tear open the parts of overlapped edges)

7. Tear off the isolating film and pave the membrane forwardly(A man behind use scraper blade to get ride of the air)

8. Tear off isolating film on overlapped parts of upper and lower surface

9. Press the overlapped parts tightly

Waterproof Parts

Parts of  Cooperation Projects and Companies

Our Factory

Our factories are located in Chengdu and Qionglai City, cover more than 100,000 m² area, have more than 80 administrative staff, 300 workers and 45 development professionals

We have improved production equipments and detection system, products includes modified asphalt waterproof membrane, self-adhesive waterproof membrane, multi-color asphalt shingle, PVC and EVA polymer membranes, environmentally friendly waterproof coatings, annual output: 50,000,000 m² of waterproof membrane, 50,000 t of waterproof coating, 10,000,000 m² of waterproof board.

Our Marketing Team

Our marketing center is located in high-tech district, Chengdu, includes international trade department, XINQIYU department, Chengdu direct sales department, asphalt shingle department, YUNYU department, and subordinate offices all over China. We annually achieve sales and service targets of around 100 million $ all over the world.

Exhibitions

We systematitally attend exhibitions in the USA, India, Russia, South Africa, Germany, Vietnam, Brazil, Kazakhstan, Pakistan and China everyear, hope to see you there.
