Home > Products > Single phase latching relay > RAMWAY DS902F Contact Current 60amp Relay,meter Inner Switch

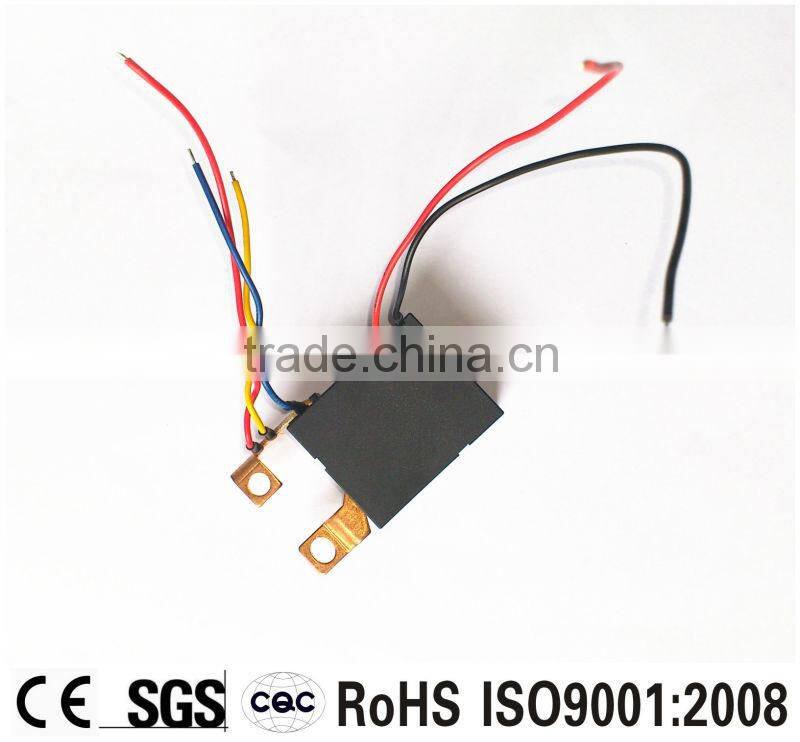

RAMWAY DS902F Contact Current 60amp Relay,meter Inner Switch

FOB Price

US$ 1.75 - 4.25 / Piece

400 Pieces(Min. Order)

Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangxi, China	Brand Name	RAMWAY
Model Number	DS902F 60A	Theory	Electromagnetic Relay
Usage	Protective	Size	Miniature
Protect Feature	Epoxy	Contact Load	High Power

Product Description

Contact Data
Contact current	60A
Contact form	1A&1B
Contact resistance	Max.2mΩ(12VDC 1A)
Max. switching current	60A 250VAC
Max. switching voltage	440VAC/110VDC
Max. switching power	15000VA
Electrical life	1X10⁴ OPS
Mechanical life	1X10⁶ OPS

Characteristics
Insulation resistance		1000MΩ(at 500VDC)
Dielectric strength	Between contact& coil	4000VAC 1min
	Between contacts	1500VAC 1min
Operation time		Max.20ms
Comeback time		Max.20ms
Ambient temp.		-40°C~+70°C
Humidity		98%RH,+ 40°C
Vibration resistance		10-55Hz,1.5mm(DA)
Termination		PCB&QC
Weight		42g

Other Data

1.Size(mm): 39x31.7x18

2.Space between pins (mm): 5

3.Space between holes(mm): 21

4.Coil polarity: Positive/ Negative

5.Coil type: Single coil(two pins)/ Double coil(three pins)

Advantages

1.Only need pulse excitation and can be single or double coils working.

2.Small volume and PCB installation.

3.Low power consumption and strong load capacity.

4.Security, reliable and long working life.

Note

1.Free SAMPLE for testing(1-5pcs);

2.Factory price, FOB Shenzhen;

3.Welding accessories according to clients requirement;

4.If clients have special requirement on size of other dimension, please sent us the details or drawings;

5.Delivery: within 30 days after receiving the payment(this is for MOQ, any problem or special requests, contact us).

6.Provide OEM and ODM service.

Usage

Be fit for Prepayment energy Meter and AMR system Combination switch, reactive power compensation devices and automatic control, road light control.

Plant of latching relay

Packing

With accessories

(The dimension of accessory could be customized as drawings)

e.g.1
