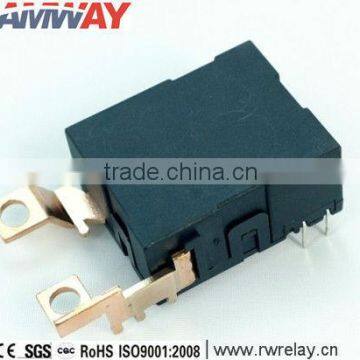

RAMWAY DS902F High Power 60A Relay 6v 9v 12v Meter Relay
- Shenzhen
- T/T
You May Like
-
DS902F-A-60A Wireless Remote Control Relay Switch
-
DS902F60A Single Contact Relay
-
RAMWAY DS907A Modular, 3phase Meter Relai, 2 Coils Latch Relays
-
RAMWAY DS907A Smart Home, 3phase Meter Relai, 2 Coils Latch Relays
-
RAMWAY DS907A 3 Phase Single Pole Relay
-
RAMWAY DS907A High Power 120a Contactor,9v 3 Phase Relay,9v Magnetic Relay
Product Details
| Place of Origin | Guangxi, China | Brand Name | RAMWAY | |
| Model Number | DS902F 60A | Theory | Electromagnetic Relay | |
| Usage | Protective | Size | Miniature | |
| Protect Feature | Epoxy | Contact Load | High Power |
Product Description
Contact Data | |
Contact current | 80A 250VAC |
Contact form | 1A&1B |
Contact resistance | Max.1mΩ(12VDC 1A) |
Max. switching current | 80A |
Max. switching voltage | 250VAC/110VDC |
Max. switching power | 15000VA |
Electrical life | 1X104 OPS |
Mechanical life | 1X106 OPS |
Characteristics | ||
Insulation resistance | 1000MΩ(at 500VDC) | |
Dielectric strength | Between contact& coil | 4000VAC 1min |
Between contacts | 1800VAC 1min | |
Operation time | Max.20ms | |
Comeback time | Max.20ms | |
Ambient temp. | -40°C~+70°C | |
Humidity | 98%RH,+ 40°C | |
Vibration resistance | 10-55Hz,1.5mm(DA) | |
Termination | PCB | |
Weight | 44g | |
Other Data
1.Size(mm): 39x31.7x18.3
2.Space between pins (mm): 5
3.Space between holes(mm): 21
4.Coil polarity: Positive/ Negative
5.Coil type: Single coil(two pins)/ Double coil(three pins)
Advantages
1.Only need pulse excitation and can be single or double coils working.
2.Small volume and PCB installation.
3.Low power consumption and strong load capacity.
4.Security, reliable and long working life.
Note
1.Free SAMPLE for testing(1-5pcs);
2.Factory price, FOB Shenzhen;
3.Welding accessories according to clients requirement;
4.If clients have special requirement on size of other dimension, please sent us the details or drawings;
5.Delivery: within 30 days after receiving the payment(this is for MOQ, any problem or special requests, contact us).
6.Provide OEM and ODM service.
Usage
Be fit for Prepayment energy Meter and AMR system Combination switch, reactive power compensation devices and automatic control.
Plant of latching relay
Packing
With accessories
(The dimension of accessory could be customized as drawings)
e.g.1
