Home > Products > Single phase latching relay > DS902F60A single contact relay

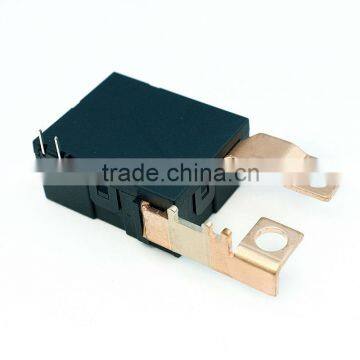

DS902F60A single contact relay
- Shenzhen
- T/T
You May Like
-
RAMWAY DS907A modular, 3phase meter relai, 2 coils latch relays
-
RAMWAY DS907A smart home, 3phase meter relai, 2 coils latch relays
-
RAMWAY DS907A 3 phase single pole relay
-
RAMWAY DS907A high power 120a contactor,9v 3 phase relay,9v magnetic relay
-
RAMWAY DS907A high power 120a contactor,9v 3 phase switch,9v electromagnetic relay
-
RAMWAY DS907A high power 120a contactor,9v 3 phase switch,12v electromagnetic relay
Product Details
| Place of Origin | Guangxi, China | Brand Name | RAMWAY | |
| Model Number | DS902F 60A | Theory | Other, Latching Relay | |
| Usage | Other, Energy Meter,AMR System, Energy Meter,AMR System | Size | Miniature | |
| Protect Feature | Epoxy | Contact Load | High Power |
Product Description
DS902F 60A single contact relay
Specification
Contact Data | |
Contact Current | 60A 250VAC |
Contact Form | 1A,1B |
Contact Resistance | Max 2mΩ(12VDC 1A) |
Max.Switching Current | 60A |
Max.Switching Voltage | 250 VAC/110 VDC |
Max.Switching Power | 15000VA |
Electrical Life | 1x104OPS |
Mechanical Life | 1x105OPS |
Characteristic | ||
Insulation resistance | 1000 MΩ(at 500 VDC) | |
Dielectric Strength | Between Contact &coil | 4000VAC 1min |
Between Contacts | 1500 VAC 1 min | |
Operation Time | Max.20ms | |
Comback Time | Max.20ms | |
Ambient Temp. | -40~+70°C | |
Humidity | 98%RH,+40°C | |
Vibration Resistance | 10-55HZ,1.5mm(DA) | |
Termination | PCB | |
Weight | 44g(without accessories) | |
Ordering info
DS902F Relay model | A | 60A | 9V | S | T |
A,B,C,D,E etc. | |||||
Connecting form | |||||
Terminal type | 60A,80A,100A | ||||
Coil voltage | 6,9,12,24VDC | ||||
Coil type | S=single,D=double | ||||
Contact material | D-AgCdO(12) T-AgSnO2 | ||||
Shipping&payment
1.MOQ:400 PCS
2.Samples:(1)1~5 PCS Free.
(2)samples freinght should be paid by buyers.
3.Packing detail:(1)400 PCS per carton
(2)carton size:40x35x35(cm)
(3)gross weight:26kg
4.Lead time:35 days after sample confirmed and deposit paid.
5.Delivery:FOB Shenzhen
6.Payment details:30% T/T deposit,balance paid by copy of B/L.West Union
