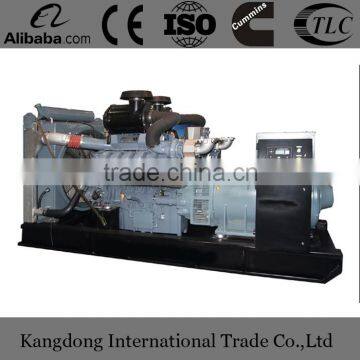

500kw diesel generator price powered by Man Quality Choice

Technical data

Genset Model

KH-500GF

Genset Output Power

500KW

Rated Voltage

400/230V

Frequency

50Hz

Power Factor

0.8(lagging)

Dimension (L×W×H) (mm)

3140*1380*1995

Net weight (kg)

3150

Diesel Engine

Brand

Man

Model

D2840LE203

Engine Structure

In line 10cylinder, 4 stroke, Turbo, Air/Air Cooling

Rotating Speed

1500r/min

Engine Cooling Method

Radiator for ambient temp 40^OC, belt driven cooling fan with cover

Governor System

Precise electrical governor system

Starting Method

24V DC, with Silicon commutating charging motor

Engine Filter System

Dry type air filter, fuel filter, oil filter, coolant filter

Displacement(L)

8.87

Compression Ratio

15.0:1

Bore×Stroke(mm)

127×140

100% load fuel consumption (L/h)

50

Lube capacity(L)

37

Alternator

Brand

Kaijieli(China-French joint venture Leory Somer technology)

Model

314BC

Excite Type

Brushless ,Self-exciting, AVR automatic voltage regulating

Connecting Type

3 Phase and 4 Wires

Steady Frequency Change

0~5%

No load voltage

≥95%~105%

Steady voltage

≤±1%

Insulation degree

H degree

Enclosure degree

IP21

The components of the genset

(1)   Diesel engine; (2) Generator; (3) Control panel

The Accessories

Wave pipe , curved pipe , muffler , accumulator and the connecting lines , shock-absorbing spacer , and data .

Control Panel

The control panel is standard control panel with AMF, with the display of voltage,current, frequency, water temperature, oil pressure. And the protection functions of charge fail, fail to start, low oil pressure, high temperature, over speed and emergency stop.
