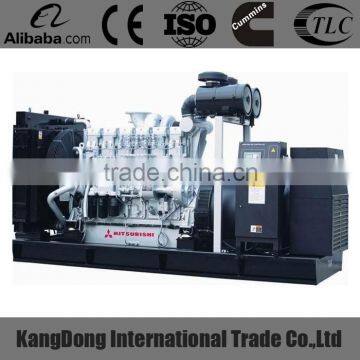

CE Approved Electrical Governor 480KW Mitsubishi Open Type Diesel Generator Set
Negotiable
/ Set
1 Set(Min. Order)
- Shanghai Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Open Type 400KVA Powered by Scania Engine Power Generating Set
-
Manufactory Supply 200KW Iveco Power Generator Sets
-
High Quality!! 600kw Industrial Generators Prices Powered by MAN
-
375 Kva Diesel Generator Sets Power by Scania,DC1259A10-33A
-
Brand New 250kW Diesel Generator Set With MAN Engine
-
CE Approved 250kw Scania Waterproof Type Diesel Generator Sets
Product Details
| Place of Origin | Jiangsu, China | Brand Name | KAITONG | |
| Model Number | KD-480GF | Output Type | AC Three Phase | |
| Speed | 1500RPM | Frequency | 50HZ, 50/60HZ | |
| Rated Power | 480KW | Rated Voltage | 400V | |
| Rated Current | 864A |
Product Description
CE Approved Electrical Governor 480KW Mitsubishi Open Type Diesel Generator Set :
| 1. Specification of genset | ||||||||
| Gensets model | KD-480GF | |||||||
| Prime power | 600KVA | |||||||
| Rated Voltage | 400/230 | |||||||
| Rated frequency(HZ) | 50 | |||||||
| Rated Speed | 1500rpm | |||||||
| Power Factor | 0.8(lagging) | |||||||
| Dimensions(mm) (L×W×H) | 3835x1560x1920 | |||||||
| Net Weight(kg) | 4800 | |||||||
| 2. Specification of diesel engine | ||||||||
| Engine brand | MITSUBISHI | |||||||
| Engine model | S6R-PTA | |||||||
| Number of Cylinders | 6 | |||||||
| Cylinder arrangement | Vertical in-line | |||||||
| Cycle | Four stroke | |||||||
| Aspiration | Turbocharged | |||||||
| Fuel System | PT type fuel pump | |||||||
| Bore×Stroke (mm×mm) | 170/180 | |||||||
| Displacement (Liter) | 18.9 | |||||||
| Compression Ratio | 14.3:1 | |||||||
| Speed Governor | Electronic | |||||||
| Cooling System | Forced Water Cooling Cycle | |||||||
| Total lubrication system capacity (L) | 24.51 | |||||||
| Fuel Consumption at 100% Load (L/h) | 125L/H | |||||||
| Starting Method | DC24V electrical starting | |||||||
| 3. Specification of alternator | ||||||||
| Alternator brand | Stamford | |||||||
| Alternator model | HCI544C | |||||||
| Number of Phase | 3 | |||||||
| Connecting Type | 3 Phase and 4 Wires | |||||||
| Number of Bearing | 1 | |||||||
| Protection Grade | IP23 | |||||||
| Altitude | ≤1000m | |||||||
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire | |||||||
| Insulation Class | H | |||||||
| Telephone Influence Factor (TIF) | ≤50 | |||||||
| THF | ≤2% | |||||||
| Voltage Regulation, Steady State | ≤±1% | |||||||
| Transient State Voltage | ≤-15%~+20% | |||||||
| 4. The components of the generator set | ||||||||
| 1) MITSUBISHI engine 2)Stamford alternator 3)Automatic Transfer Switch control panel | ||||||||
| 5.General Features: | ||||||||
| MITSUBISHI Engine | ||||||||
| Radiator 40°C max, fans are driven by Belt, with safety guard | ||||||||
| 12V charger alternator | ||||||||
| Stamford Alternator | ||||||||
| Absorber | ||||||||
| Dry type air filter, fuel filter, oil filter | ||||||||
| Main line circuit breaker | ||||||||
| Standard control panel | ||||||||
| Ripple flex exhaust pipe, exhaust siphone, flange, muffler | ||||||||
| 12V*2 batteries, rack and cable | ||||||||
| User manual | ||||||||
| 6. Specification of control Panel | ||||||||
| The control panel is ATS control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure,high water temperature,over speed,over load protection function. | ||||||||
| The features of controller: | ||||||||
| GU620A is a new generation Automatic control module for single Genset, which adopts bran-new outline configuration, focus on the requirements of customers, and perfectly improves the performance of controller. It fully meets the auto control requirements of different kinds of Genset for user or special assembly factory. | ||||||||
| The module also monitors and protects the engine, indicating operational status, fault conditions and metering on the front panel LCD and LED’s. | ||||||||
