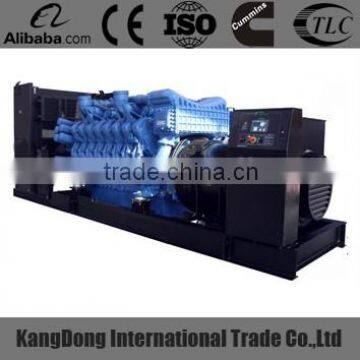

1800KVA diesel generator set powered by MTU
- 200 Set / Sets per Month
- Shanghai or other port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
CE approved 800kva mtu engine generator set
-
Hot sale! Germany MTU Engine 200KW DIESEL Generator /Genset Quality Choice Most Popular
-
CE approved 1000kva mtu engine container type generator set
-
2275KVA Open Type Diesel Generator Set powered by germany made engine
-
Silent type Original container proof 1200KW diesel generator set powered by MTU
-
CE Approved 1820KW MTU Open Type diesel generator set 1820KW
Product Details
Place of Origin | Jiangsu, China | Brand Name | KAIHUA | |
Model Number | KD-1440GF | Output Type | AC Three Phase | |
Speed | 1500RPM | Frequency | 50HZ | |
Rated Power | 1800KVA | Rated Voltage | 400V/230V | |
Rated Current | 2592A |
Product Description
1800KVA diesel generator set powered by MTU
Safety
Design, production and testing of the generator sets comply with EU CE safety standard;
Equipped with circuit breaker to avoid possible electric risk at re- startup when engine stops in emergency.
The controller has a historical operation recording function for troubleshooting and inspection.
Powerful Engines
Adopts world-famous engines,with low noise and low emission.
Rugged structure ensures lowest vibration.
Common rail system: (for some models) significantly lowers the combustion temperature, and also leads to cleaner exhaust.
For the turbocharged machines, the carbon dioxide (CO2) emission is reduced.
Control System
Control System
Micro-processor cored digital system.
Multiple languages, automatic control.
Connected with the mains through ATS, which can help realize automatic transfer between the mains and the generators. Also, multiple generators can be paralleled for bigger power needs.
1. Specification of Genset | ||||||
Genset Model | KD-1440GF | |||||
Prime Power(KVA) | 1800 | |||||
Rated Voltage (V) | 400 | |||||
Rated Current (A) | 2592 | |||||
Rated Frequency(Hz) | 50 | |||||
Power Factor(COSφ) | 0.8 | |||||
Rated Speed | 1500rpm | |||||
Dimensions (L×W×H) (mm) | 6150×2150×2400 | |||||
Genset Weight(kg) | 14000 | |||||
2. Specification of Engine | ||||||
Engine Brand | MTU | |||||
Engine Model | 12V4000G63 | |||||
Number of Cylinders | 12 | |||||
Cylinder Arrangement | "V" Type | |||||
Cycle | Four stroke | |||||
Air intake System | Turbo, Water/Air Cooling | |||||
Fuel System | Electronic Fuel Injection System | |||||
Bore×Stroke (mm) | 170x 210 | |||||
Displacement (L) | 57.2 | |||||
Compression Ratio | 16.5:1 | |||||
Governor Type | ADEC | |||||
Cooling System | Water Cooled | |||||
Total lubrication System Capacity (L) | 260 | |||||
Fuel Consumption at 100% Load(g/kwh) | 193 | |||||
Starting Method | DC24V electrical starting | |||||
3. Specification of Alternator | ||||||
Alternator Brand | Marathon | |||||
Alternator Model | MX-1540-4 | |||||
Excitation | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire | |||||
Number of Phase | 3 | |||||
Connecting Type | 3 Phase and 4 Wires | |||||
Number of Bearing | 1 | |||||
Power Factor | 0.8 | |||||
Protection Grade | IP23 | |||||
Altitude | ≤1000m | |||||
Insulation Class, Temperature Rise | H | |||||
Telephone Influence Factor (TIF) | ≤50 | |||||
THF | ≤2% | |||||
Voltage Regulation, Steady State | ≤±1% | |||||
Transient State Voltage | ≤-15%~+20% | |||||
3.Specification of Control Module (DeepSea) | ||||||
• 9 configurable inputs | ||||||
• 8 configurable outputs | ||||||
• Unbalanced load protection | ||||||
• Charge alternator failure alarm | ||||||
• LED and LCD alarm indication | ||||||
• 32 x 64 pixel ratio display for clarity | ||||||
• Fuel usage monitor and low fuel alarms | ||||||
• CAN and Magnetic Pick-up/Alt. sensing | ||||||
• Support for up to three remote display units | ||||||
• User selectable RS232 and RS485 communications | ||||||
• Remote SCADA monitoring via DSE Configuration Suite PC software | ||||||
• Set maintenance periods can be configured to maintain optimum engine performance | ||||||
• PLC editor allows user configurable functions to meet specific application requirement | ||||||
• The DSE7320 is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single, diesel generator set applications. |
Warranty
warranty is according to our standard conditions:12 months or 1,000 running hours, subject to the earlier one (artificial damage to be an exception).
Service
1. Before-sale Service:
We provide detailed product technical parameters for equipment choosing and system designing.
2. Service quality assurance:
Our sale staffs are all experience and professional,we can provide the most proper system design and optimized equipment for the customers.
3. After sale maintenance service:
We create files for end user and provide them follow-up service,regular return visit and permanent maintenance, We have
distributors all over World that support after sale service.
4. Spare parts supply:
We provide all kinds of spare parts and technical support.
5. Main overhaul or maintenance service:
We provide perennial major overhaul and maintenance service.
A. Exporting plywood case for optional choose if needs packaging
B. Delivery Time Detail: within 10 days to 28 days (2 or 4 weeks)
Jiangsu Kangdong International Trade Co., Ltd is a professional leading Company of diesel gensets in China, We mainly supply:
Engine: Alternator: Control System:
Cummins (USA ) Original and OEM stamford Deep sea
Deutz Engine(Germany) Marathon Harson
Volvo Engine(Sweden), Engga Smartgen
Doosan Engine(Korea) , ComAp
Perkins(UK) MTU(Germany)
Weichai Engine(China),
Shanghai Engine (China),
Yuchai Engine (China)
1.Q:What's the power range of your generator sets?
A:The main products are ranging from 5KW to 2500KW.
2.Q:How many types of the generator sets do you have?
A:Diesel,gasoline,natural gas,marine,water pump,high-voltage generator sets,etc.
3.Q:Where is your factory located?
A: Our factory is in Taizhou city, Jiangsu Province, China.
It's near Shanghai & Ningbo port.
4.Q:What is the material of your products?
A: Iron,Steel,plastic,etc.
5.Q:How about quality control in your factory?
A:"Quality is the life".
We are always paying great attentions to
quality controlling from the beginning to the end. Every piece of goods is tested strictly one by one before packing.
We keep goods to meet the standard of CE,CCC, ISO9001:2000.
