Home > Products > Powered by Famous Brands > High Price Ratio 450KVA Scania Diesel Generating Set

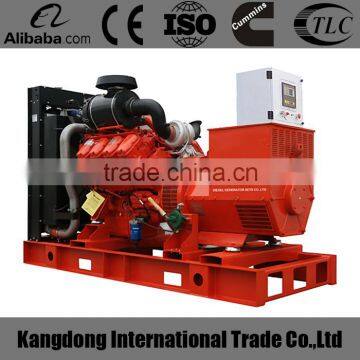

High Price Ratio 450KVA Scania Diesel Generating Set

FOB Price

US$ 1 - 99,999 / Set

1 Set(Min. Order)

Port Shanghai or other port
Payment TermsT/T L/C Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	KANGDONG
Model Number	KD-360GF	Output Type	AC Three Phase
Speed	1500RPM	Frequency	50HZ
Rated Power	360KW	Rated Voltage	380/220V
Rated Current	684A

Product Description

High price ratio 450KVA Scania diesel generating set

Scania diesel engine,focusing on low running cost,features as follows,firstly,the period of changing oil is 60% longer than others,it can be 400 hours.Secondly,high efficiency centrifugal oil filter,only need to maintenance in normal condition,no need to change.Thirdly,lower fuel consumption,save cost of diesel fuel.Besides,its high reliability makes it extend its overhaul life.These features make it have adaptive in truck,bus,diesel generator sets,and so on.It is well-known as sweden royal engine power.

1. Specification of genset
Gensets Model				KD-360GF
Prime Power				360KW/450KVA
Standby Power				396KW/495KVA
Rated Voltage(V)				380/220
Rated Frequency(HZ)				50
Rated Speed (rpm)				1500
Power Factor(COS)				0.8(lagging)
Prime Power(PRP):Prime power is available for an unlimited number of annual hours in variable load application,in accordance with GB/T2820-97;A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
Standby Power Rating(ESP):The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption.No overload,utility parallel or negotiated outage operation capability is available at this rating.
2. Specification of diesel engine
Engine brand				Scania
Engine model				DC12 59A 10-34A
Number of Cylinders				6
Cylinder arrangement				Vertical in-line
Cycle				Four stroke
Aspiration				Turbocharged and Air/Air Cooling
Fuel System				Electronic Injection
Bore×Stroke (mm×mm)				127x154
Displacement (Liter)				11.7
Compression Ratio				16.0:1
Speed Governor				EMS
Cooling System				Forced Water Cooling Cycle
Overload capacity				110%
Fuel Consumption at 100% Load (g/kwh)				201
Starting Method				DC24V electrical starting
3. Specification of alternator
Alternator brand				Stamford
Orgin				WuXi
Alternator model				HCI444F
Number of Phase				3
Connecting Type				3 Phase and 4 Wires
Number of Bearing				1
Protection Grade				IP23
Altitude				≤1000m
Exciter Type				Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class				H
Telephone Influence Factor (TIF)				≤50
THF				≤2%
Voltage Regulation, Steady State				≤±1%
Transient State Voltage				≤-15%~+20%
4. Specification of control Panel
The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure,high water temperature,over speed,over load protection function.
The features of control Panel:
The control panel is a new generation Automatic control module for single Genset, which adopts bran-new outline configuration, focus on the requirements of customers, and perfectly improves the performance of controller. It fully meets the auto control requirements of different kinds of Genset for user or special assembly factory.
