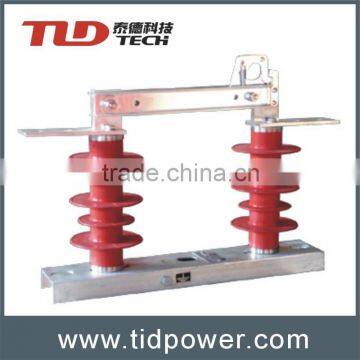

Outdoor Disconnect Switch
You May Like
Product Details
| Place of Origin | Shaanxi, China | Brand Name | TID-Tech |
Product Description
Specifications:
1.Max.current:900A.Max.voltage:12KV
2.Silicone rubber insulator.
3.11KV 12KV ,900A outdoor insolator 12KV 900A Silicone Rubber Insulator Outdoor insulator /AC disconnect switch
Description:
Outdoor AC Isolator Switch is used to open and close circuit with voltage but no-load 50/60HZ, 12(11)kV power system. The anti-pollution type can be used in the serious pollution area.
Ambient Condition:
• Altitude:≤3000m
•Ambient temperature:+30°C ~-40°C
•Wind speed:≤35m/s
•Earthquake intensity:≤8 degree
•Air pollution :IV
•Ice thickness:≤10mm
Technical Specification:
NO | Item | Unit | Parameter | ||
1 | Rated Voltage | kV | 12 | 12 | |
2 | Rated current | A | 630 | 900 | |
3 | Rated power frequency | Hz | 50 | 50 | |
4 | Rated peak withstand current | kA | 63 | 63 | |
5 | Rated short-time withstand current (3S) | kA | 25 | 25 | |
6 | Rated heat steady current | kA | 25/3S | 25/3S | |
7 | Main loop resistance | μΩ | 630A≤62 | 900A≤46 | |
8 | 1min(dry) power frequency withstand voltage | Phase to phase/ | kV | 54/61.5 | 54/61.5 |
9 | 1min(wet) power frequency withstand voltage | 38.5/46.5 | 38.5/46.5 | ||
10 | Lightning impulse withstand voltage(BIL) | 110 | 110 | ||
11 | Mechanical life | Times | 2000 | 2000 | |
11kv insulator switch 11kv disconnect switch High votage disconnect switc 12kv 900A outdoor dsconnector switch
