Home > Products > Household AC contactor > 40Amps 1Pole Home Use 220V Coil AC Contactor
40Amps 1Pole Home Use 220V Coil AC Contactor
- 10000 Piece / Pieces per Month
- Shanghai or Ningbo
- T/T Credit Card
You May Like
-
CT series household AC contactor with powerful functions in China factory
-
AC230V 40A 2 Poles Household Modular AC Contactor
-
2NO madular home use contactors 40a 230v 50hz power saver
-
2NO 2NC 4P AC Power operated brands of electric contactors 40a
-
Best selling hot chinese products 40a contactors 3 poles
-
The original product in Aissmy 380V 1P household AC 25A 50/60Hz NO NC modular contactor
Product Details
| Place of Origin | Zhejiang, China | Brand Name | OEM/Aissmy | |
| Model Number | CT4010 1NO | Electricity Type | AC | |
| Number of Pole | 1 | Phase | 2 | |
| Main Circuit Rating Voltage | Other, 220V | Main Circuit Rating Current | Other, 40A |
Product Description
40Amps 1Pole Home Use 220V Coil AC Contactor
(16A/20A/25A/40A/63A/100A For you to choose)
CT contactors can be used to remote control applications in alternative networks:
1. lighting, heating, ventilation, roller blinds, sanitary hot water
2. mechanical ventilation system,etc.
3. load-shedding of non-priority circuits
CT contactors are available in two versions:
Contactors without manually-operated
Contactors with manually-operated
The breadth of the CT contactor range satisfies most application cases.
CT contactors can be combined with auxiliary control, protection and indication functions.

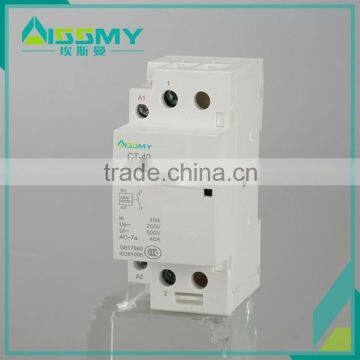

Photo Show:
Technical Parameter:
| Power circuit | |
| Voltage rating (Ue) 1P/2P | 250V AC |
| 3P/4P | 400V AC |
| Frequency | 50Hz or 60Hz |
| Endurance (O-C) | |
| Electrical | 100,000 cycles |
| Maximum number of switching operation a day | 100 |
| Additional charateristics | |
| Insulation voltage (Ui) | 500V AC |
| Pollution degree | 2 |
| Rated impulse withstand voltage (Uimp) | 2.5KV (4KV for 12/24/48V AC) |
| Degree of protection (IEC 60529) | Device only IP20 |
| Device in modular enclosure IP40 | |
| Operating temperature | -5 ℃to+60 ℃ |
| Storage temperature | -40 ℃to+70 ℃ |
| Tropicalization (IEC 60068-1) | Treatment 2 (relative humidity 95% at 55℃) |
| ELSV compliance (Extra Low Safety Voltage) for 12/24/48vac versions | |
| The product control conforms to the SELV (safety extra low voltage) requirements | |
Note: In the case of contactor mounting in a enclosure for which the interior temperature is in range between 50 ℃ and 60 ℃, it is necessary to use a spacer, between each contactor.
Dimensions(mm):
If you want to ask any question please don’t hesitate to ask
We will respond Asap.
Mob/Whatsapp/ WeChat: 0086 15869498786
Skype: Cindyelectric
QQ: 770965655
